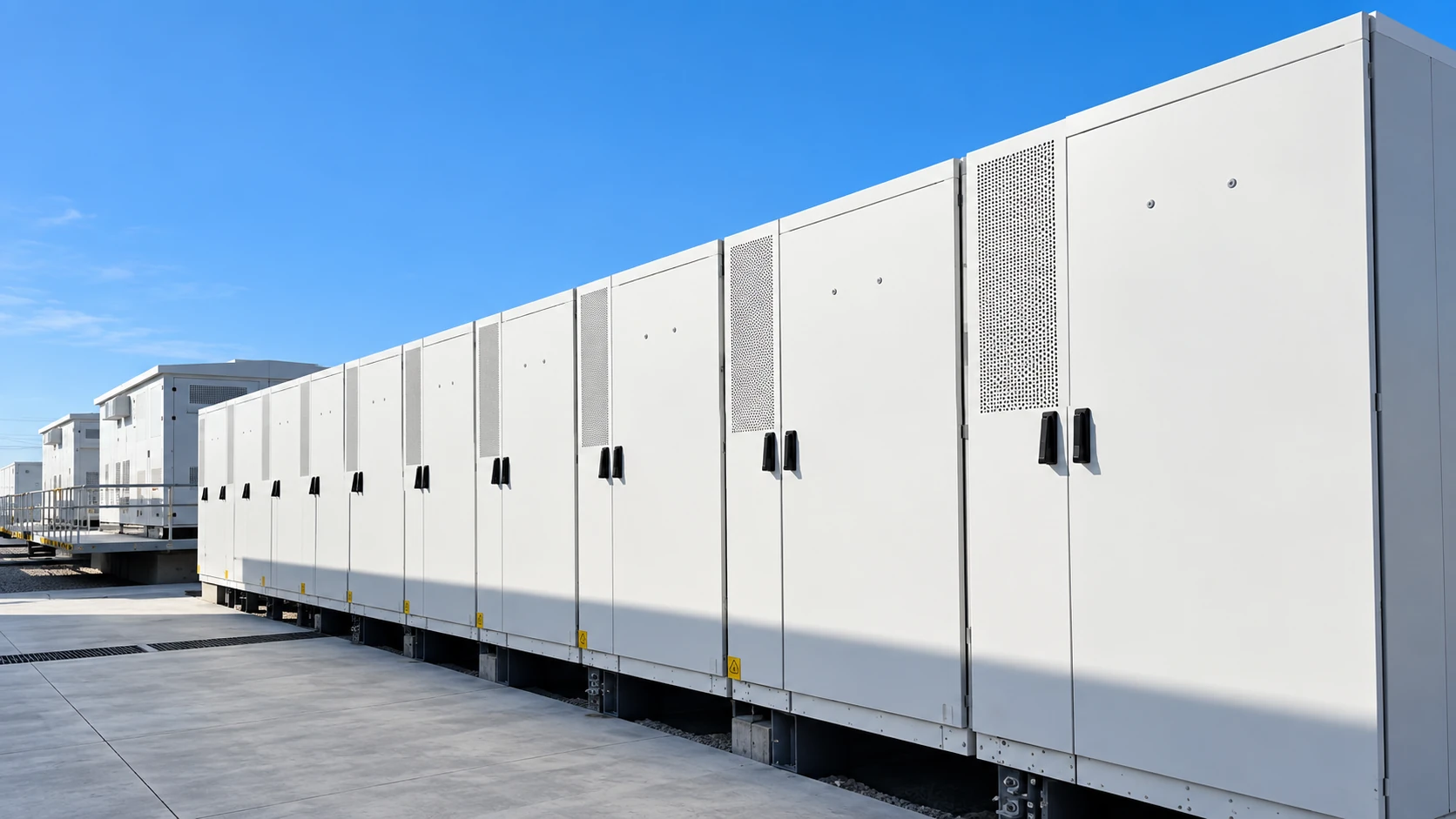

BESS Enclosure Hinges for Access Doors
Select hinge families for battery energy storage enclosure doors and service panels according to the access location, door construction and maintenance requirement.
Compare existing HSP hinge options for retained doors, removable panels and fabricated enclosure structures before requesting a quotation.
Start With the BESS Access Point
Depending on the BESS architecture, individual compartments can use different door and panel arrangements. Typical access points may include the following locations.
Battery Compartment Access
Access to battery modules or rack areas may use a retained door or a removable panel.
- Complete moving weight
- Opening and adjacent-equipment clearance
- Latch and seal interface where used
- Panel removal and handling space
Power & Control Access
Controls, power electronics, monitoring equipment or electrical service areas may need repeated access.
- Door-mounted equipment where present
- Internal and opening clearance
- Cable or bonding movement where applicable
- Repeatable access for service work
Cooling / Service Access
Cooling equipment, filters, fans or coolant-service components may require routine maintenance where they are part of the enclosure.
- Service frequency
- Tool and technician envelope
- Panel removal requirement
- Repeatable closing position
Removable Inspection / Maintenance Panel
A panel intended for complete removal needs a clear handling route as well as a suitable hinge family.
- Panel size and weight
- Removal direction and handing
- Vertical lift clearance
- Safe handling space

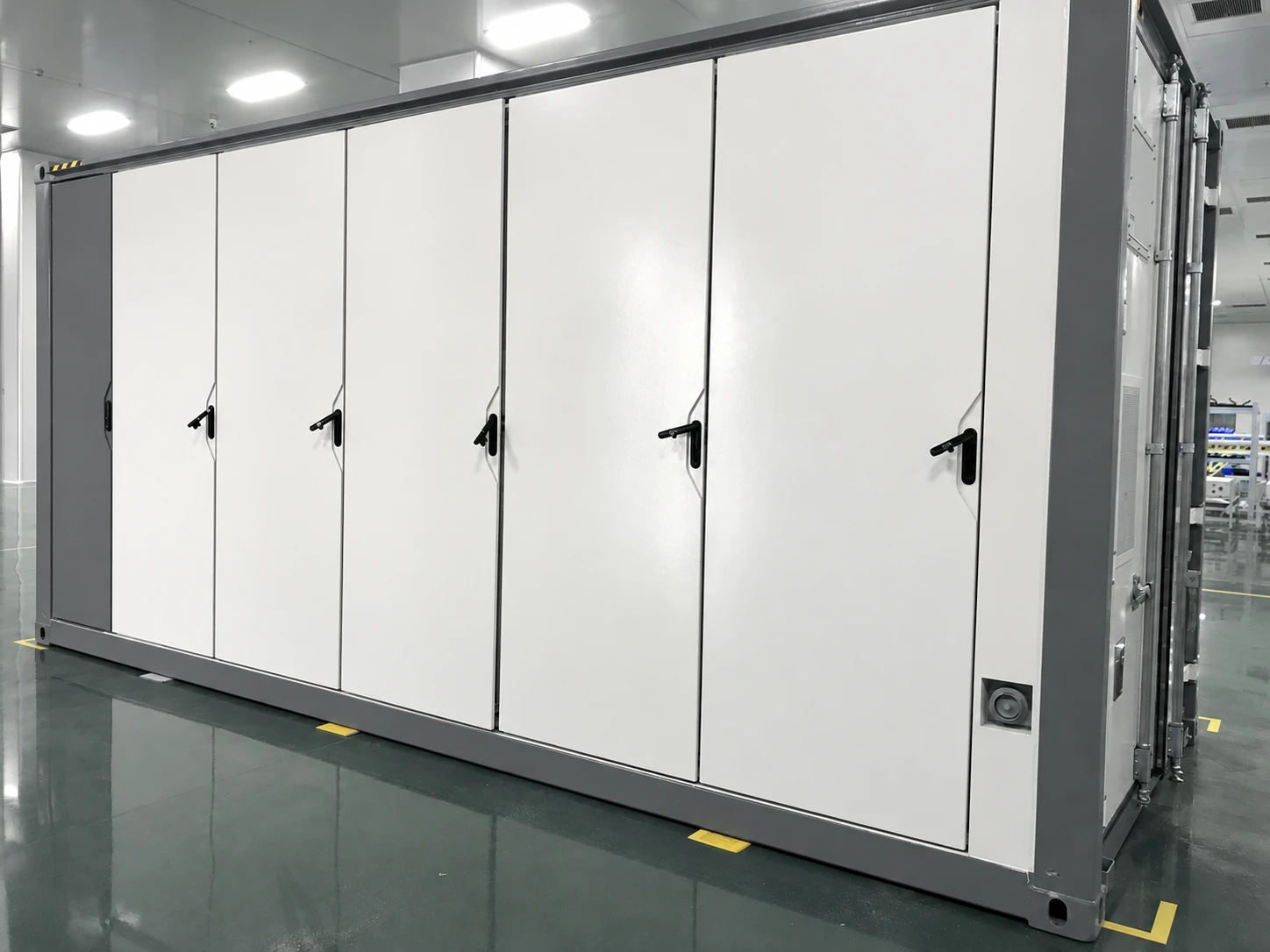

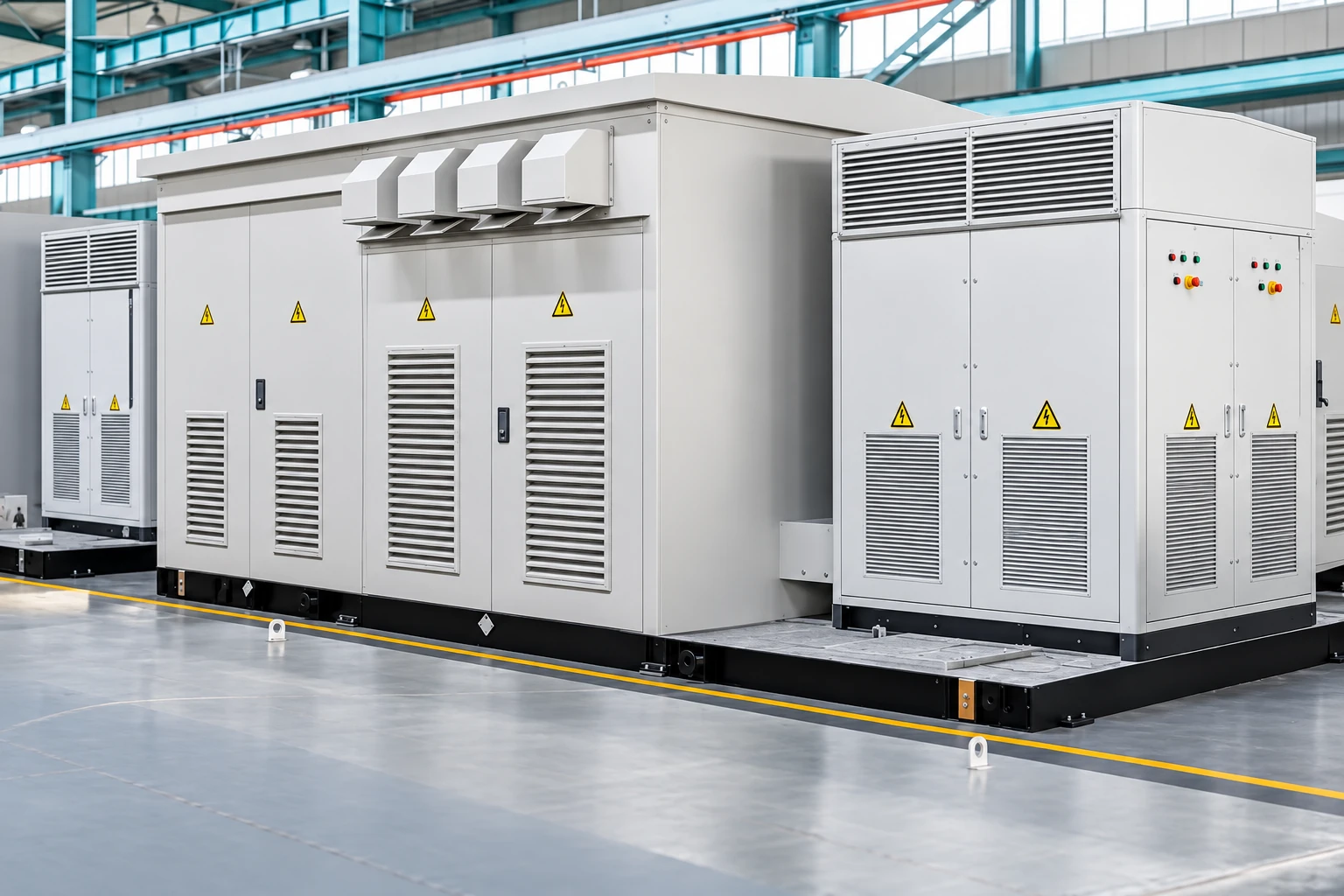

One BESS Enclosure Can Have Different Access Requirements
A single BESS enclosure can combine openings with different door sizes, moving loads and maintenance duties.
Assess each opening separately by its clearance, service frequency and removal requirement instead of assigning one hinge route to the complete enclosure.
Match the BESS Access Point to the Door Behavior
The BESS access point defines the service requirement; the door behavior then determines which HSP hinge family should be compared first.
Battery Compartment Access
Retained access door
Check complete moving weight, door width, center of gravity, adjacent battery rack clearance and the seal / latch interface where used.
Heavy-Duty / Concealed
Compare the mounting envelope and door load before choosing the starting family.
Battery Compartment Access
Removable maintenance panel
Check panel weight, removal direction, handing, lift clearance and safe handling space.
Lift-Off
Use the actual panel removal path as part of the comparison.
Power & Control Access
Retained frequent-access door
Check the internal envelope, opening sweep, mounted equipment, moving connections where applicable and repeated service access.
Concealed / Industrial Hinges
Consider Heavy-Duty where door-mounted equipment significantly increases the moving load.
Cooling / Service Access
Door remains attached during service
Check the complete moving assembly, louvers or vents, technician and tool clearance, and repeated opening.
Cooling / Service Access
Panel must be removed completely
Check removal direction, lift clearance, adjacent equipment clearance and the service envelope.
Lift-Off
Confirm a clear removal and handling path.
Fabrication / Mounting Route
Fabricated steel door with welded attachment
If welded hinge attachment is part of the BESS enclosure production architecture, check the fabrication interface.
Weld-On
Check base material, weld access, common hinge axis, distortion and finish sequence.
HSP Hinge Routes for BESS Enclosure Access
The BESS access point defines the service requirement; the door behavior then determines which HSP hinge family should be compared first.
The product photos show existing HSP hinge designs for comparison. Final suitability depends on the actual enclosure door, mounting interface and project requirements.
Heavy-Duty Hinges
Representative product shown: HG02-097
Typical BESS route: Large retained battery or cooling-service access door
Starting point for: Larger retained BESS access doors or a moving assembly with higher load moment.
- Complete moving weight
- Door width and center of gravity
- Hinge spacing
- Frame reinforcement
Lift-Off Hinges
Representative product shown: HG02-019
Typical BESS route: Removable battery or maintenance panel
Starting point for: A service door or maintenance panel that must be removed completely.
- Handing and removal direction
- Vertical lift clearance
- Panel weight and handling
- Adjacent equipment clearance
Concealed Hinges
Representative product shown: HG02-060
Typical BESS route: Protected power / control access door
Starting point for: A retained door where reduced external projection or protected mounting is required.
- Internal mounting envelope
- Door and frame return
- Opening sweep
- Service clearance
Weld-On Hinges
Representative product shown: HG02-052
Typical BESS route: Fabricated steel enclosure door using welded attachment
Starting point for: A fabricated steel enclosure where welded attachment matches the production architecture.
- Base material
- Weld access
- Common hinge axis
- Distortion and finish sequence

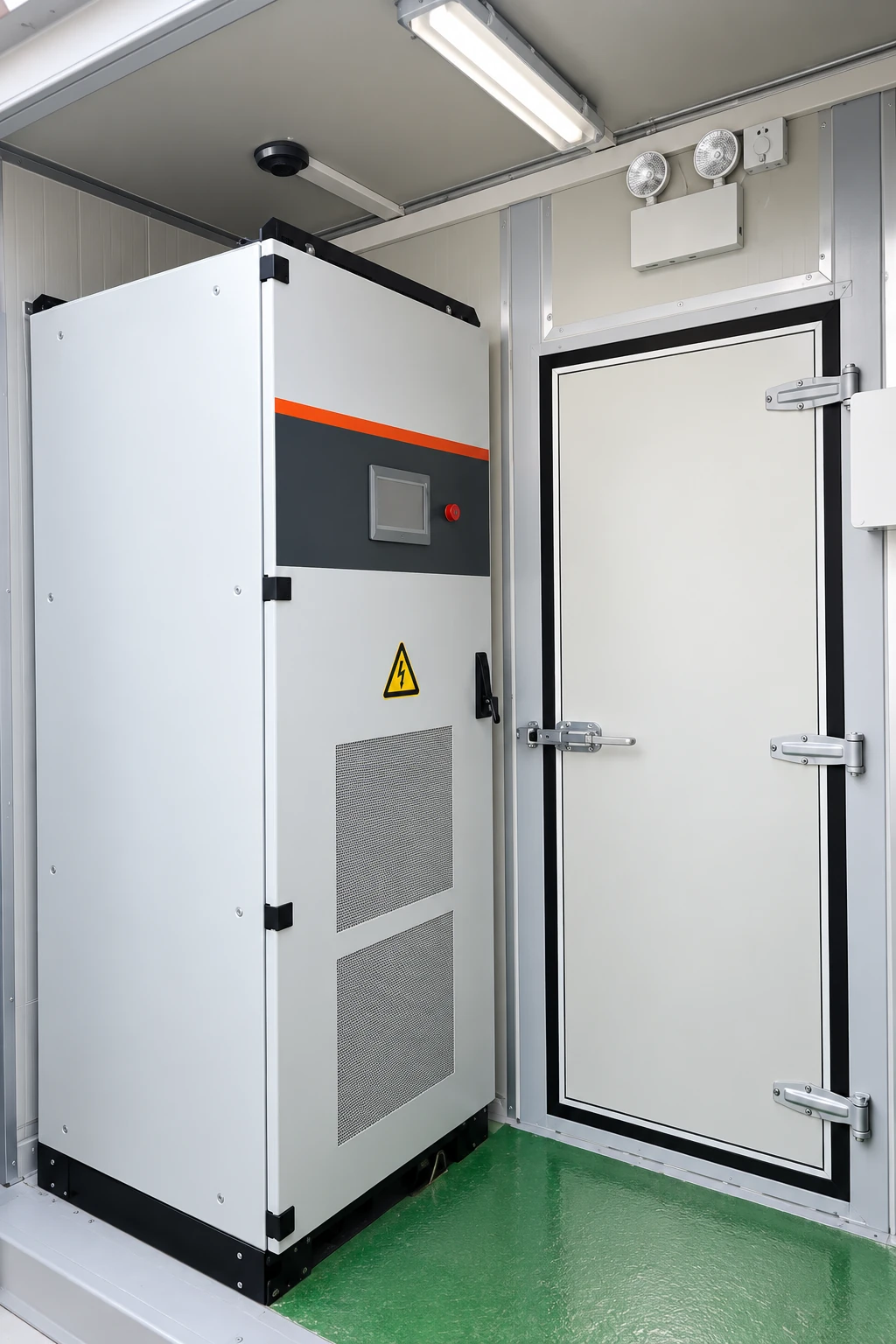

Check the Complete BESS Door Interface
Review the moving assembly and the installed access envelope together before an individual hinge is compared.
Moving Door Assembly
Use the complete moving weight, including the door panel, reinforcement, locks, handles, louvers, vents and any equipment actually mounted to the door.
Service Envelope
Confirm the opening angle, technician and tool clearance, adjacent cabinet clearance and the removal path where a panel must come away.
Seal & Closing Interface
Where a gasket is used, check latch engagement, alignment and the repeatability of the closed position against the enclosure interface.
Moving Connections
Where they cross the moving interface, record the bonding strap, cable bundle, sensor or control wiring and the available flexible clearance.
Compare BESS Enclosure Hinge Routes Before RFQ
Use each access point to identify a likely starting route. The table supports product comparison and does not approve a specific model.
| BESS access point | Door / panel behavior | Starting hinge route | What changes the route |
|---|---|---|---|
| Battery compartment | Retained larger access door | Heavy-Duty / Concealed | Moving weight, center of gravity, rack clearance and seal interface |
| Battery compartment | Removable maintenance panel | Lift-Off | Panel weight, removal direction, handing and lift clearance |
| Power / control access | Retained frequent-access door | Concealed / Industrial | Internal envelope, opening sweep, mounted equipment and moving connections |
| Cooling / service access | Retained service door | Heavy-Duty / Industrial | Louvers, moving load, technician clearance and service frequency |
| Cooling / service access | Removable service panel | Lift-Off | Removal path, lift clearance and adjacent equipment |
| Fabricated enclosure structure | Permanent welded door | Weld-On | Base material, weld access, hinge axis and distortion |
Ordering Information
Commercial details are confirmed for the selected existing hinge and requested quantity.
Pricing
Pricing is confirmed for the selected hinge and requested quantity in the quotation.
MOQ
Applicable minimum order requirements depend on the selected product.
Samples
Sample availability is confirmed for the selected hinge before the order proceeds.
Lead Time
Sample and production lead times are confirmed according to the selected product, quantity and current production schedule.
Quality Inspection
Relevant dimensions and product consistency are checked through the applicable HSP inspection process before shipment.
Need pricing for a BESS access door or service panel?
Request a Quote
Product Inspection & Dimensional Verification
Relevant hinge geometry, mounting dimensions and production consistency can be checked through the applicable HSP inspection process before shipment.
The selected hinge should still be checked against the actual BESS door, frame, mounting interface and service clearance before production use.
Send Your BESS Enclosure Access Details
Basic information about the BESS access point, door or panel and required quantity is enough to begin a product and quotation review.
- Equipment / Application
- Door or Panel Function
- Approx. Door Size
- Approx. Complete Moving Weight, if known
- Retained or Removable
- Estimated Quantity
Drawing or photo can be shared during follow-up if available.
Request a Quote
Share the information available for the individual access door or panel. Complete project data is not required for the first quotation review.
Your inquiry information is used to respond to your request. Privacy Policy
From Access Point to Product Quote
Access Point
Identify the compartment and how its door or panel is used during service.
Hinge Family
Shortlist the existing HSP route that matches retention, removal and mounting needs.
Product / Sample Review
Compare the selected product or available sample with the door and frame interface.
Quotation
Confirm pricing and applicable commercial details for the selected product and quantity.
