Adjustable Torque Hinge Specification: Range & Locking

Two suppliers can publish the same adjustable torque range and still offer different usable products.

One hinge may hold a stable setting through the middle of the adjuster travel and remain close to that value after locking. Another may reach the stated maximum only near the mechanical endpoint, where a small movement of the screw causes a large change in torque.

That is why an adjustable torque hinge specification cannot stop at a minimum and maximum value. It must define the usable setting window, adjustment access, locking condition, permitted post-lock shift, and the evidence the supplier must return.

If the mechanism decision is still open, begin with the constant vs. adjustable torque hinge guide.

Usable RangeApprove an operating window, not only mechanical endpoints.

Lock ConditionMeasure the finished setting after the lock is applied.

Production ControlDefine how the factory reproduces and verifies the setting.

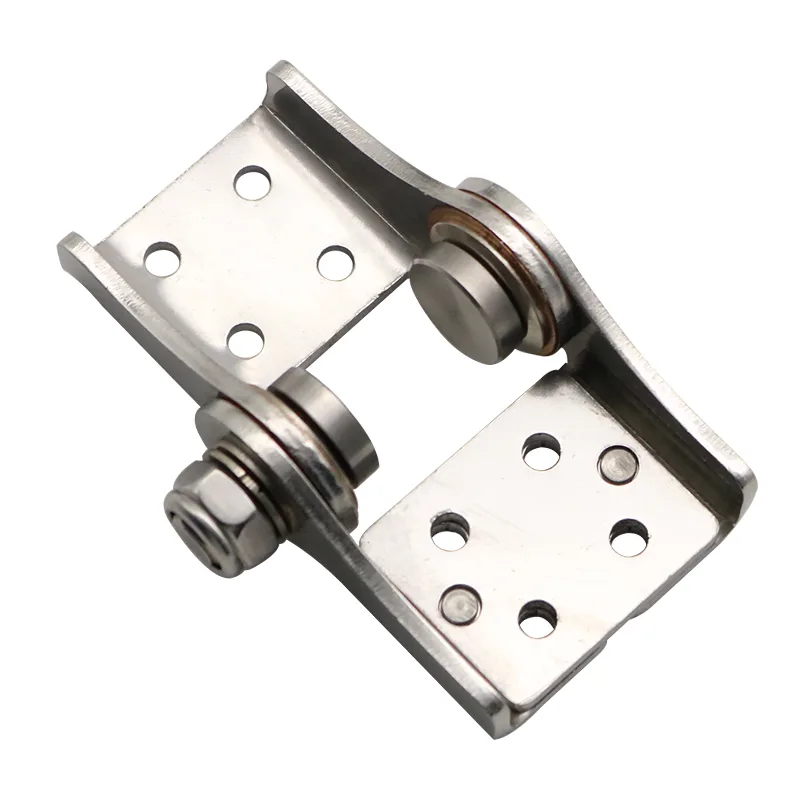

Adjustable torque hinge with mounting holes and adjustable friction mechanism

Catalog Range Is Not the Usable Range

A catalog may show one lower value and one upper value. Those numbers can describe mechanical capability, a tested output range, or simply the available settings of one sample. They do not automatically define the range that should be released on an OEM drawing.

Range Term	Meaning	Buyer Action
Mechanical travel	The physical movement available in the screw, nut, cam, clamp, or compression mechanism	Ask whether the full travel is approved for normal operation.
Published range	The minimum and maximum torque reported under a stated supplier condition	Request direction, angle, temperature, speed, and lock condition.
Usable range	The portion that meets holding, operator-force, repeatability, and retention requirements	Approve this range, not the mechanical endpoints.
Production window	The allowed factory setting around the nominal target	Define a setting tolerance and inspection method.
Service reserve	Adjustment room remaining above and below the production setting	Keep the nominal setting away from an endpoint unless endpoint use is validated.

A wide published range can still be a poor fit. The project target may sit too close to the upper endpoint. The lower end may remain too stiff for the operator. The range may apply only in one direction, or the reported value may be breakaway torque rather than running torque.

Mechanical End Published Range Usable Range Production Window Mechanical End

Set the Window From the Assembly

The usable range should surround the torque required by the complete panel. That target comes from panel mass, center-of-gravity distance, hinge quantity, operating angle, cable resistance, gasket resistance, and acceptable hand force. The detailed calculation belongs in the torque hinge calculation guide.

Once the target is known, place it inside the adjustment range with enough reserve for production variation and expected torque change. Do not define the released setting as “maximum,” “fully tightened,” or “three turns from loose” unless the exact model, reference position, adjustment response, and inspection method are controlled.

Release rule: Specify the approved operating window and nominal production setting. Do not approve the hinge only because the catalog maximum exceeds the calculated target.

Adjustable torque hinge installed on a machine panel support — Installed access depends on the cabinet return, cover, bracket, and the tool path around the adjustment feature.

Adjustment Access in the Assembly

An adjustment feature shown on a supplier drawing may be inaccessible after installation. A cabinet return, bezel, cover, cable duct, gasket retainer, display housing, or adjacent bracket can block the tool even when the hinge itself fits.

The specification should identify the adjustment interface without turning into a field-adjustment procedure.

The supplier must also state which direction increases or decreases torque for the exact model and orientation. Do not publish a universal clockwise or counterclockwise instruction.

Field	Supplier Definition	Drawing Check
Adjustment feature	Screw, nut, cam, clamp, compression element, or model-specific mechanism	Do not confuse the adjuster with a mounting or retention fastener.
Tool	Tool type, engagement depth, and access direction	Show the complete tool envelope in the installed assembly.
Adjustment condition	Loaded, supported, unloaded, open, closed, or at a stated angle	Confirm the final product can be placed in that condition.
Permitted travel	Approved adjuster movement and endpoint restrictions	Provide a visible or measurable limit.
Service access	Factory-only or field-adjustable	Do not assume later access if a cover seals the feature.

Detailed support, turning, balancing, and troubleshooting steps remain on the torque hinge adjustment procedure. This page only defines the conditions that procedure must follow.

Locking Method and Post-Lock Shift

Locking is part of the torque mechanism. Tightening a locknut, applying a separate set screw, adding thread-locking material, or engaging an indexed feature can change preload and move the final torque away from the unlocked setting.

Locking Approach	Specification Input	Key Risk
Locknut or jam nut	Holding method, tightening requirement, access, and post-lock recheck	The adjuster can rotate while the nut is tightened.
Separate set screw	Contact location, tightening requirement, and permitted thread condition	Excess contact pressure can mark or shift the adjuster.
Thread-locking material	Approved material, application amount, cure condition, and serviceability	The material can change adjustment feel or prevent later service.
Indexed or captive feature	Available positions, engagement confirmation, and setting identification	The required setting may fall between available positions.
Permanent production lock	Approved process, inspection evidence, and rework limit	The hinge may no longer be field-adjustable.

The approved torque should represent the finished locked condition. Record the unlocked value when it helps diagnose process shift, but release the hinge against a maximum permitted difference between the pre-lock and post-lock measurements.

Long-term torque retention after cycling, vibration, or temperature exposure is a separate qualification task. Transfer that work to the torque hinge cycle-life and retention guide.

Adjustment Resolution and Production Control

A range is not production-ready until the factory can set and identify a repeatable position. The buyer needs to know how sensitive the output is to a small movement of the adjuster.

Adjustment Resolution

Torque change per turn, partial turn, index, mark, or measured setting interval.

Nominal Setting

The approved production target for the exact model and application.

Setting Tolerance

The permitted variation around the nominal production target.

Position Reference

A mark, dimension, index, measured torque, or other controlled method.

Endpoint Reserve

Remaining travel above and below the production setting.

Inspection Method

How the factory verifies the finished locked result.

A simple turn count can work only when the starting reference, thread travel, model revision, direction, loaded condition, and resulting torque relationship are controlled. Without those conditions, “two turns” is not a transferable specification.

The production check should measure the output that matters to the assembly. Depending on the project, that may be running torque through a defined angle, holding behavior at a stated position, or operator force at a known handle distance.

Supplier Data Required

The supplier return should focus on adjustable-hinge evidence, not a generic catalog sheet.

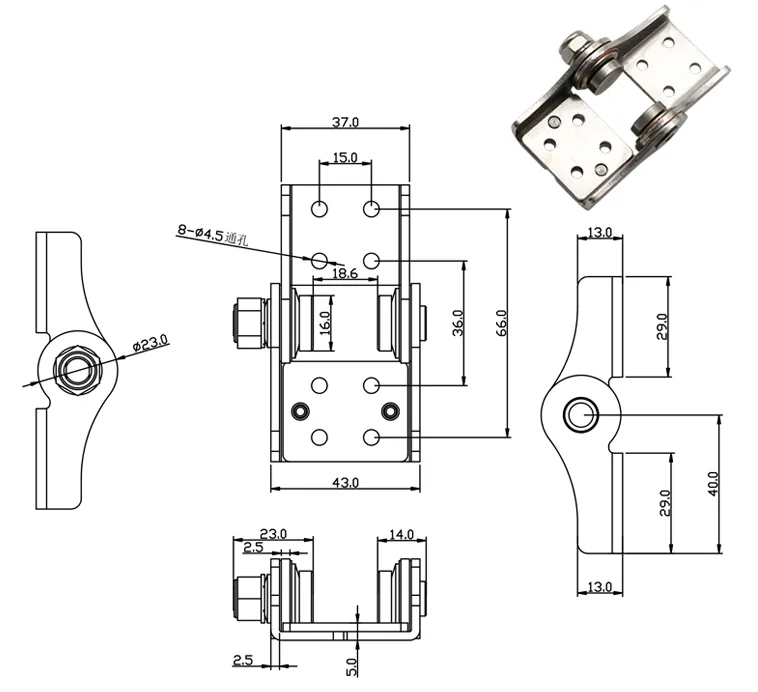

Adjustable torque hinge dimensional drawing with mounting and access dimensions — **Model-specific dimensional drawing.** Dimensions apply only to the referenced hinge model and drawing revision.

Required Evidence	Why It Is Needed
Controlled model drawing and revision	Links the range and locking data to the exact configuration.
Adjuster and lock-feature identification	Prevents the wrong fastener from being used.
Mechanical travel and endpoint limits	Shows where normal operation is restricted.
Published and recommended usable range	Separates tested capability from the working window.
Torque versus adjustment position	Shows sensitivity and unstable regions.
Measurement condition	Defines direction, angle, speed, temperature, and lock state.
Pre-lock and post-lock data	Quantifies shift caused by locking.
Production setting reference	Allows repeatable factory inspection.

A generic torque-angle curve can support the review, but the essential evidence here is the relationship between adjuster position, usable torque, locking, and the finished production setting.

Adjustable Torque Hinge RFQ Block

Use these fields after the torque target and hinge architecture have already been established. Leave unknown values blank instead of inventing them.

Application

Application and moving panel
Hinge quantity
Operating angle
Required torque term
Usable range per hinge

Production Setting

Nominal setting
Allowed tolerance
Reserve above and below nominal
Production setting reference
Final inspection method

Adjustment Interface

Adjustment feature
Tool and access envelope
Adjustment condition
Permitted travel
Field readjustment required

Locking and Supplier Return

Locking method and instruction
Maximum post-lock shift
Model and drawing revision
Pre-lock and post-lock data
Retention report reference

Send the Range and Locking Inputs

Send the torque window, nominal production setting, adjustment-access limits, locking condition, hinge quantity, panel drawing, and required service reserve.

Request an Adjustable Hinge Review

Adjustable Torque Hinge Questions

Is the full published adjustable torque range always usable?

No. Mechanical endpoints may provide limited reserve, poor repeatability, or unacceptable operator force. Approve a usable setting window under a defined locked measurement condition rather than assuming every point between the catalog minimum and maximum is suitable.

Can the locking step change the final hinge torque?

Yes. A locknut, set screw, thread-locking material, indexed feature, or permanent locking process can change preload or move the adjuster. Measure the finished locked condition and define the maximum permitted post-lock torque shift.

What data should a supplier provide for an adjustable torque range?

Request the exact model and revision, mechanical travel, endpoint limits, published and recommended usable range, torque versus adjustment position, measurement condition, locking instruction, pre-lock and post-lock values, and the production setting reference.

How far should the nominal setting be from the adjustment endpoints?

There is no universal percentage or number of turns. The nominal setting should retain enough adjustment reserve above and below the target for production variation, expected torque change, and any approved service correction. The supplier should identify endpoint restrictions and the project should verify the usable reserve.

Should the torque range be specified per hinge or for the complete assembly?

State both when multiple hinges are used. Define the required system behavior, the permitted torque range per hinge, the hinge quantity, and the measurement condition. A correct total torque does not prove that each hinge is operating inside its approved range.

Can adjuster position alone be used as the production setting?

Only when the position reference has been correlated with torque for the exact model, revision, starting point, adjustment direction, and locking condition. A screw position, index mark, or turn count should not replace a finished torque check unless that relationship is controlled.

Do opening and closing torque need separate specification values?

They should be separated when directional behavior affects holding force, closing effort, or operator feel. The supplier should state whether the published range represents opening torque, closing torque, breakaway torque, running torque, holding behavior, or another defined measurement.

Should an adjustable torque hinge remain field-adjustable after production?

That is project-specific. The specification should state whether adjustment is factory-only or available in service, whether the adjuster remains accessible, how the setting is relocked, and how the finished torque is verified after any permitted readjustment.

Technical review and limitation note: The dimensional drawing and photographs on this page illustrate a specific or representative adjustable torque hinge. Usable range, adjustment direction, locking instruction, tool access, and post-lock torque shift remain model- and project-specific. Do not transfer dimensions or adjustment instructions between models without a controlled drawing and supplier confirmation.
