Concealed Cover Heavy-Duty Industrial Hinge
PRODUCT PARAMETERS
Description
XG02-005-1/2/3/4 Series Heavy-Duty Industrial Hinges, specifically engineered for high-load equipment doors. Constructed from high-strength zinc alloy, they deliver exceptional load-bearing capacity. The unique concealed cover plate design enhances aesthetics, while the 135° opening angle and six elongated holes provide ultimate installation flexibility. This series significantly improves the sturdiness and overall quality of industrial cabinets, electrical enclosures, and heavy-duty equipment doors.

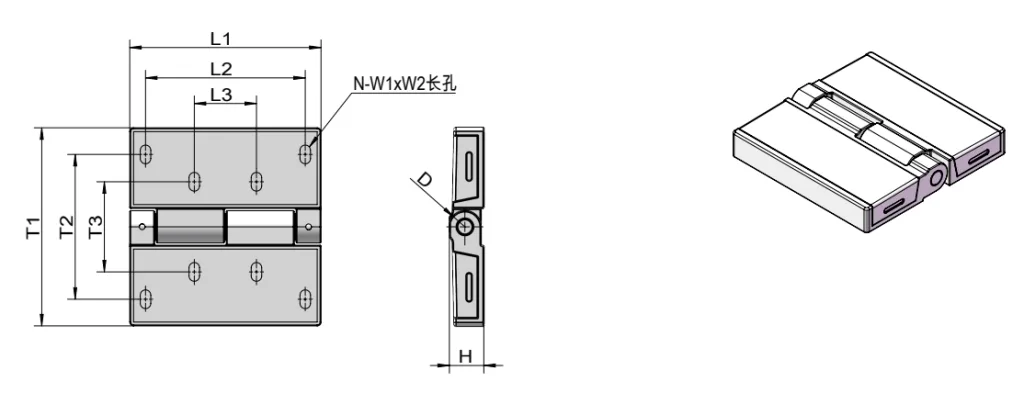

Dimension Drawing
| Code | Part No. | L1 (mm) | L2 (mm) | L3 (mm) | T1 (mm) | T2 (mm) | T3 (mm) | N (mm) | W1 (mm) | W2 (mm) | D (mm) | H (mm) | Material | Surface Treatment |
| HG02-005-1 | HG02-005-1-1 | 100 | 82 | 30 | 104 | 75 | 48 | 8 | 5.8 | 10.3 | 8.5 | 17 | ZDC | Chrome Plated |
| HG02-005-1-2 | 100 | 82 | 30 | 104 | 75 | 48 | 8 | 5.8 | 10.3 | 8.5 | 17 | Matt Finish | ||
| HG02-005-2 | HG02-005-2-1 | 80 | 55 | 25 | 86 | 62 | 42 | 8 | 5 | 8.8 | 8 | 14.5 | Chrome Plated | |
| HG02-005-2-2 | 80 | 55 | 25 | 86 | 62 | 42 | 8 | 5 | 8.8 | 8 | 14.5 | Matt Finish | ||
| HG02-005-3 | HG02-005-3-1 | 60 | 40 | 20 | 63 | 45.5 | 30.5 | 8 | 4.2 | 5.5 | 6 | 11.5 | Chrome Plated | |
| HG02-005-3-2 | 60 | 40 | 20 | 63 | 45.5 | 30.5 | 8 | 4.2 | 5.5 | 6 | 11.5 | Matt Finish | ||
| HG02-005-4 | HG02-005-4 | 60 | 40 | / | 62 | 37 | / | 6 | 5 | 10 | 5.2 | 12 | Chrome Plated |
FAQ
What applications is this heavy-duty industrial hinge suitable for?
This hinge is designed for industrial cabinets, electrical enclosures, heavy-duty equipment doors, and machinery access panels. Because it combines strong load capacity with flexible installation, it performs reliably in demanding industrial environments.
Why is the concealed cover plate design important?
The concealed cover plate improves both appearance and equipment protection. In addition, it helps create a cleaner and more professional exterior by covering mounting hardware. Therefore, many manufacturers use this design in high-end industrial cabinets and electrical enclosures.
What advantages do the six elongated mounting holes provide?
The elongated hole design increases installation flexibility and simplifies alignment during assembly. As a result, installers can adjust positioning more easily and achieve a more stable fit on equipment doors and enclosure panels.
Can this hinge support heavy industrial equipment doors?
Yes. The high-strength zinc alloy structure delivers strong load-bearing performance for heavy-duty applications. Moreover, the reinforced design helps maintain smooth door operation and long-term stability during frequent industrial use.
Why is the 135° opening angle beneficial in industrial applications?
The 135° opening angle provides wider access for maintenance, operation, and equipment inspection. In addition, it improves workspace accessibility around industrial cabinets and machinery doors. Consequently, technicians can perform servicing tasks more efficiently and safely.
