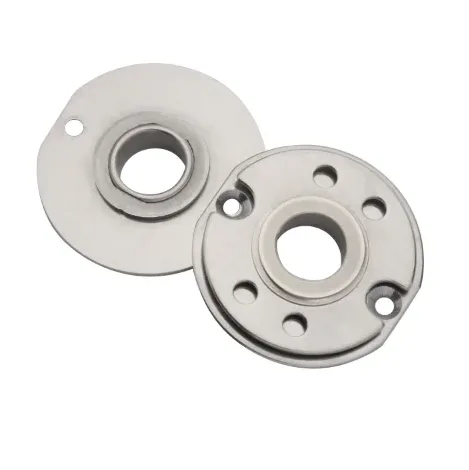

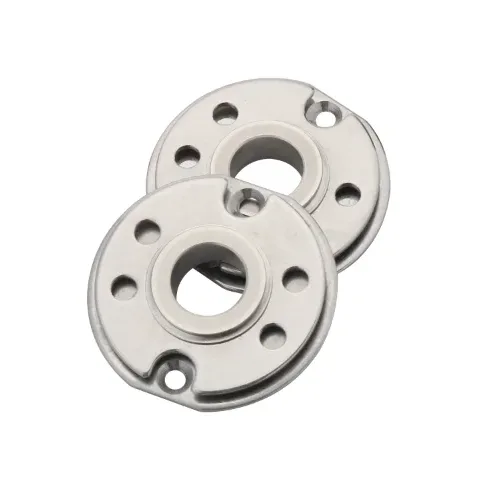

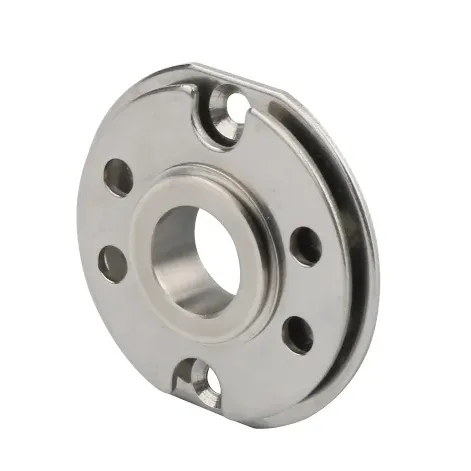

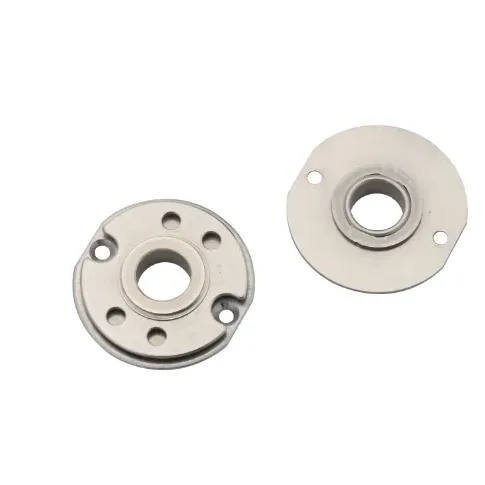

360° Damping Pivot Hinge 0.15 N·m | Stainless Steel
PRODUCT PARAMETERS
Description
Damping pivot hinge: Made of corrosion-resistant 304 stainless steel, this hinge features smooth 360° positioning (0.15 N·m torque) and a built-in cable routing hole. Ideal for demanding applications needing reliability, clean aesthetics, and controlled motion. Key uses include: medical carts & equipment, monitor/TV mounts, high-end cabinet hardware, industrial control panels, and aerospace/portable instruments where durability and precise movement matter.

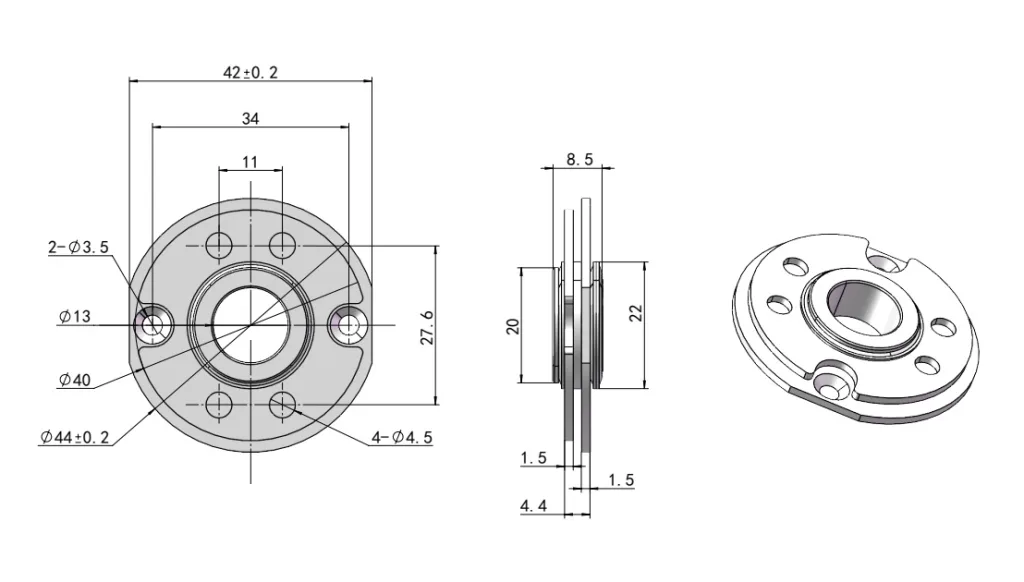

Dimension Drawing
| Part Number | Material | Surface Finish | Torque (N·m) |
| HG11-04-DZ | SUS304 Stainless Steel | Vibratory Polishing | 0.15 |
FAQ
What applications is this damping pivot hinge best suited for?
It fits medical equipment, monitor mounts, industrial panels, and portable instruments. In these cases, it ensures controlled motion and clean cable management.
How does the 0.15 N·m damping improve performance?
With low, consistent torque, it enables smooth 360° positioning. As a result, users can adjust components precisely without sudden movement.
What is the benefit of the built-in cable routing hole?
The integrated hole allows cables to pass through the hinge. Therefore, it reduces external clutter and supports a cleaner design.
How durable is the 304 stainless steel construction?
304 stainless steel resists corrosion and wear effectively. Consequently, it performs reliably in demanding or sensitive environments.
Is this hinge suitable for precision equipment?
Yes. Thanks to stable damping and full rotation, it delivers accurate, repeatable positioning for high-end and technical applications.
