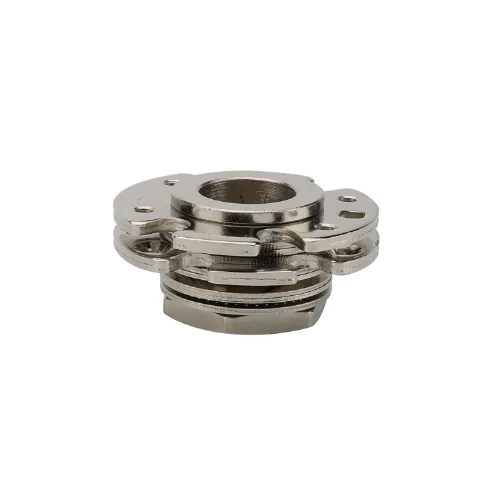

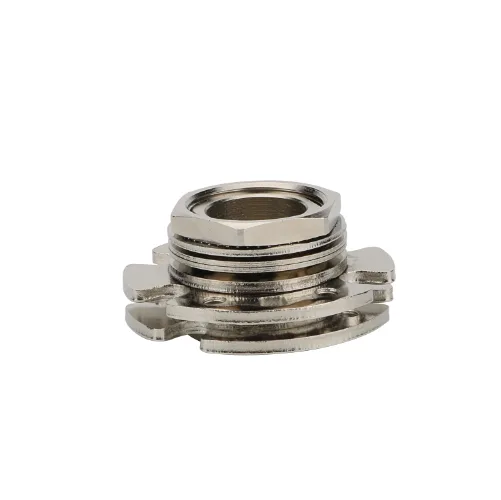

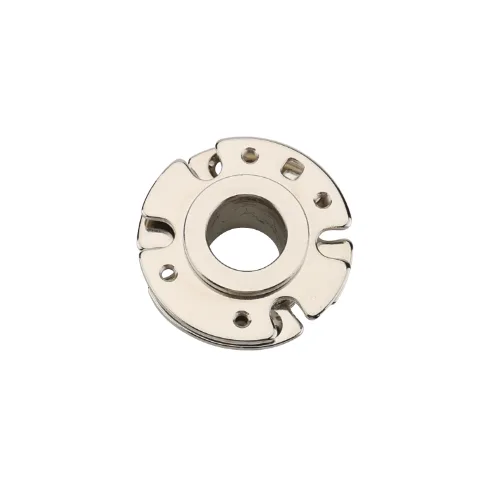

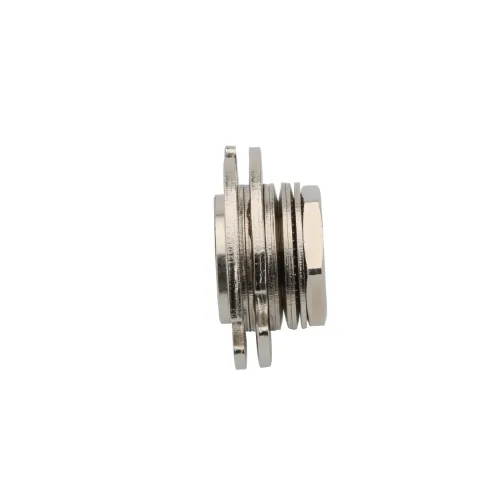

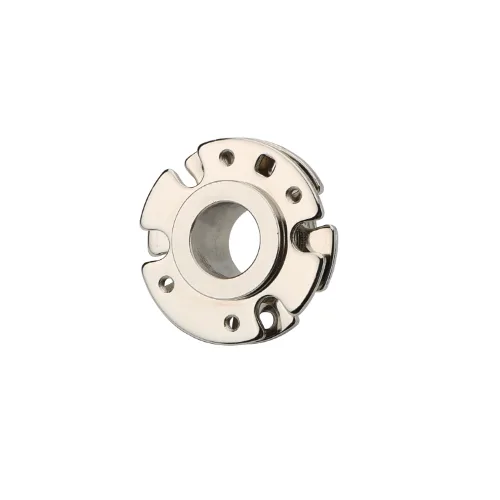

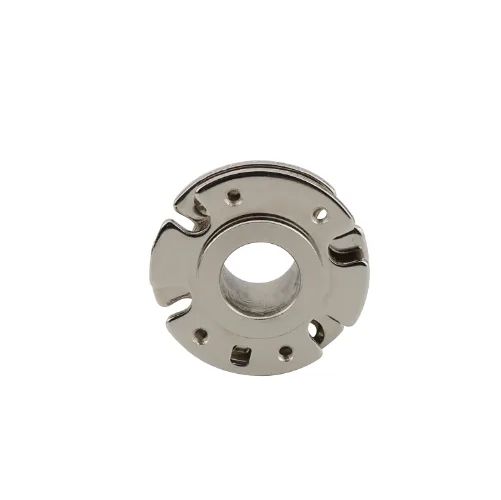

Iron Round Torque Hinge | 360° Free-Stop | Up to 15 N·m
PRODUCT PARAMETERS
Description
Mechanical Equipment Torque Hinge, made of strong iron, features an adjustable torque up to 15 N·m for precise control. Its round design includes a 20mm cable hole and supports full 360° rotation with free-stop at any angle—ideal for industrial equipment, control panels, and electronic devices requiring stable, customizable motion.

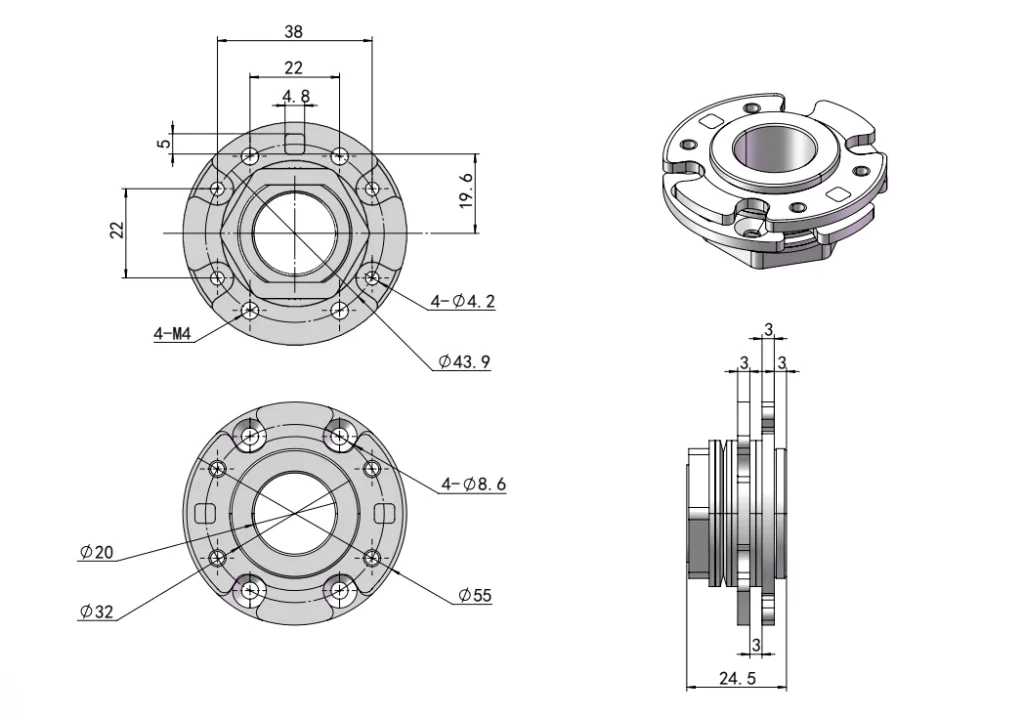

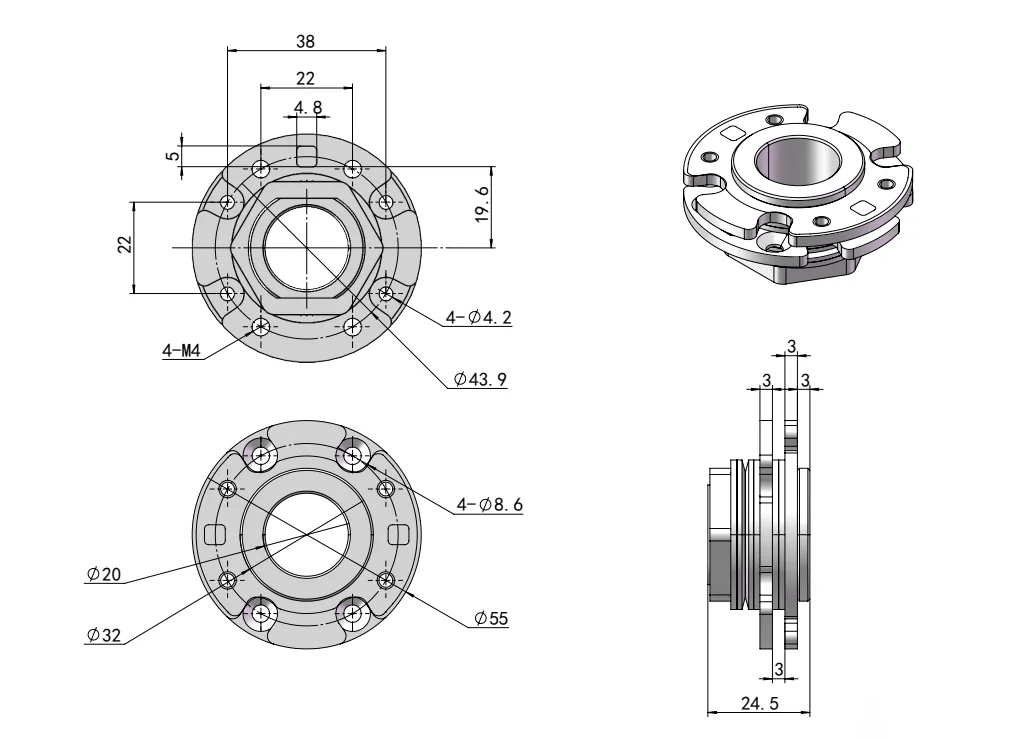

Dimension Drawing
| Code | Item No. | Torque N·m | Material | Surface Treatment |
| HG11-104 | HG11-104 | 0-15 | Iron | Nickel Plated |
FAQ
What makes this torque hinge different from standard hinges?
We designed this hinge with three unique advantages: adjustable torque up to 15 N·m for precise control, full 360° rotation with free-stop at any angle, and a built-in 20mm cable hole for clean cable management. It delivers stable, customizable motion for industrial equipment, control panels, and electronic devices.
How does the adjustable torque feature benefit my application?
You can fine-tune the resistance to match your exact needs—up to 15 N·m of torque ensures reliable positioning even for heavier components. This gives you complete control over motion, allowing smooth operation and secure free-stop at any angle.
What is the purpose of the 20mm cable hole?
The integrated 20mm cable hole allows you to route wires directly through the hinge, eliminating exposed cables and reducing installation complexity. We proactively designed this feature to support cleaner, more reliable setups for control panels and electronic devices.
Can I use this hinge for applications requiring full rotation?
Absolutely. This hinge supports full 360° rotation while maintaining free-stop capability at any angle. Whether you need wide access for equipment maintenance or flexible positioning for control panels, we ensure smooth, consistent motion throughout the entire rotation range.
Do you offer customization for this mechanical equipment torque hinge?
Yes, we actively support customization. We can adjust torque values, mounting hole patterns, surface finishes, and other specifications to fit your application. Our engineering team works with you to deliver a tailored solution that integrates seamlessly into your equipment
