1.5″ Removable Zinc Alloy Torque Hinge | 0.3–1.5 N·m
PRODUCT PARAMETERS
Description

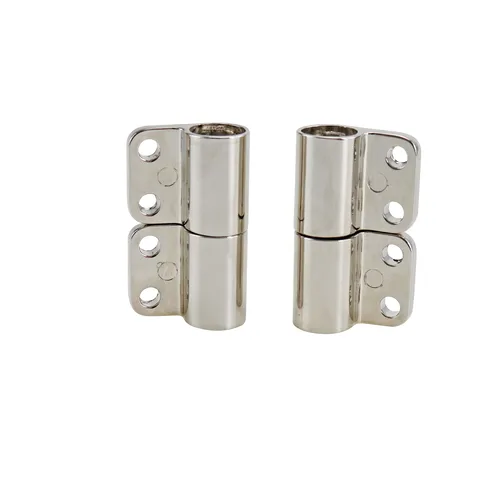

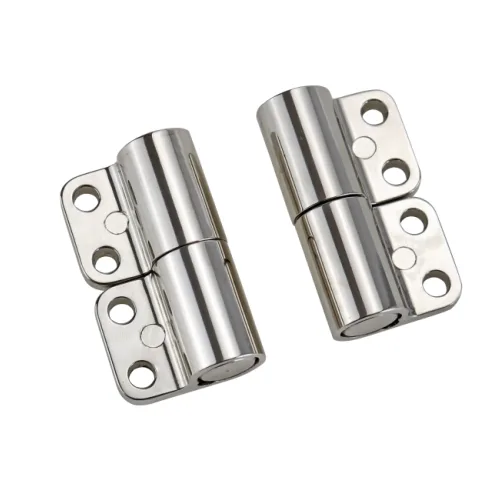

1.5-inch removable torque hinge made of durable zinc alloy, available in left and right versions. Features a plug-in flag design for easy installation and smooth 360° rotation. Offers torque options from 0.3 /0.5/0.7/1.3/1.5 N·m, allowing precise positioning and free-stop functionality at any angle—ideal for panels, doors, and electronic enclosures.

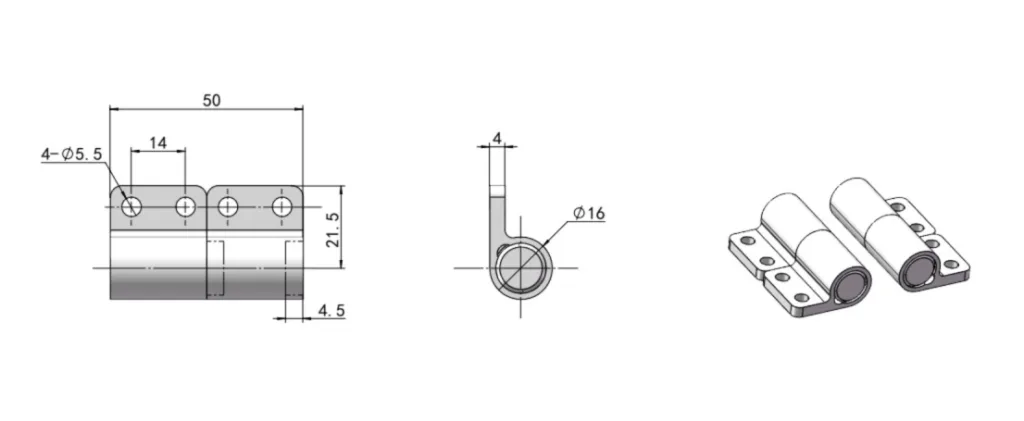

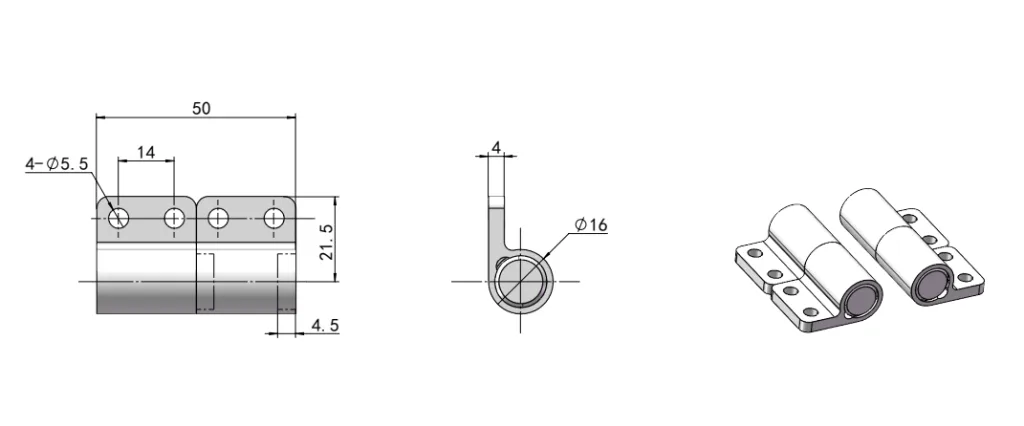

Dimension Drawing
| Code | Item No. | Torque (N·m) | Material | Surface Treatment |
| HG11-039 | HG11-039-3L | 0.3 | ZDC | Nickel Plating |
| HG11-039-3R | 0.3 | |||
| HG11-039-5L | 0.5 | |||
| HG11-039-5R | 0.5 | |||
| HG11-039-7L | 0.7 | |||
| HG11-039-7R | 0.7 | |||
| HG11-039-13L | 1.3 | |||
| HG11-039-13R | 1.3 | |||
| HG11-039-15L | 1.5 | |||
| HG11-039-15R | 1.5 |
FAQ
What applications are suitable for the 1.5-Inch Removable Torque Hinge?
The 1.5-Inch Removable Torque Hinge is ideal for panels, equipment doors, control cabinets, and electronic enclosures. It delivers smooth motion and precise positioning for industrial and automation applications.
What torque options are available?
This hinge offers multiple torque ratings: 0.3, 0.5, 0.7, 1.3, and 1.5 N·m. These options allow engineers to select the appropriate resistance for stable and controlled movement.
What are the benefits of the plug-in flag design?
The plug-in flag design enables quick installation and easy removal, simplifying maintenance and reducing downtime. It enhances assembly efficiency, making it ideal for modular equipment and OEM projects.
Does the hinge support full 360° rotation and free-stop functionality?
Yes. The hinge provides 360° rotation with free-stop positioning, allowing doors and panels to remain securely at any angle without additional locking mechanisms.
Are left- and right-hand versions available, and do you offer OEM services?
Yes. The hinge is available in left- and right-hand configurations to accommodate different installation requirements. We also provide OEM and ODM services, including customized torque values, finishes, and branding, ensuring a reliable global B2B procurement experience.
