Stainless Steel Dual-Axis Torque Hinge | 360° Free-Stop | Heavy-Duty Screen & Panel Mount
PRODUCT PARAMETERS

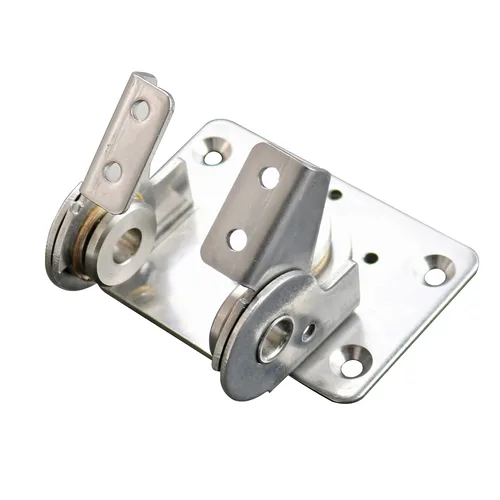

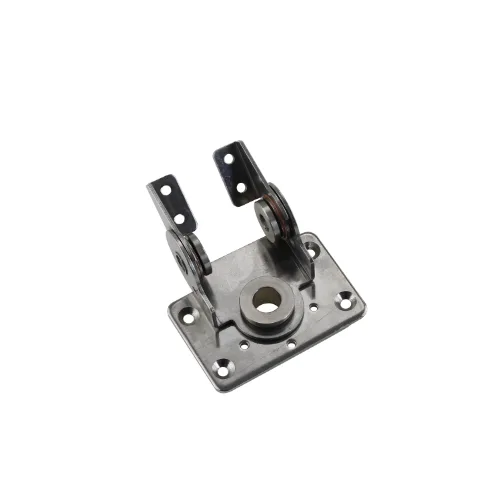

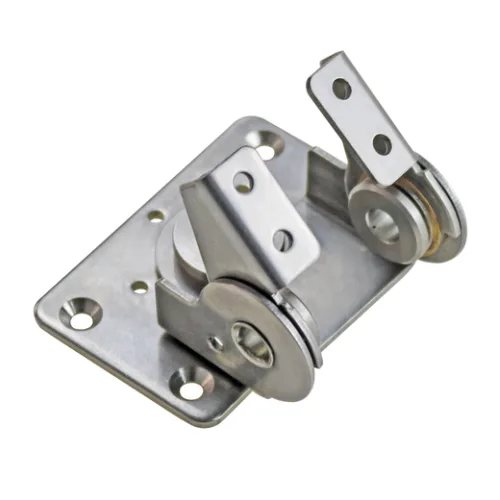

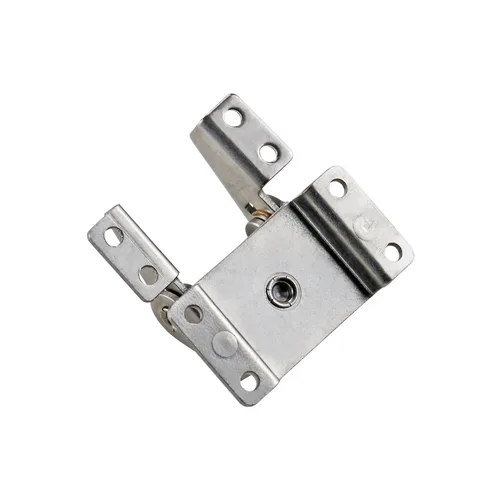

Description
This dual-axis torque hinge combines 3.0 N·m rotation and up to 7.0 N·m tilt torque for smooth, hands-free positioning on heavy screens and panels. The 360° rotation and 200° opening range let you lock any angle instantly—no extra hardware needed. Built from stainless steel for lasting durability, it’s the go-to choice for medical monitors, industrial cabinets, and professional display systems.

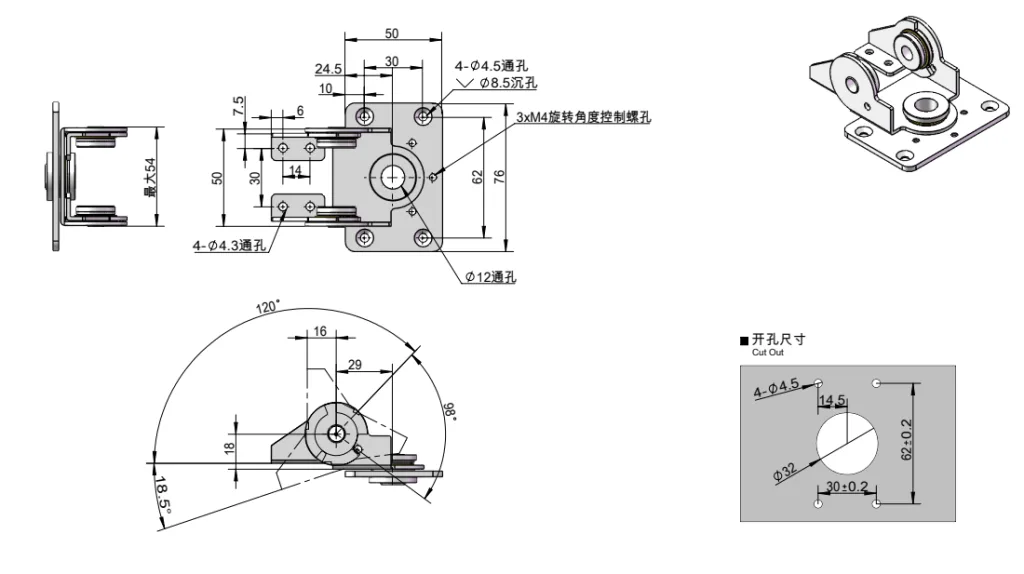

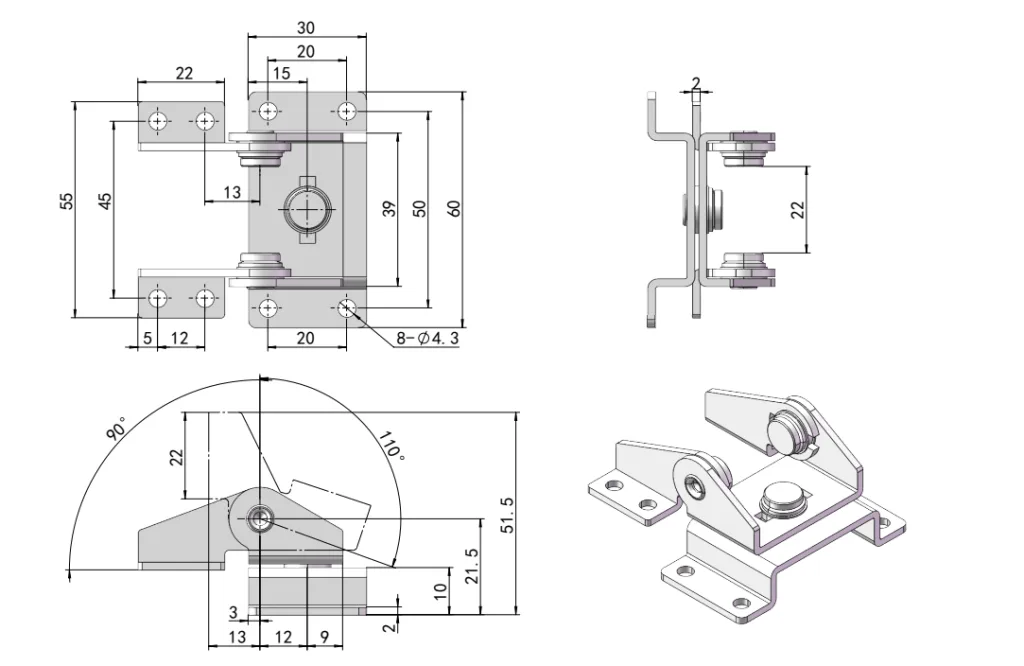

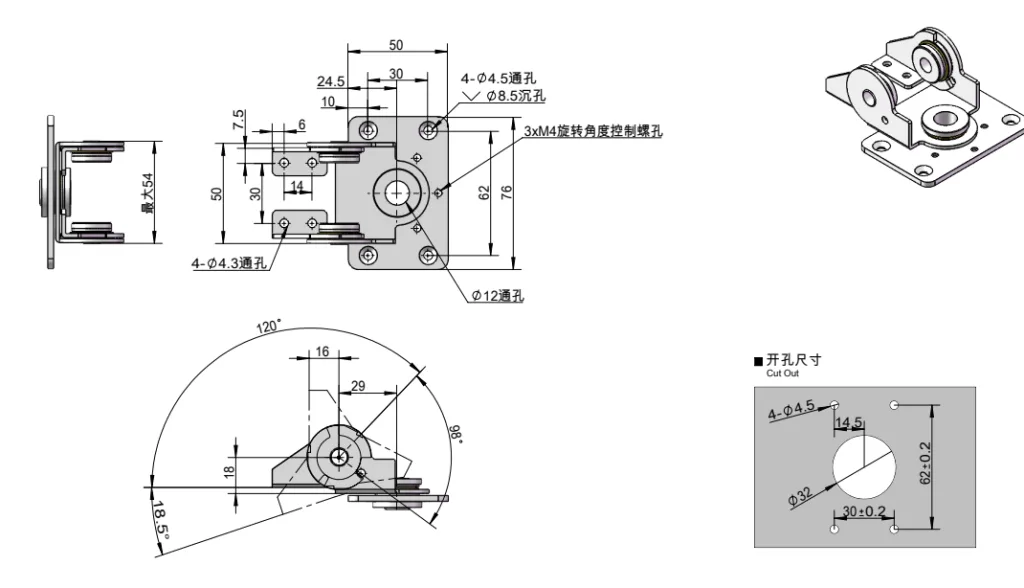

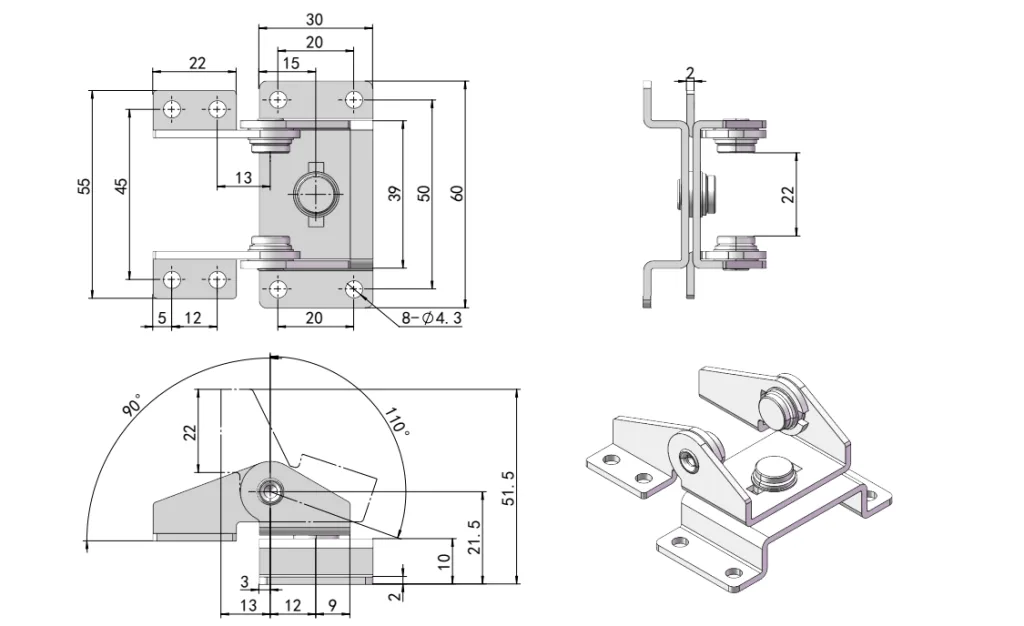

Dimension Drawing
| Code | Item No. | Torque N·m (Tilt Direction) | Torque kgf·cm (Tilt Direction) | Torque N·m (Rotary Direction) | Torque kgf·cm (Rotary Direction) | Material | Surface Treatment |
| HG11-004 | HG11-004 | 7 | 70 | 3 | 30 | SUS304 | Vibration Polishing |
| HG11-005 | HG11-005 | 3 | 30 | 1.5 | 15 |
FAQ
What are the torque ratings for each axis, and how do I match them to screen weight?
The rotation axis provides 3.0 N·m for horizontal swivel, while the tilt axis delivers up to 7.0 N·m to carry the primary load. For a typical 24″ industrial monitor (6–9 kg), this leaves a comfortable static margin against drift under vibration or power loss. As a rule of thumb, calculate torque from the screen’s center of gravity to the mounting face, then add at least 20% safety margin.
How does the hinge lock at any angle without extra hardware?
An internal friction mechanism self-locks instantly at any position — no stoppers or tools needed. The 360° rotation handles portrait/landscape switching and full fold-back, while the 200° opening covers fully closed to flat-open in a single range. For cabinet door installations, simply confirm clearance at maximum opening before mounting to avoid structural interference.
Does the stainless steel construction meet medical-grade cleaning and disinfection requirements?
The stainless steel body resists repeated wiping with alcohol and chlorine-based disinfectants, making it suitable for high-hygiene environments such as operating rooms and ICUs. If your facility requires a specific IP rating or medical device cleanliness certification, request the material certificate (e.g., SUS 304/316 specification sheet) and surface treatment documentation from the supplier for inclusion in equipment records.
Will torque degrade over time, and what does maintenance involve?
Some gradual friction loss is normal with cumulative cycles; in non-corrosive environments, however, the stainless steel construction typically endures tens of thousands of operations. If the panel begins to drift, a technician can adjust pre-load or swap friction pads per the product manual — no full unit replacement required. A six-month locking-force check is generally sufficient.
Is it compatible with standard VESA mounting patterns, and are custom interfaces available?
Standard VESA 75×75 mm and 100×100 mm patterns are supported out of the box. For non-standard enclosures, share mounting face drawings at the RFQ stage — suppliers can typically provide adapter plates or revised hole spacing. At volume, OEM/ODM surface finishes such as custom coating or plating are usually negotiable.
