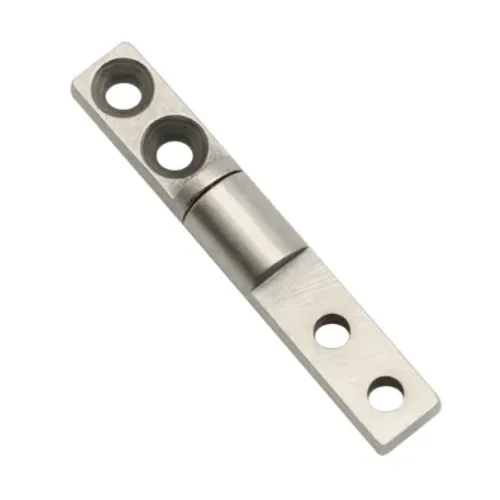

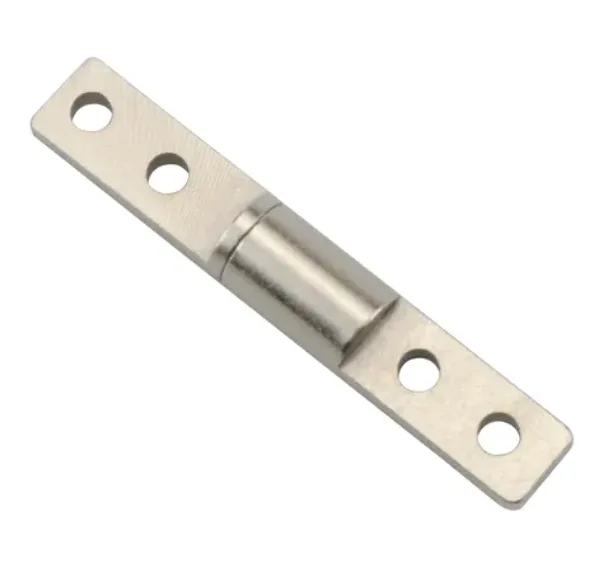

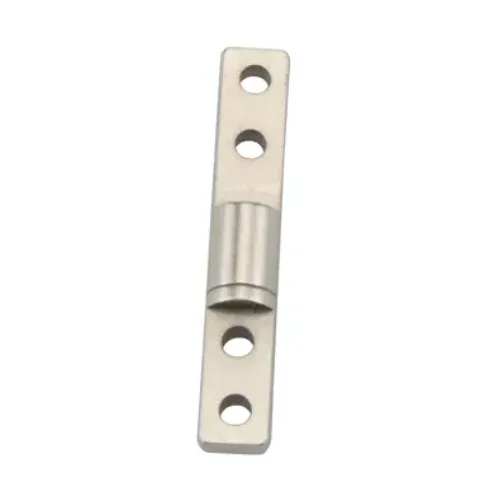

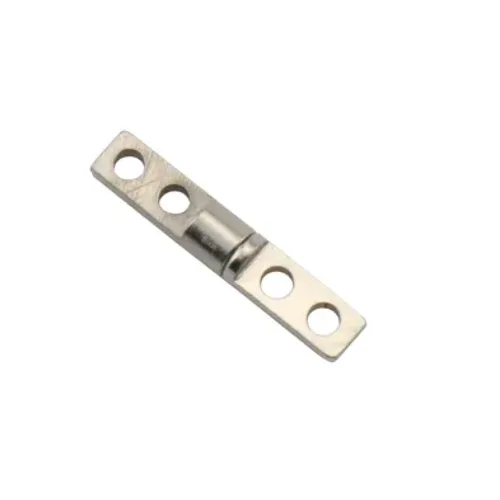

Embedded Torque Hinge 0.1–2.0 N·m | 360° Smooth Motion
PRODUCT PARAMETERS
Description
Embedded Torque Hinge made of durable iron, offering 0.1–2.0 N·m torque options and multiple sizes. Its 360° round-shaft design ensures smooth, stable motion—ideal for laptops, medical devices, automotive panels, and smart home appliances.
Dimension Drawing

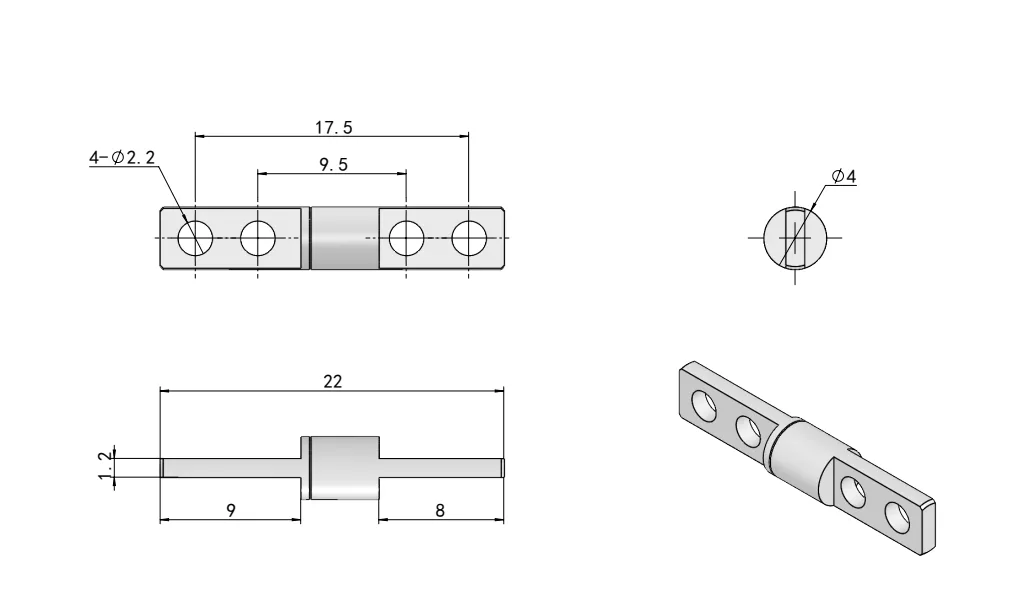

HG11-076-1
| Code | Item No. | Material | Surface Treatment | Torque (N·m) |
| HG11-076-1 | HG11-076-1-1 | Iron | Nickel Plating | 0.1 |
| HG11-076-1-2 | 0.2 | |||
| HG11-076-1-3 | 0.3 | |||
| HG11-076-1-4 | 0.4 |

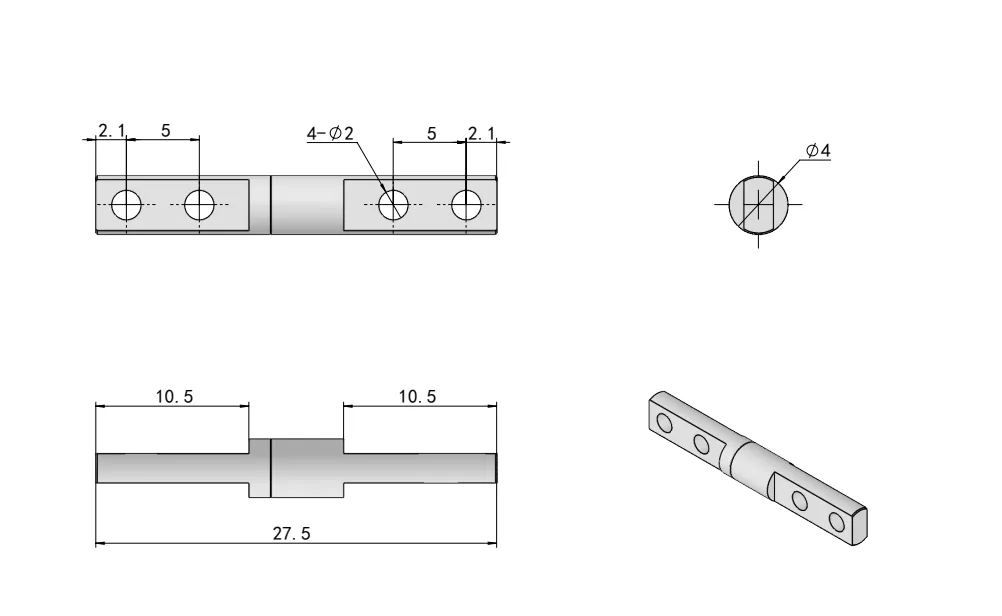

HG11-076-2
| Code | Item No. | Material | Surface Treatment | Torque (N·m) |
|---|---|---|---|---|
| HG11-076-2 | HG11-076-2-1 | Iron | Nickel Plating | 0.1 |

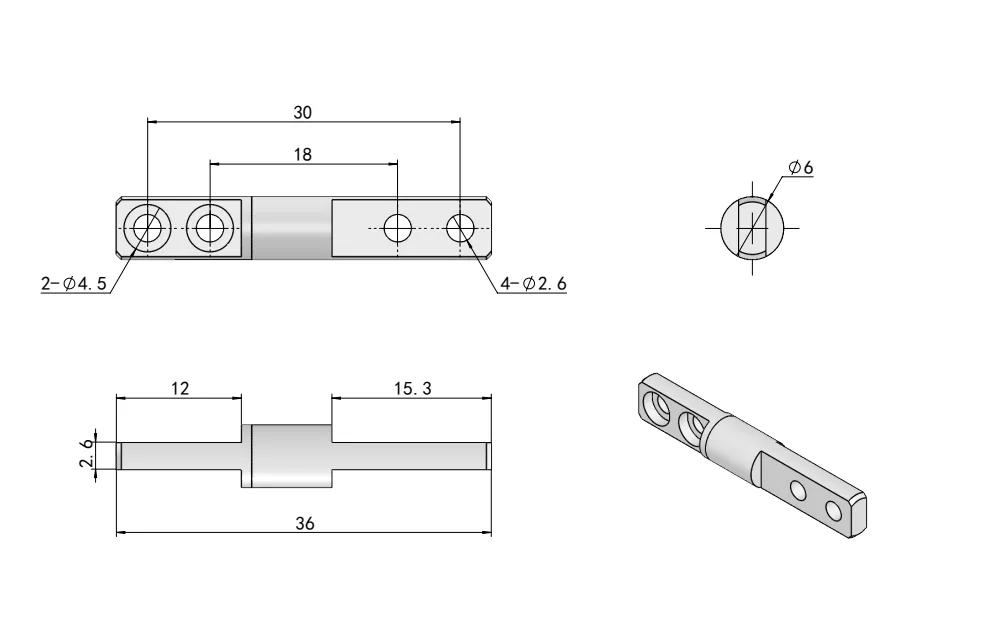

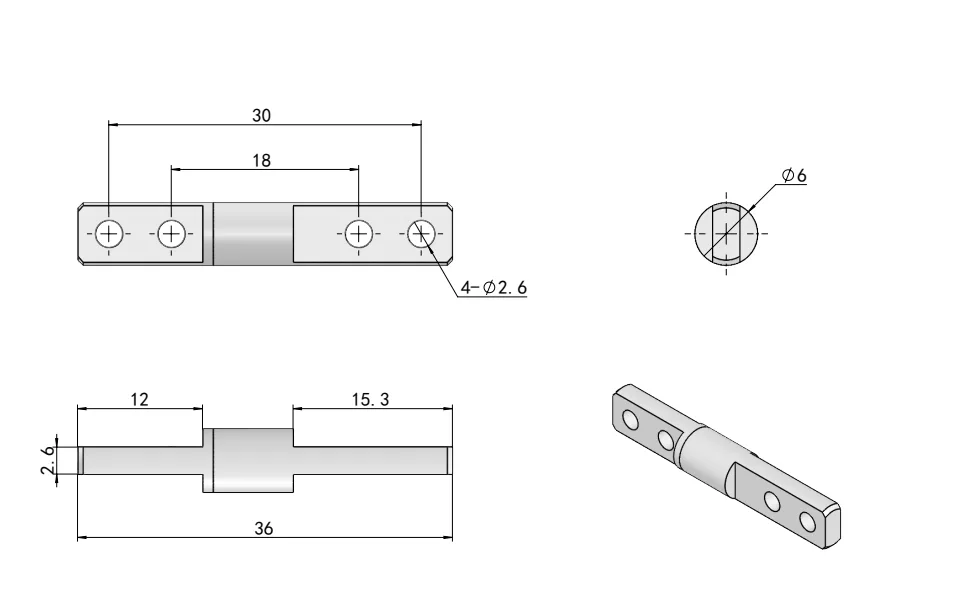

HG11-076-3
| Code | Item No. | Material | Surface Treatment | Torque (N·m) |
| HG11-076-3 | HG11-076-3-3 | Iron | Nickel Plating | 0.3 |
| HG11-076-3 | HG11-076-3-6 |

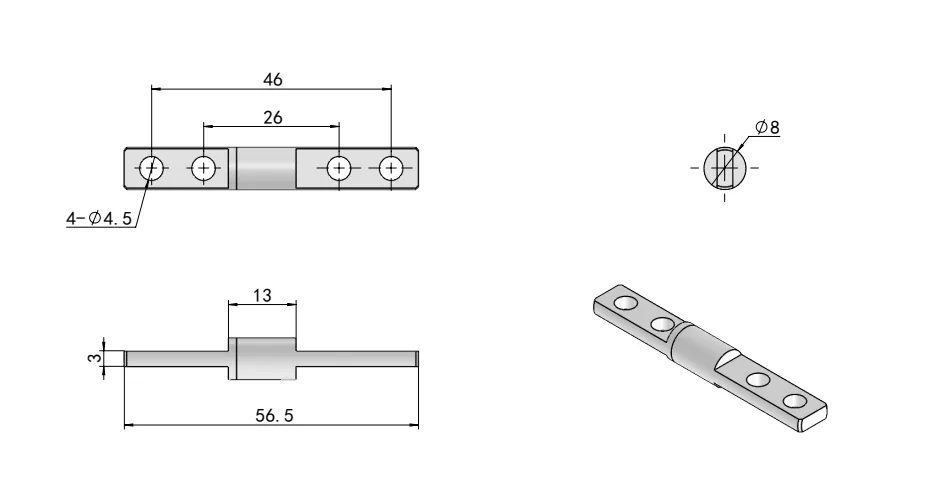

HG11-076-4
| Code | Item No. | Material | Surface Treatment | Torque (N·m) |
| XG11-076-4 | XG11-076-4-1.5 | Iron | Nickel Plating | 0.15 |
| XG11-076-4-3 | 0.3 | |||
| XG11-076-4-5 | 0.5 | |||
| XG11-076-4-10 | 1 | |||
| XG11-076-4-12 | 1.2 | |||
| XG11-076-4-15 | 1.5 | |||
| XG11-076-4-17 | 1.7 | |||
| XG11-076-4-20 | 2 | |||
| XG11-076-4-30 | 3 |

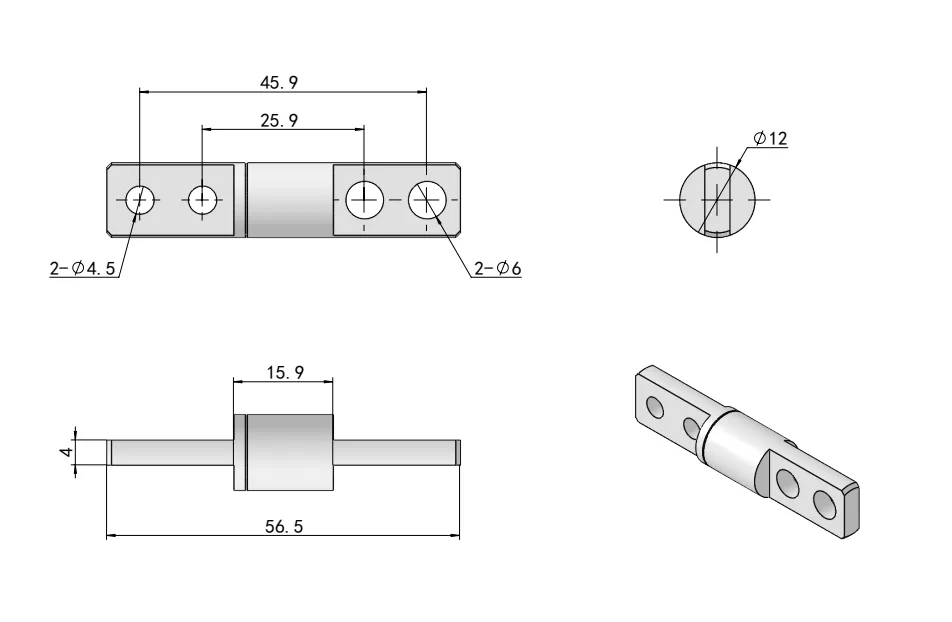

HG11-076-5
| Code | Item No. | Material | Surface Treatment | Torque (N·m) |
| HG11-076-5 | HG11-076-5-30 | Iron | Nickel Plating | 3 |
| HG11-076-5-3 | 0.3 |

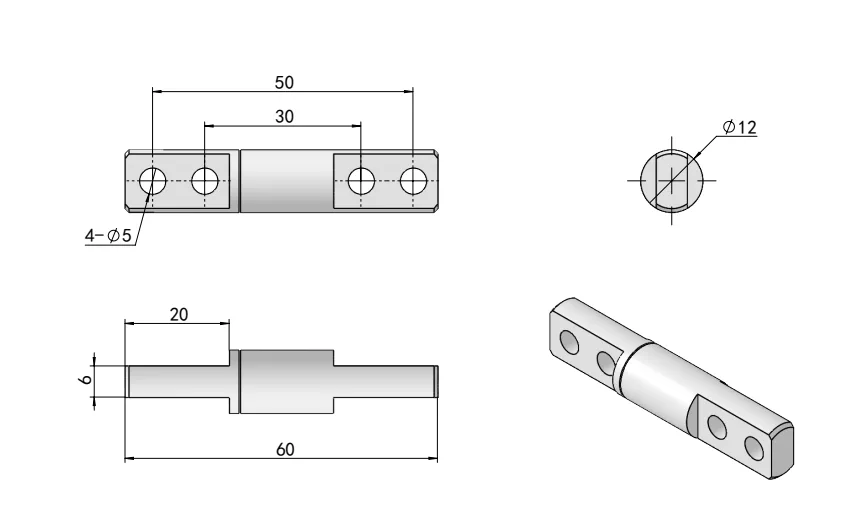

HG11-076-6
| Code | Item No. | Material | Surface Treatment | Torque (N·m) |
| HG11-076-6 | HG11-076-6-3 | Iron | Nickel Plating | 0.3 |
| HG11-076-6-6 | 0.6 | |||
| HG11-076-6-7 | 0.7 | |||
| HG11-076-6-8 | 0.8 | |||
| HG11-076-6-10 | 1 | |||
| HG11-076-6-15 | 1.5 | |||
| HG11-076-6-20 | 2 |

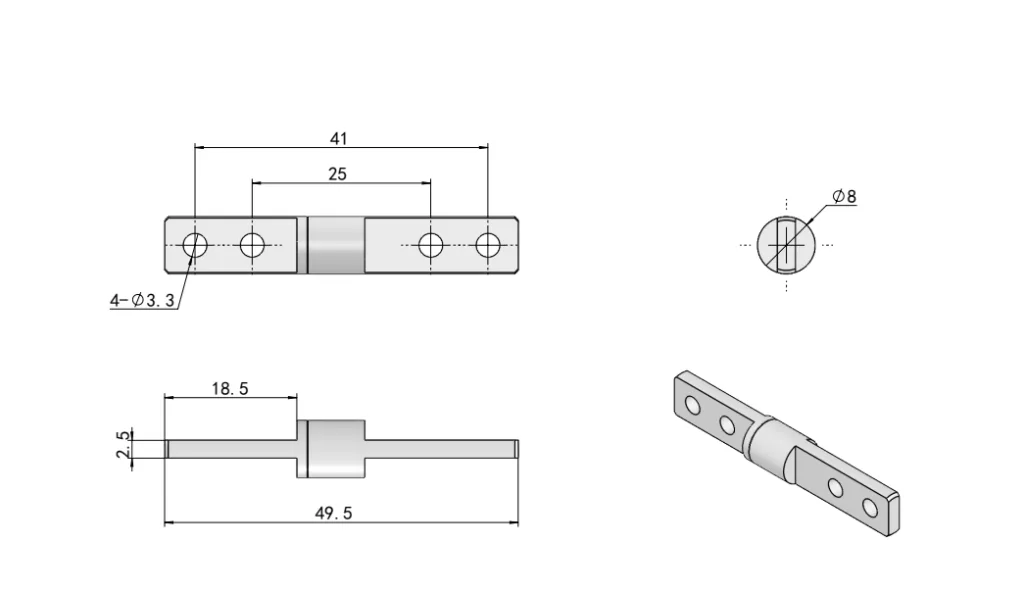

HG11-076-7
| Code | Item No. | Material | Surface Treatment | Torque (N·m) |
| HG11-076-7 | HG11-076-7-3 | Iron | Nickel Plating | 0.3 |
| HG11-076-7-5 | 0.5 | |||
| HG11-076-7-7 | 0.7 | |||
| HG11-076-7-10 | 1 | |||
| HG11-076-7-20 | 2 |
FAQ
What applications is this embedded torque hinge best suited for?
First, it fits precision-driven industries such as laptops, medical devices, automotive panels, and smart home equipment. Moreover, it delivers stable positioning and smooth motion in compact, high-frequency use scenarios.
Can you customize torque range and dimensions for specific projects?
Yes. We provide flexible customization, including torque adjustment (within 0.1–2.0 N·m), size optimization, and mounting structure changes based on your CAD drawings or load requirements.
How does the 360° round-shaft design improve performance?
The round-shaft structure ensures uniform torque distribution, reduces wear, and delivers consistent damping. As a result, it enables smooth rotation and reliable hold at any angle.
What materials and quality standards do you follow?
The hinge is made from durable iron with controlled machining and surface treatment. We follow strict internal QC processes, including torque life cycle testing and corrosion resistance verification to ensure long-term reliability.
What is your production lead time and after-sales policy?
Standard models are typically shipped within 7–15 days. For custom orders, lead time depends on complexity. We support quality-based returns or replacements and provide technical support throughout the product lifecycle.
