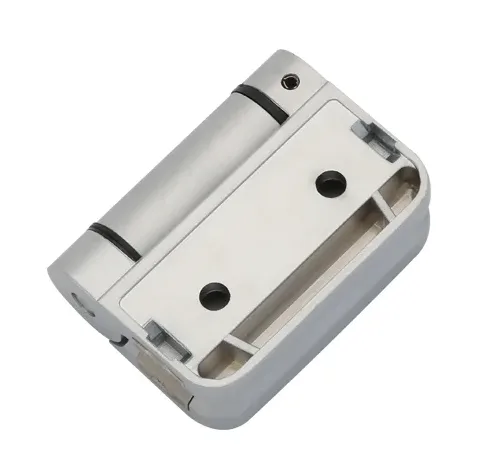

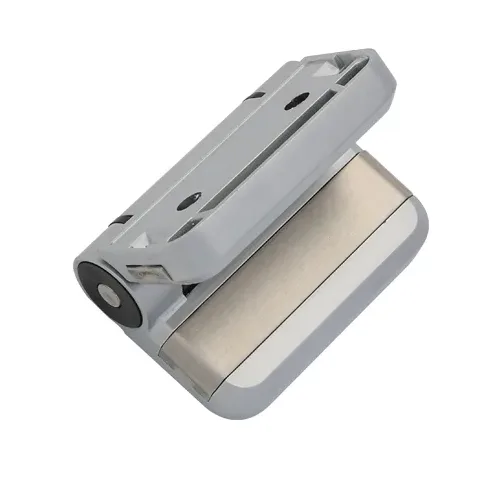

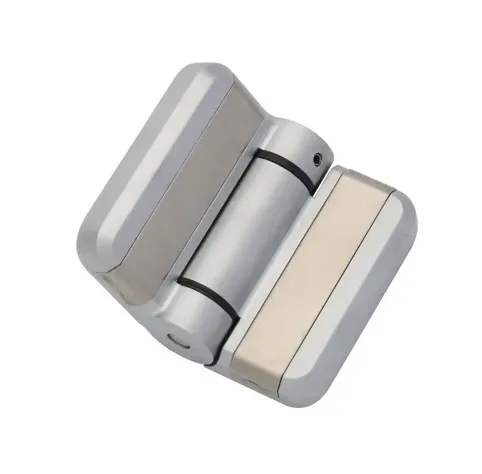

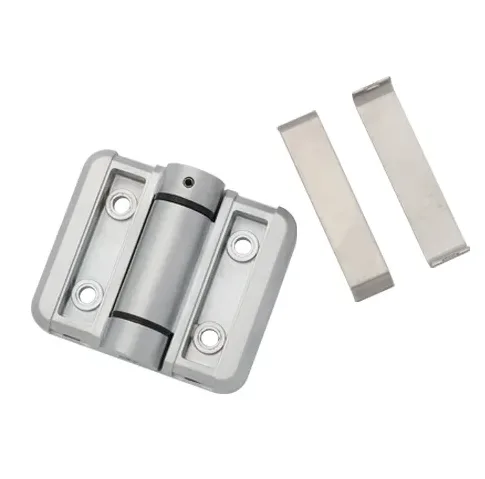

4-Position Detent Torque Hinge Low-Profile Zinc Alloy Design
PRODUCT PARAMETERS
Description
torque hinge is available in free-swing (HG11-069-1) and 4-position detent (HG11-069-2) versions. The detent model holds panels securely at 0°, 60°, 120°, and 180° for safe, hands-free operation. Made from durable zinc alloy, it features a low-profile, symmetrical design with easy screw mounting. Ideal for medical devices, communication racks, test equipment, and industrial panels requiring reliable positioning.

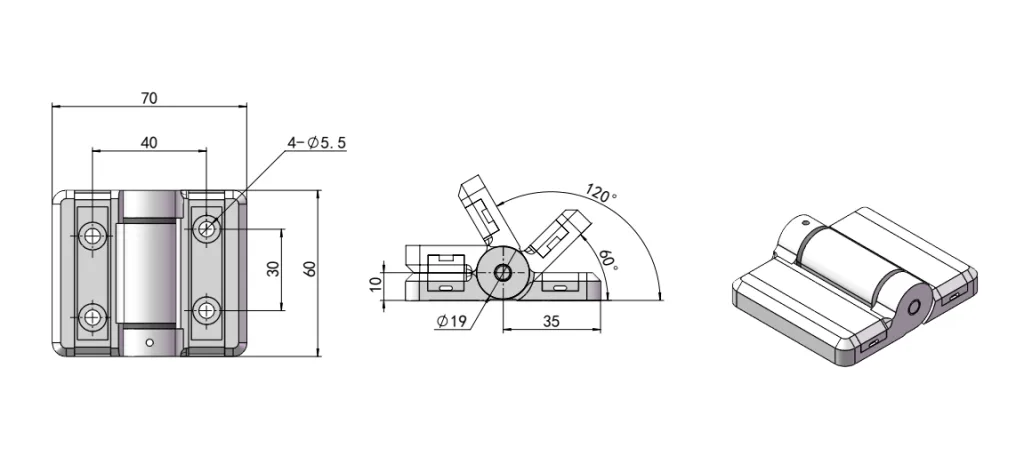

Dimension Drawing
| Model | Part Number | Function | Material | Surface Finish |
| HG11-069 | HG11-069-1 | Without positioning | ZDC (Zinc Die-Cast) | Matte |
| HG11-069-2 | With positioning |
FAQ
What is the difference between free-swing and detent versions?
The free-swing version allows continuous movement. In contrast, the detent version locks at 0°, 60°, 120°, and 180°, ensuring fixed positioning.
When should I choose the 4-position detent model?
If your application requires defined angles and hands-free operation, the detent model offers better control and safety.
What applications is this hinge suitable for?
It works well in medical devices, communication racks, test instruments, and industrial panels where reliable positioning is critical.
How does the hinge perform in daily use?
Thanks to its zinc alloy construction, it delivers stable performance and resists wear. Therefore, it maintains consistent function over time.
Is installation complex for this hinge?
No. With a symmetrical design and screw mounting, you can install it quickly. This simplifies assembly and reduces setup time.
