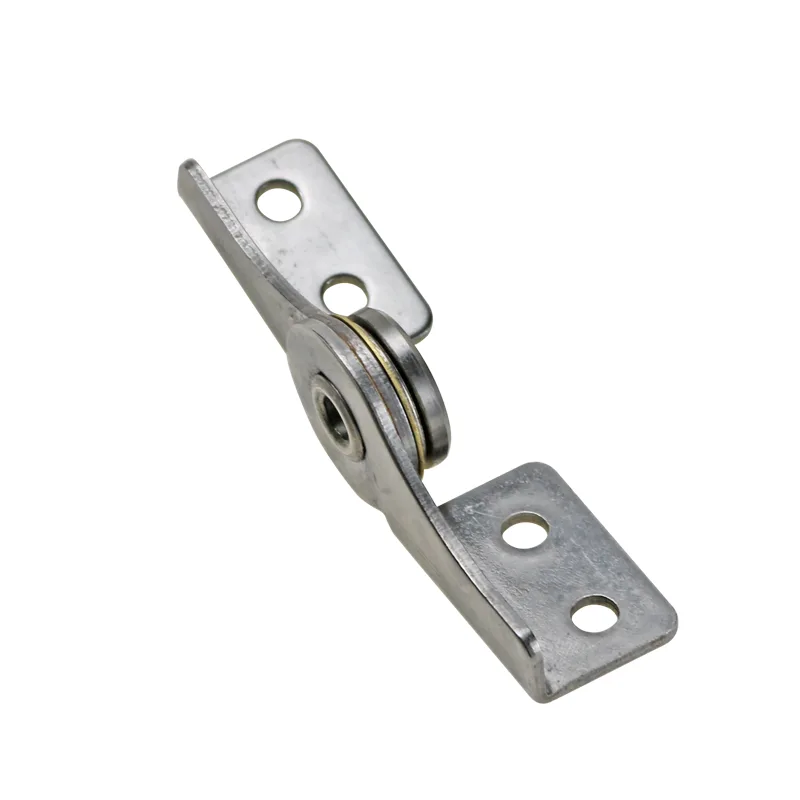

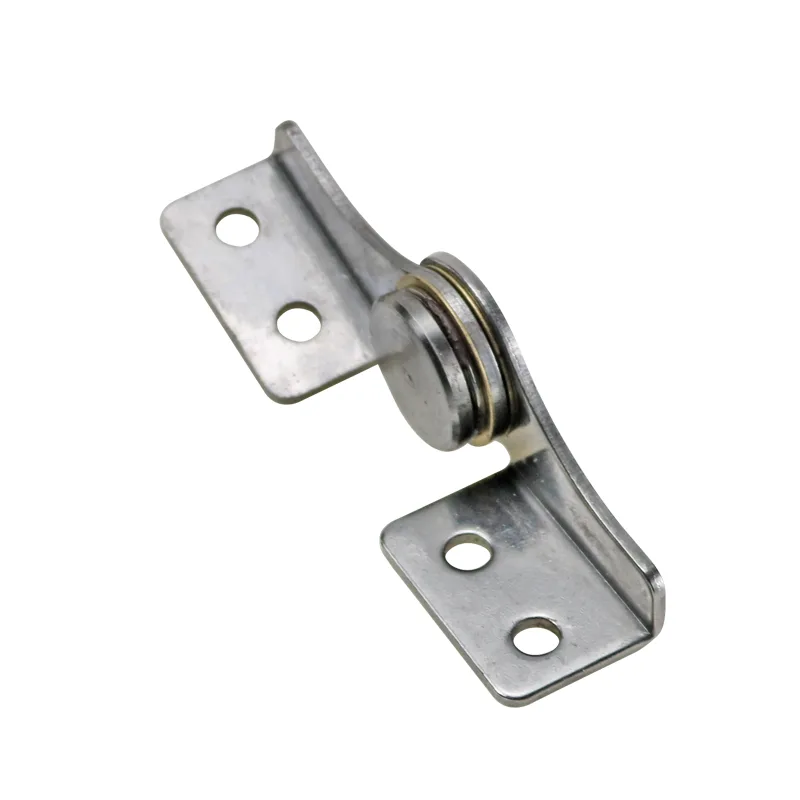

Stainless Steel Support Bracket Torque Hinge | 0.7–7.0 N·m
PRODUCT PARAMETERS
Description

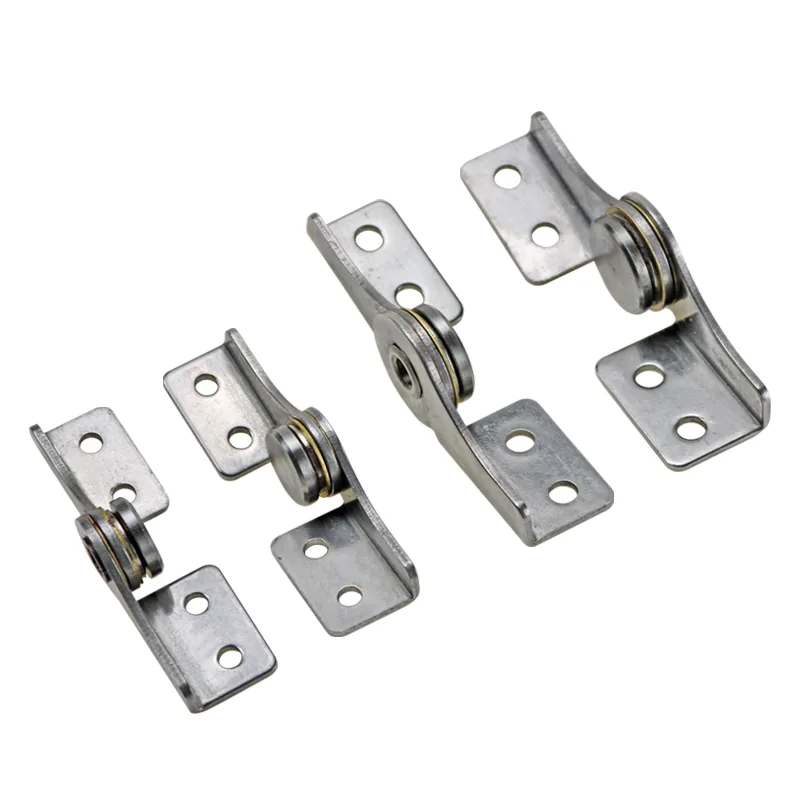

Stainless steel torque hinge designed for support brackets offers smooth, stable motion and precise torque control. Available in large (4.5/7.0 N·m, 80 mm) and small (0.7/2.0/3.0 N·m, 66 mm) sizes, it provides strong holding power and corrosion resistance—ideal for displays, panels, and industrial equipment requiring adjustable positioning.

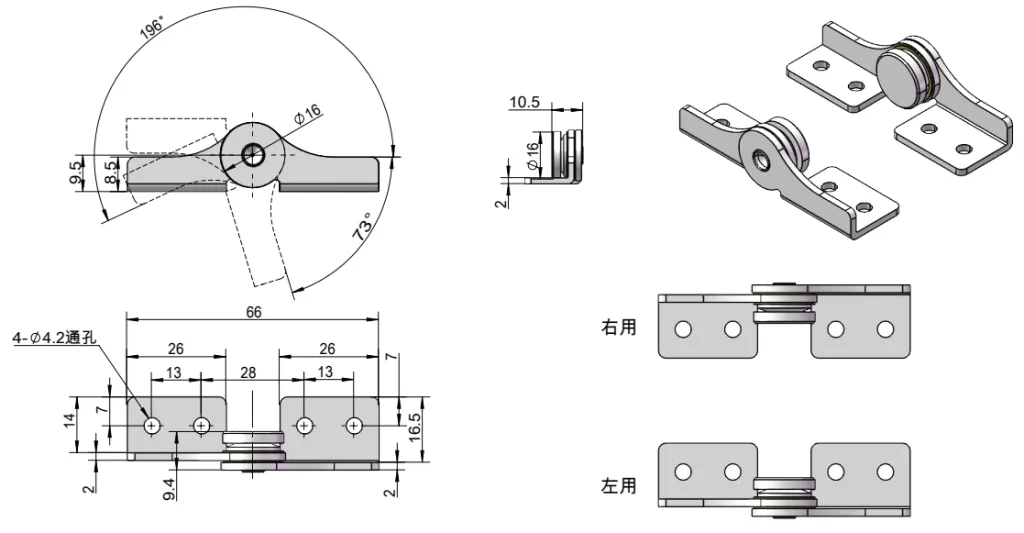

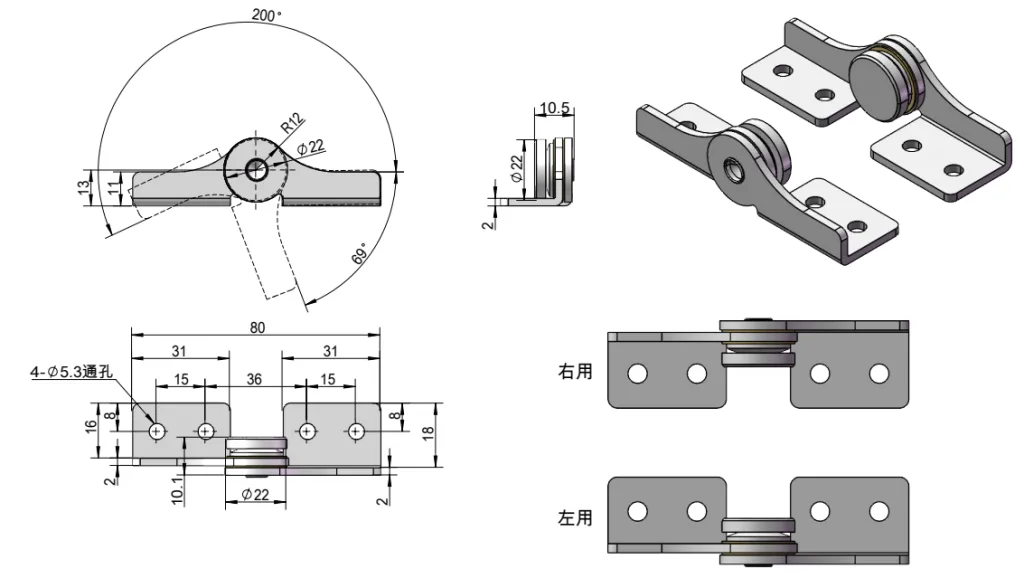

Dimension Drawing

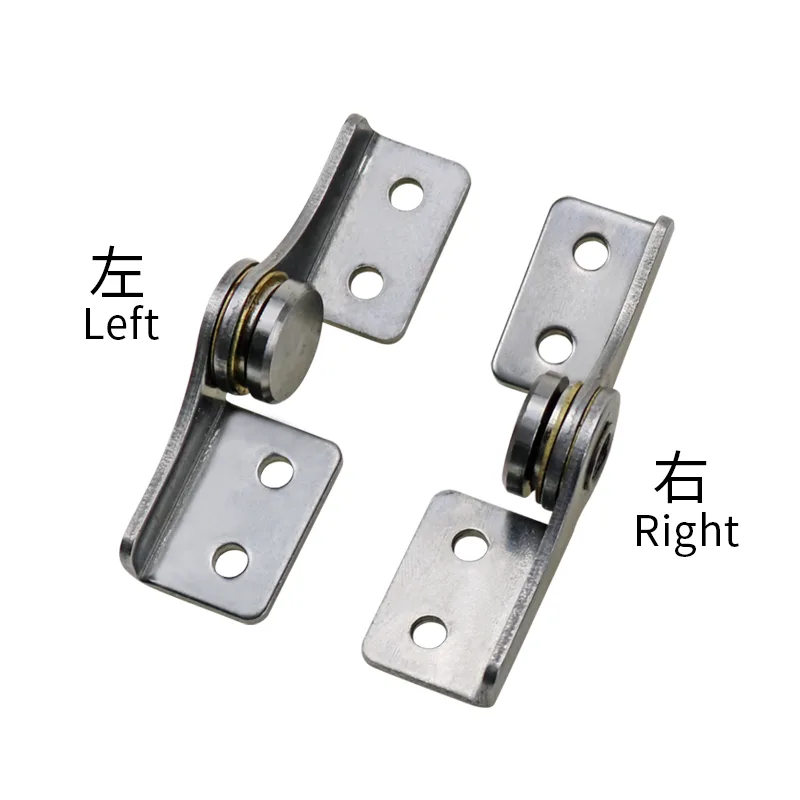

| Code | Item No. | Torque (N·m) | Torque (kgf·cm) | Material | Surface Treatment |
| HG11-008-1 | HG11-008-1-7L | 0.7 | 7 | SUS304 | Vibration polished |
| HG11-008-1-7R | |||||
| HG11-008-1-20L | 2 | 20 | |||
| HG11-008-1-20R | |||||
| HG11-008-1-30L | 3 | 30 | |||
| HG11-008-1-30R |
| Code | Item No. | Torque (N·m) | Torque (kgf·cm) | Material | Surface Treatment |
| HG11-008-2 | HG11-008-2-45L | 4.5 | 45 | SUS304 | Vibration polished |
| HG11-008-2-45R | |||||
| HG11-008-2-70L | 7 | 70 | |||
| HG11-008-2-70R |
FAQ
What applications are suitable for the Stainless Steel Support Bracket Torque Hinge?
This torque hinge supports displays, control panels, industrial equipment, and automation systems. It delivers smooth motion and precise positioning, ensuring stable and adjustable support.
What sizes and torque options are available?
The hinge is offered in two configurations:
Large Size (80 mm): 4.5 N·m and 7.0 N·m
Small Size (66 mm): 0.7 N·m, 2.0 N·m, and 3.0 N·m
These options allow engineers to select the optimal torque for varying load and performance requirements.
What are the advantages of stainless steel construction?
High-quality stainless steel provides excellent corrosion resistance, superior strength, and long service life. It performs reliably in demanding industrial, medical, and outdoor environments.
How does the hinge ensure stable and precise positioning?
The precision torque mechanism provides controlled resistance and free-stop functionality, enabling displays and panels to hold their position securely without additional support or locking devices.
Do you offer OEM customization and global B2B supply?
We deliver OEM and ODM solutions with customized torque, dimensions, mounting options, and finishes. Strict quality control and efficient global logistics guarantee a reliable procurement experience.
