Stainless Steel Free-Stop Torque Hinge | 360° | 0.7–3.0 N·m
PRODUCT PARAMETERS
Description

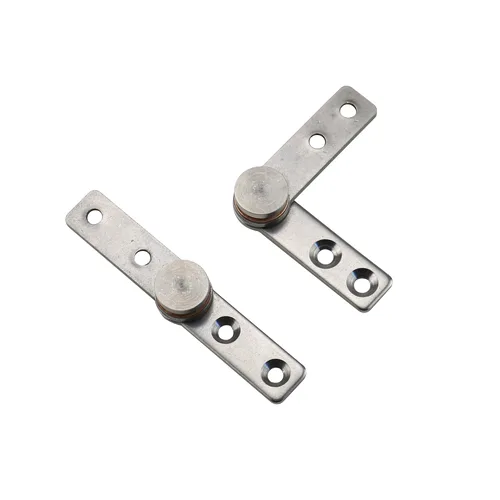

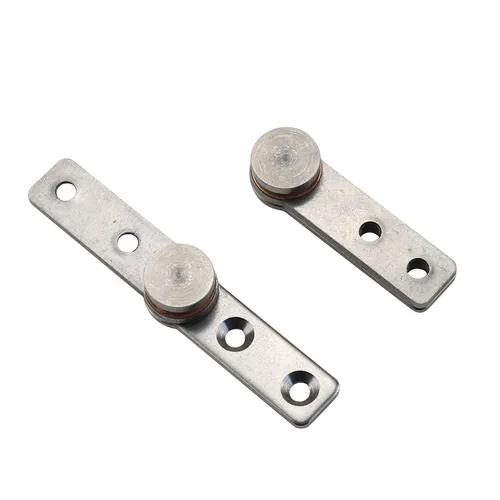

Corrosion-resistant stainless steel torque hinge with a polished finish. Available in 86×14mm and 92×14mm sizes, it offers 360° rotation, free-stop at any angle, and torque options of 0.7, 1.0, 2.0, and 3.0 N·m—ideal for precision instruments and industrial equipment.

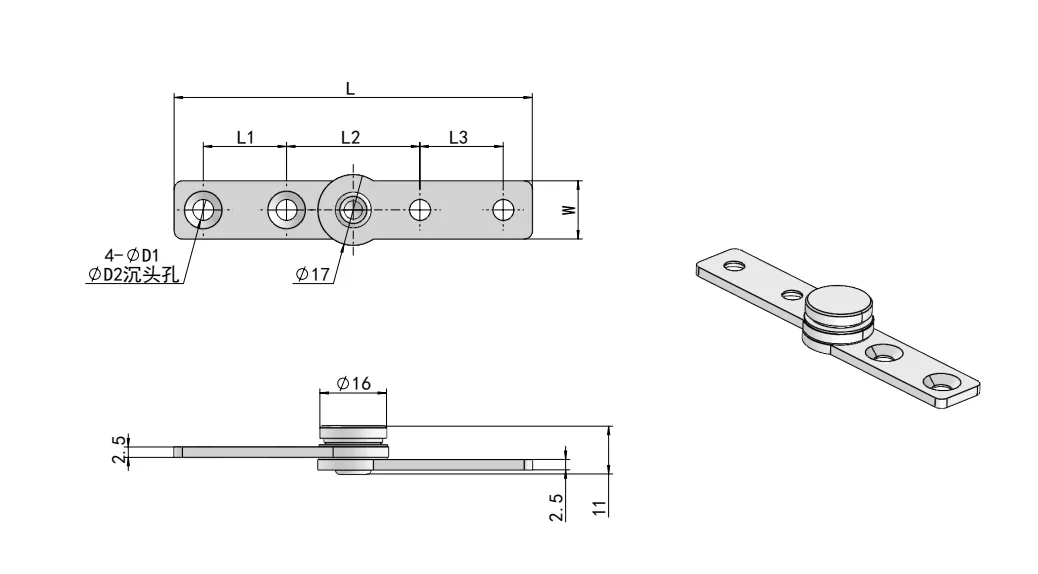

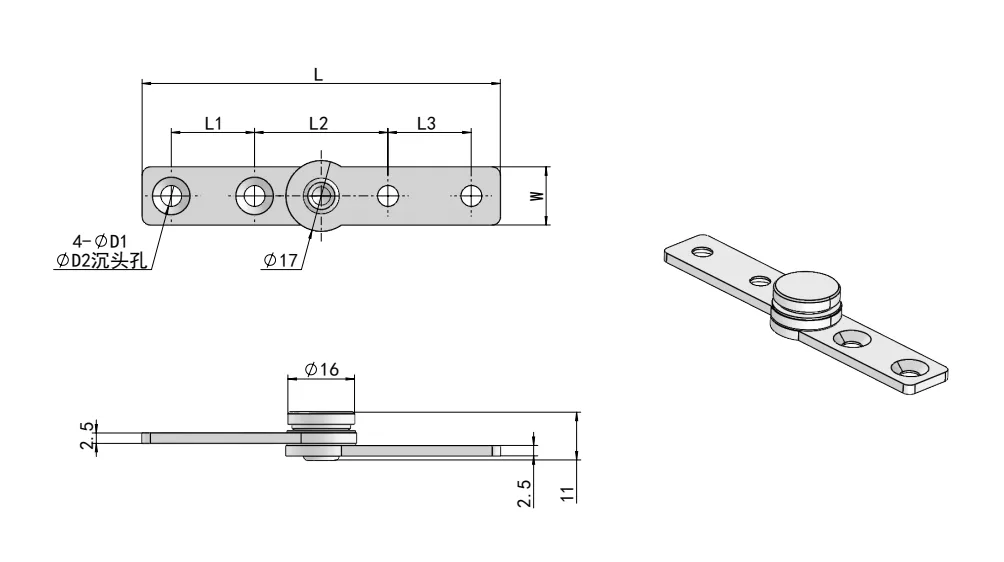

Dimension Drawing
| Code | Item No. | L | L1 | L2 | L3 | D1 | D2 | W | Torque (N·m) | Material | Surface Treatment |
| HG11-030 | HG11-030-1-7 | 86 | 20 | 32 | 20 | 4.2 | 8.8 | 14 | 0.7 | SUS304 | Vibratory Finishing |
| HG11-030-1-10 | 1 | ||||||||||
| HG11-030-1-20 | 2 | ||||||||||
| HG11-030-1-30 | 3 | ||||||||||
| HG11-030-2-7 | 92 | 14 | 50 | 14 | 4.8 | 9.5 | 14 | 0.7 | |||
| HG11-030-2-10 | 1 | ||||||||||
| HG11-030-2-20 | 2 | ||||||||||
| HG11-030-2-30 | 3 |
FAQ
What material is this torque hinge made of and what surface treatment does it use?
Primarily, this torque hinge is constructed from corrosion-resistant stainless steel with a polished finish. As a result, it ensures strong durability and a clean appearance for long-term industrial use.
What dimensions are available for this stainless steel torque hinge?
Specifically, this hinge comes in two standard sizes: 86×14mm and 92×14mm. Accordingly, it can adapt to different installation spaces in precision instruments and equipment.
What torque specifications does this torque hinge support?
In detail, this torque hinge provides multiple torque options including 0.7, 1.0, 2.0, and 3.0 N·m. Moreover, users can select the appropriate torque level based on their actual load and positioning requirements.
Does this torque hinge support 360° rotation and arbitrary angle positioning?
Indeed, this hinge fully supports 360° rotation. At the same time, it delivers reliable free-stop at any angle without sagging, ensuring stable operation in precision applications.
What are the typical applications for this polished stainless steel torque hinge?
Overall, thanks to its corrosion resistance and stable performance, it is highly suitable for precision instruments and various industrial equipment. Additionally, it performs well in environments requiring both durability and accurate positioning.
