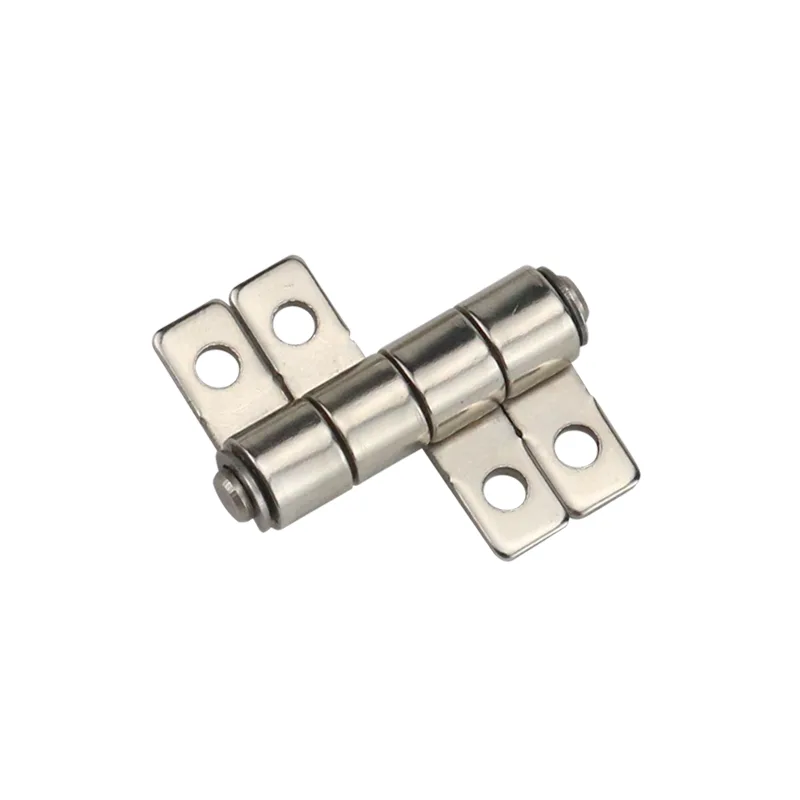

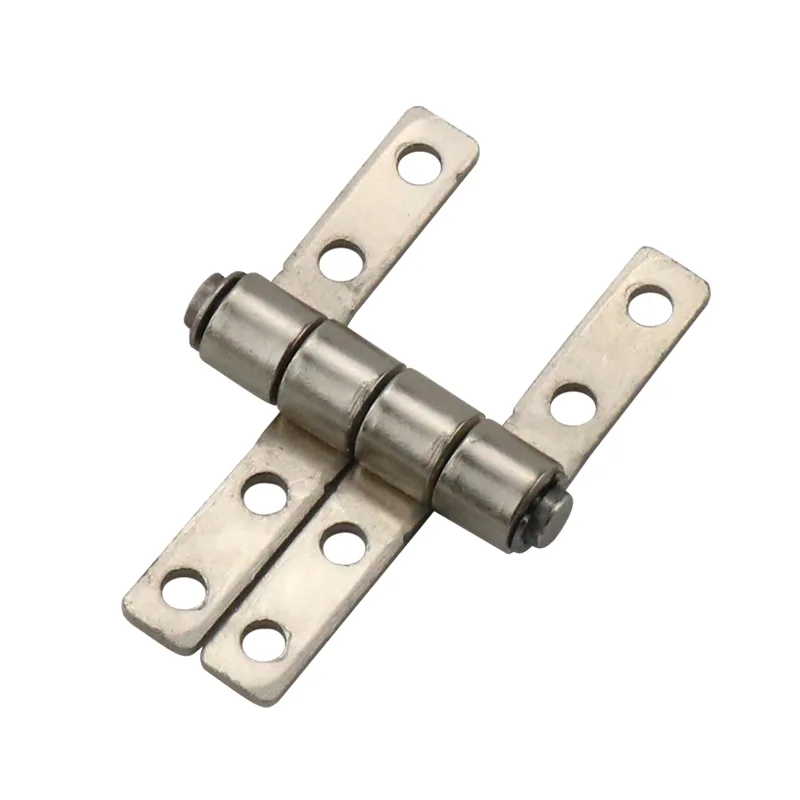

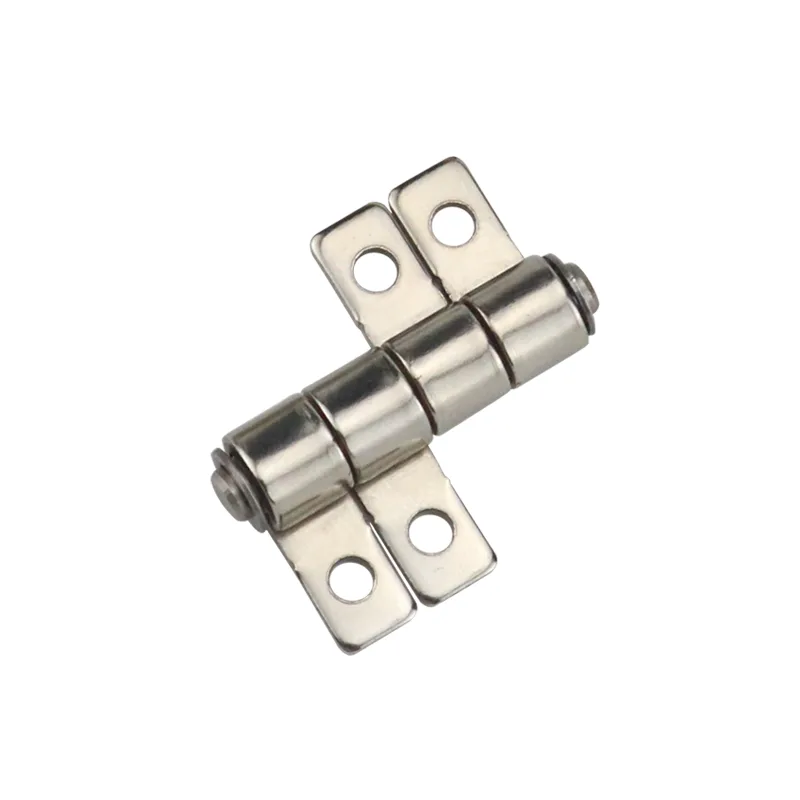

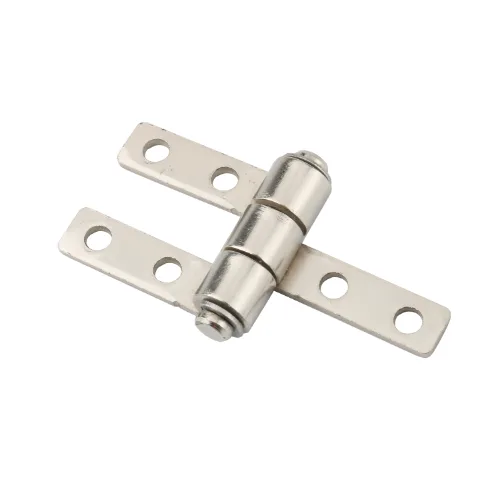

SK7 Torque Hinge 360° for Cabinet Lids
PRODUCT PARAMETERS
Description
SK7 torque hinge for cabinet lids and flip panels. Available in left and right versions with multiple styles, it allows 360° rotation and holds securely at any angle. Ideal for compact devices and electronic enclosures.

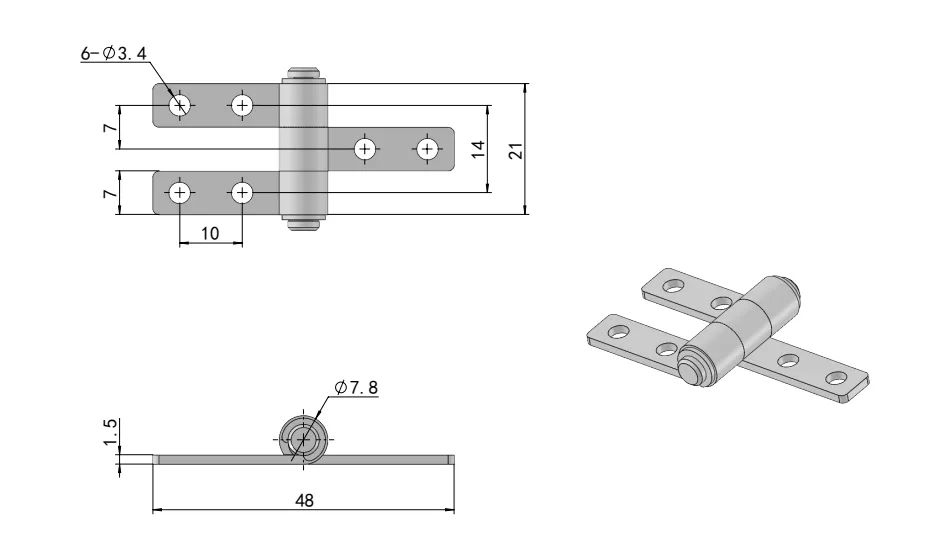

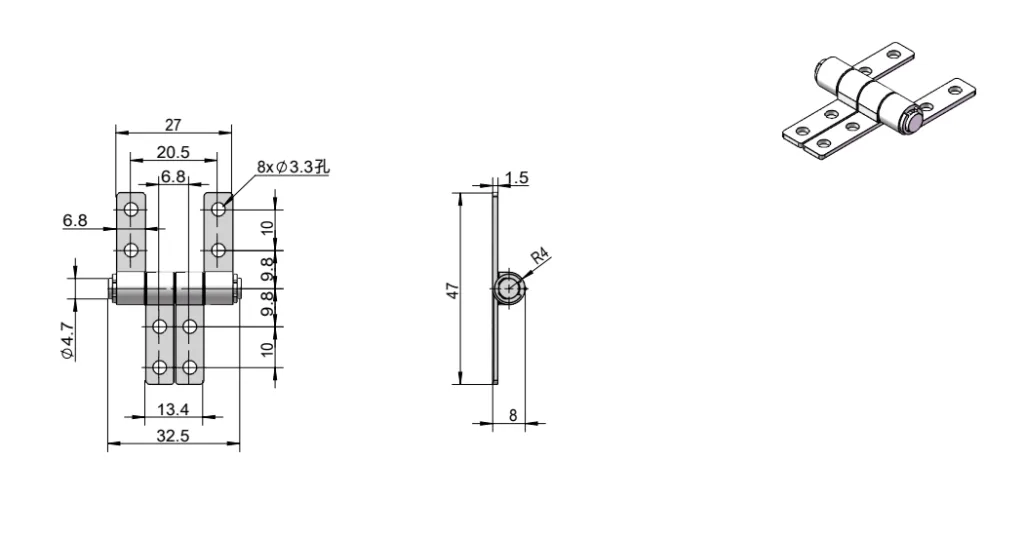

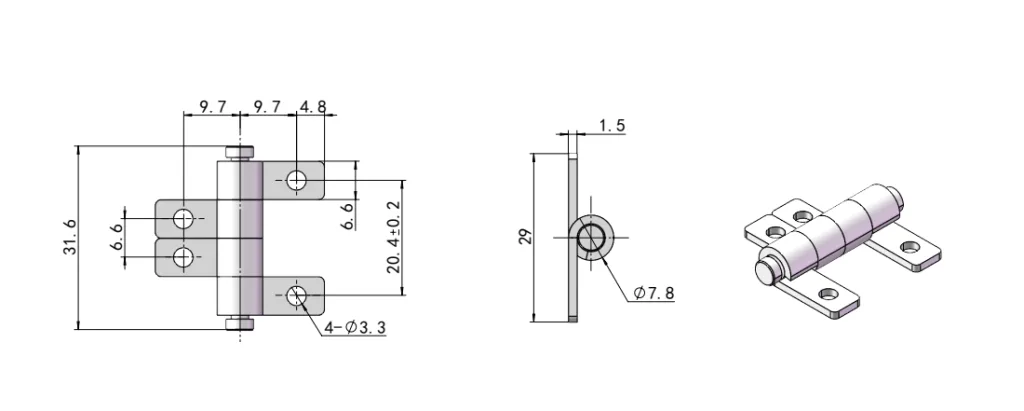

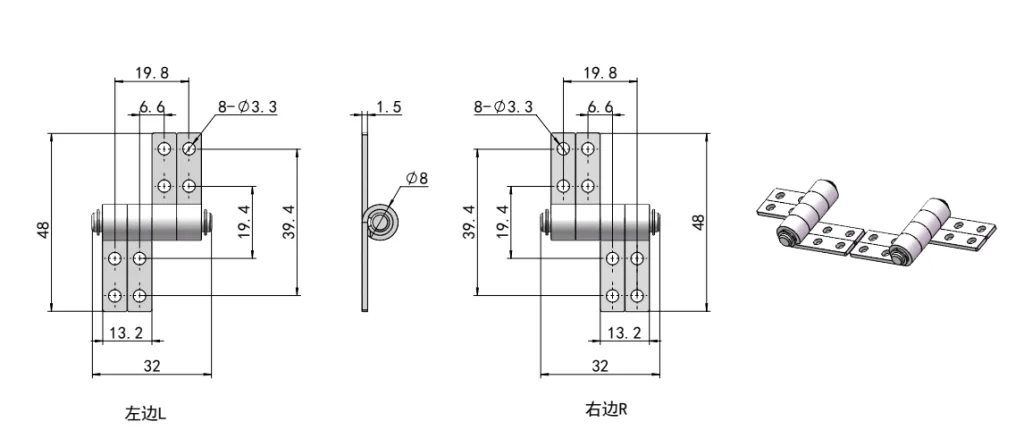

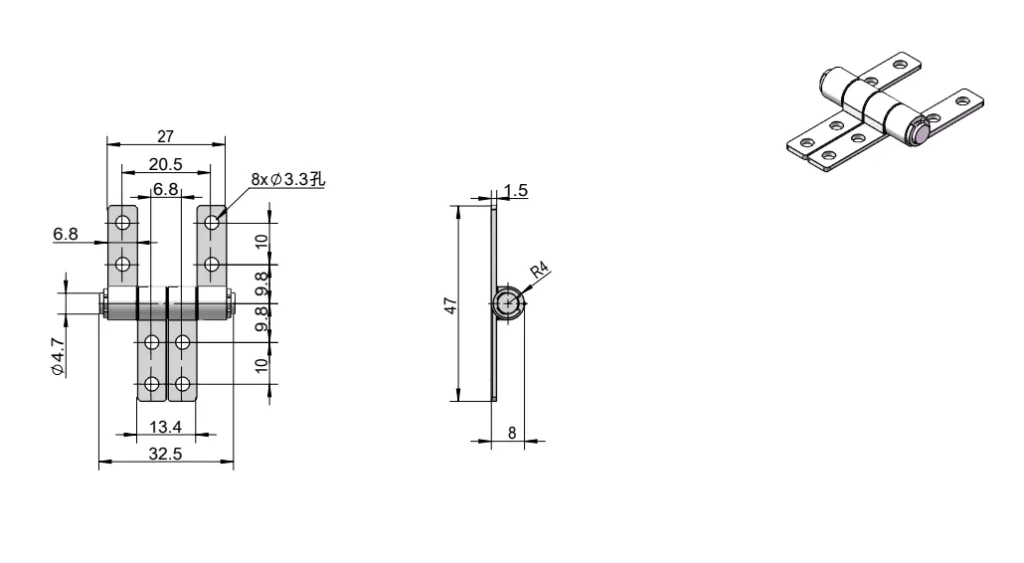

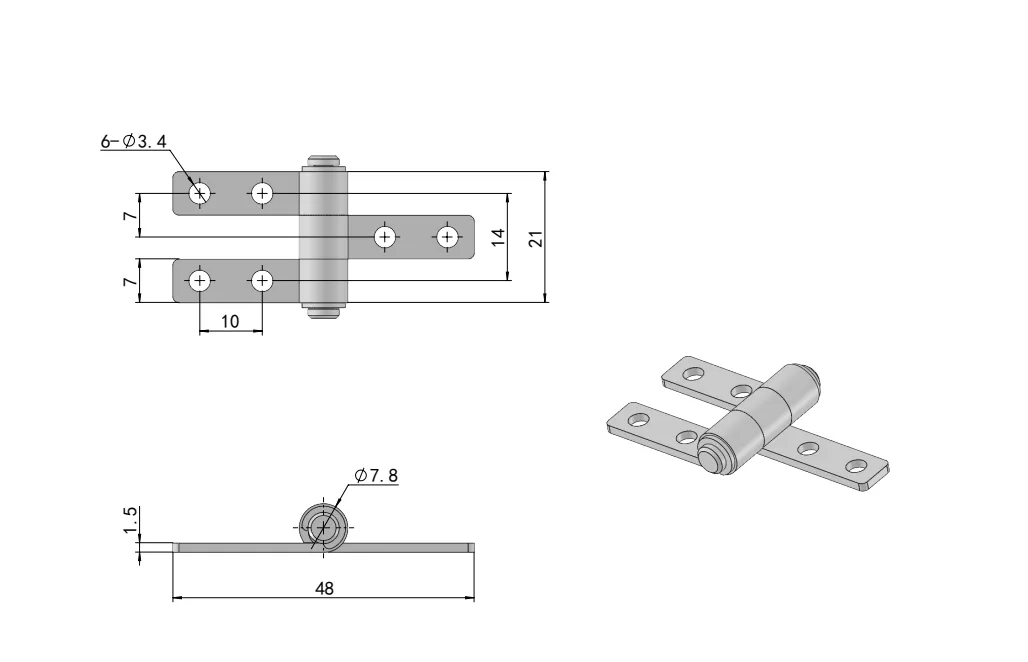

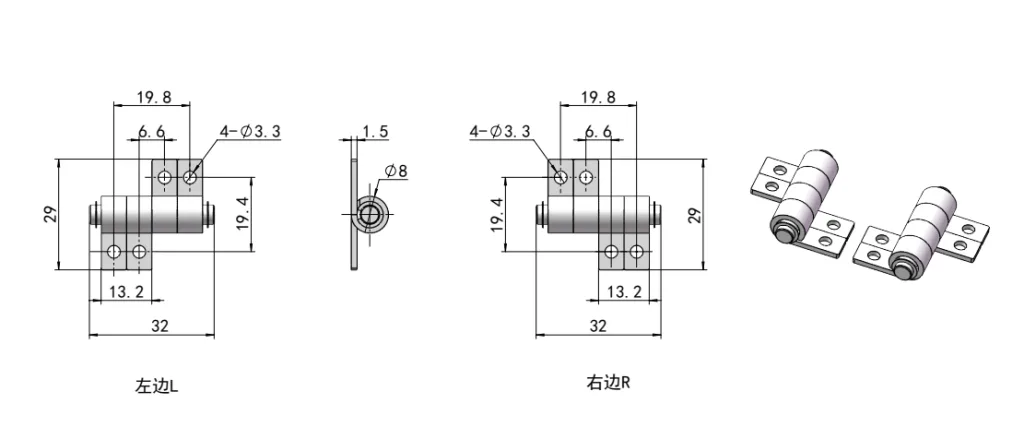

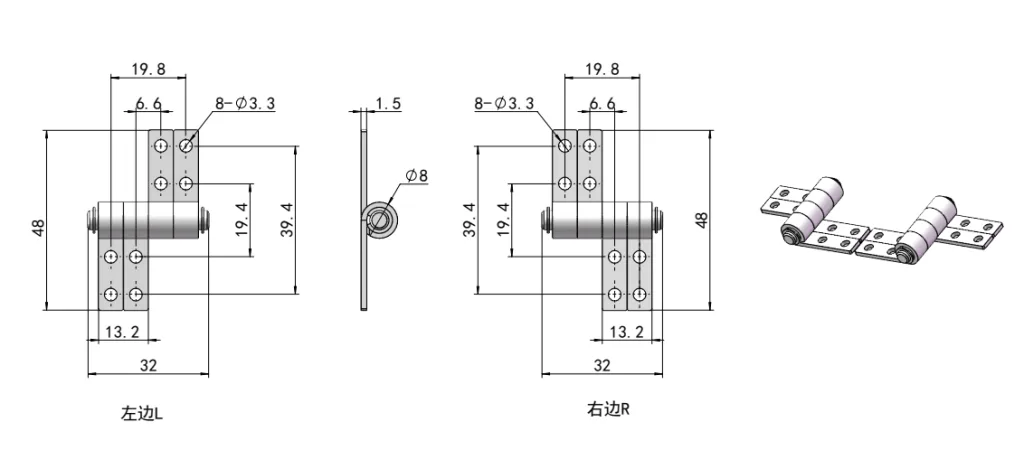

Dimension Drawing
| Code | Item No. | Torque N·m | Torque kgf·cm | Material | Surface Treatment |
| HG11-050 | HG11-050-3 | 0.3 | 3 | SK7 | Nickel Plated |
| HG11-050-5 | 0.5 | 5 | |||
| HG11-050-10 | 1 | 10 | |||
| HG11-050-20 | 2 | 20 |
| Code | Item No. | Torque N·m | Material | Surface Treatment |
| HG11-145 | HG11-145-3 | 0.3 | SK7 | Nickel Plated |
FAQ
Can the SK7 torque hinge be customized for specific applications?
Yes. We support torque tuning, size adjustments, and style variations. Additionally, our engineering team validates performance based on your device requirements.
What makes the SK7 hinge suitable for compact devices?
Its compact design and 360° rotation enable flexible positioning. As a result, it fits tight spaces and holds panels securely at any angle.

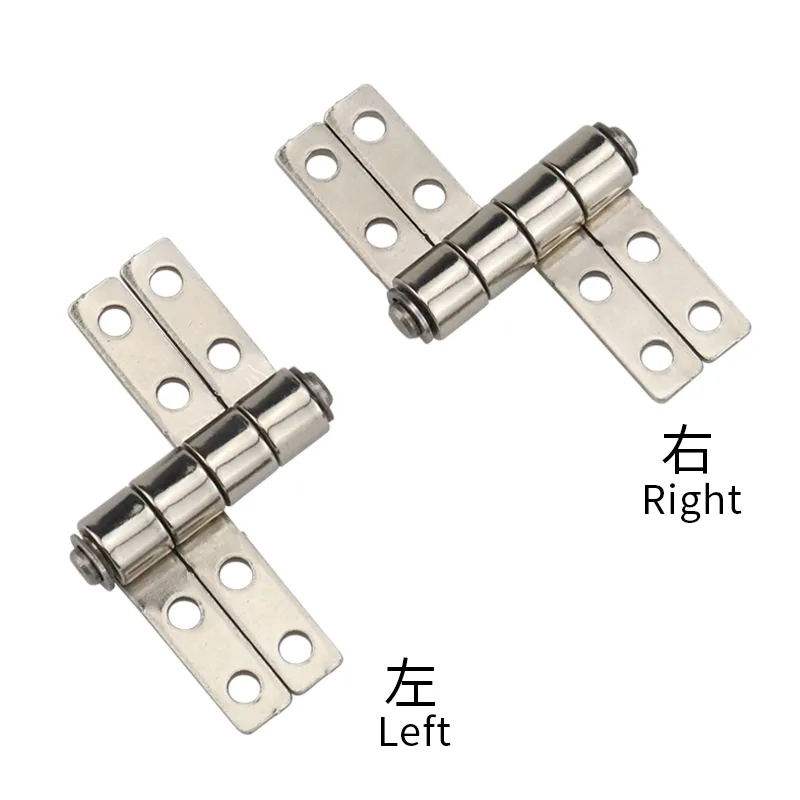

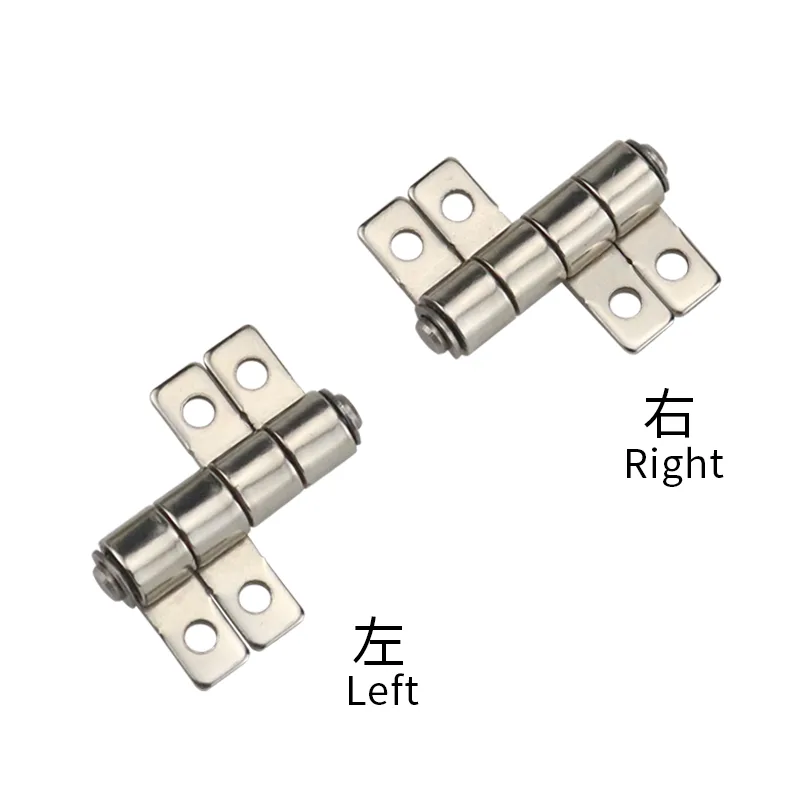

Do you offer left and right versions?
Yes. Both configurations are available. Therefore, installation is straightforward across different enclosure designs.
How do you ensure consistent torque performance?
Each hinge undergoes torque and cycle testing. Moreover, strict quality control ensures stable, long-term holding force.
What are your lead time and delivery options?
Standard models ship quickly, while custom orders follow confirmed specs. Meanwhile, we support global shipping and responsive after-sales service.
