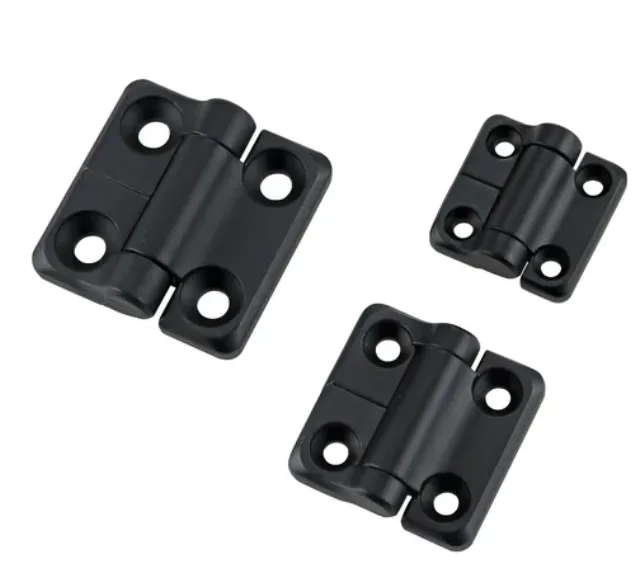

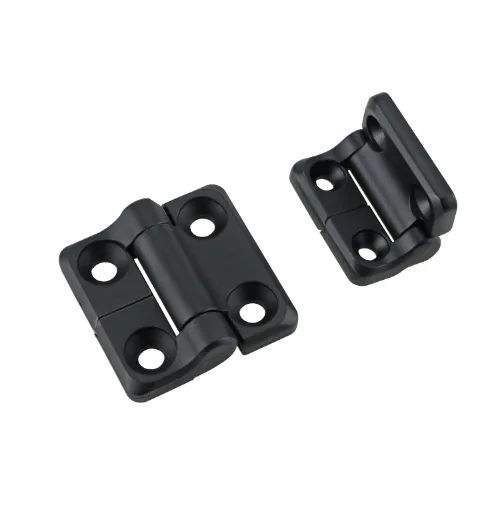

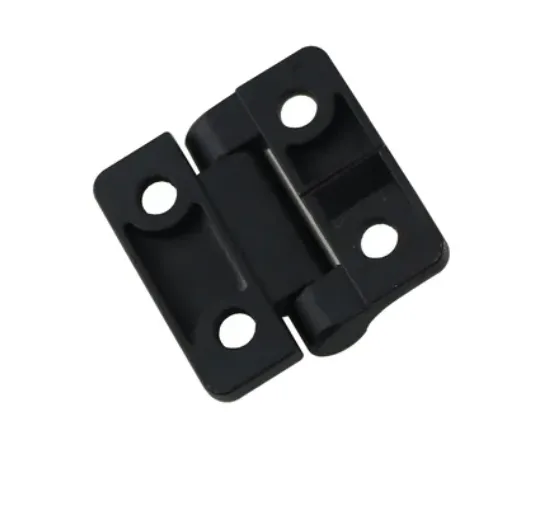

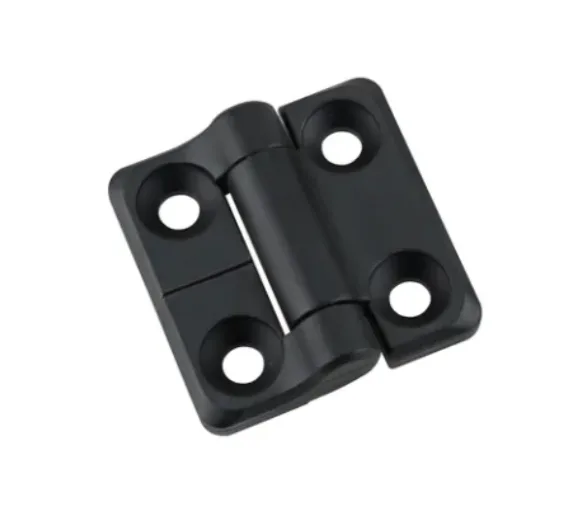

Heavy-Duty Torque Hinge 40/50/60 mm | Black Friction Hinge
PRODUCT PARAMETERS
Description
Heavy-Duty torque hinge, available in 40*40 mm, 50*50 mm, and 60*60 mm sizes with a sleek black, provides smooth, motion and holds securely at any angle. Ideal for control cabinets, medical devices, and high-end furniture, it delivers excellent load capacity, precise positioning, and lasting durability for safe, convenient operation.

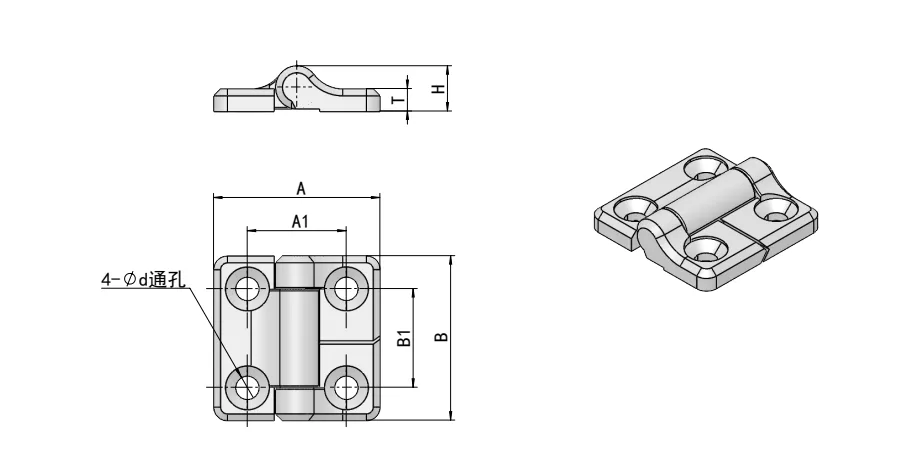

Dimension Drawing
| Code | Item No. | Torque (N·m) | Torque (kgf·cm) | A | B | A1 | B1 | H | T | D | d | Material | Surface Treatment |
| HG11-031-1 | HG11-031-1-13 | 1.3 | 13 | 60 | 60 | 36 | 36 | 17 | 8 | 17.6 | 8.4 | ZDC | Black |
| HG11-031-1-22 | 2.2 | 22 | |||||||||||
| HG11-031-1-32 | 3.2 | 32 | |||||||||||
| HG11-031-1-41 | 4.1 | 41 | |||||||||||
| HG11-031-2 | HG11-031-2-18 | 1.8 | 18 | 50 | 50 | 30 | 30 | 15 | 7 | 12.8 | 6.3 | ||
| HG11-031-2-23 | 2.3 | 23 | |||||||||||
| HG11-031-2-34 | 3.4 | 34 | |||||||||||
| HG11-031-3 | HG11-031-3-9 | 0.9 | 9 | 40 | 40 | 25 | 25 | 13.5 | 6 | 10.6 | 5.3 | ||
| HG11-031-3-14 | 1.4 | 14 | |||||||||||
| HG11-031-3-18 | 1.8 | 18 | |||||||||||
| HG11-031-3-34 | 3.4 | 34 |
FAQ
What applications are these heavy-duty torque hinges best suited for?
Primarily, they support control cabinets, medical devices, and premium furniture. In these scenarios, they ensure stable positioning, smooth movement, and reliable performance under frequent use.
How do I choose between 40 mm, 50 mm, and 60 mm hinge sizes?
First, match the hinge size to door weight and panel dimensions. Then, consider load requirements and mounting space. Larger sizes typically provide higher load capacity and stronger holding force.
How does this friction hinge maintain position at any angle?
It uses an internal torque mechanism to deliver consistent resistance. As a result, the hinge moves smoothly and holds securely without additional supports or locks.
Is the black finish suitable for industrial environments?
Yes, we apply a durable surface treatment that improves corrosion resistance and wear performance. Therefore, it performs well in both indoor industrial settings and demanding commercial environments.
Do you support OEM customization and bulk supply?
Absolutely. We customize torque levels, sizes, and finishes based on your specifications. Moreover, we ensure stable production capacity, consistent quality, and reliable lead times for B2B projects.
