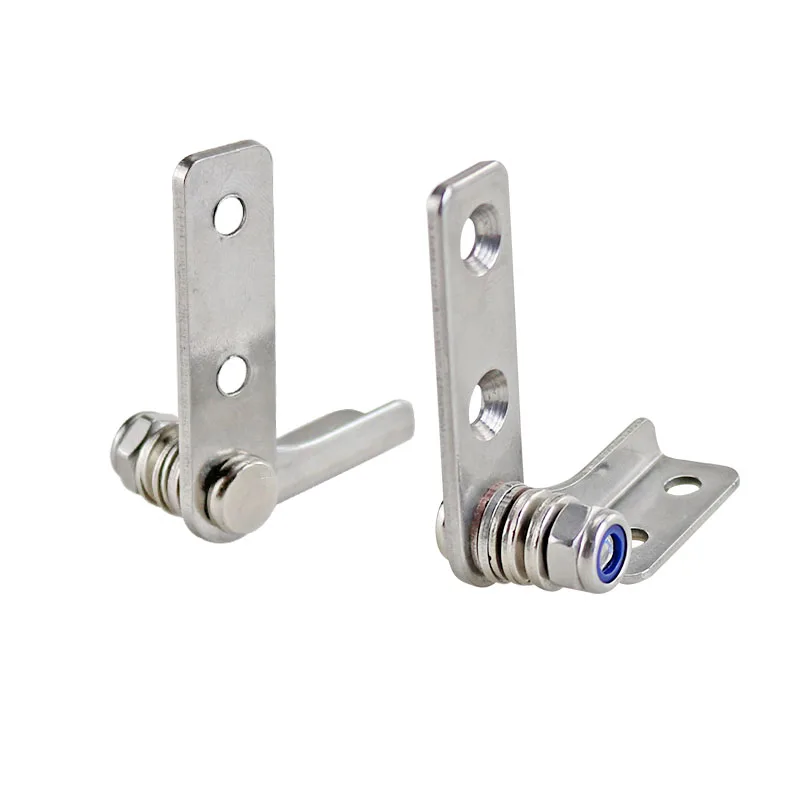

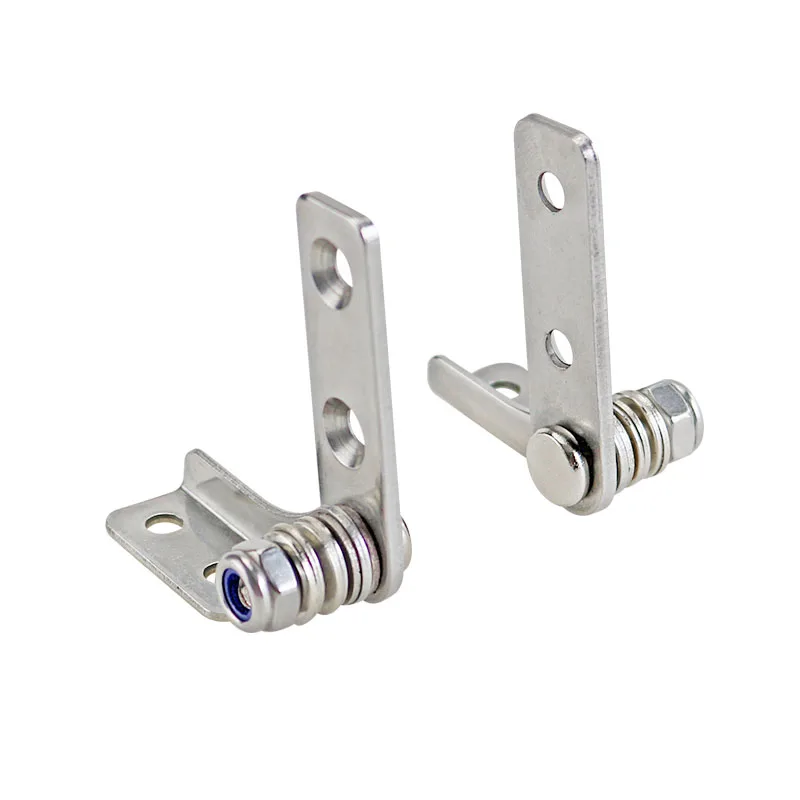

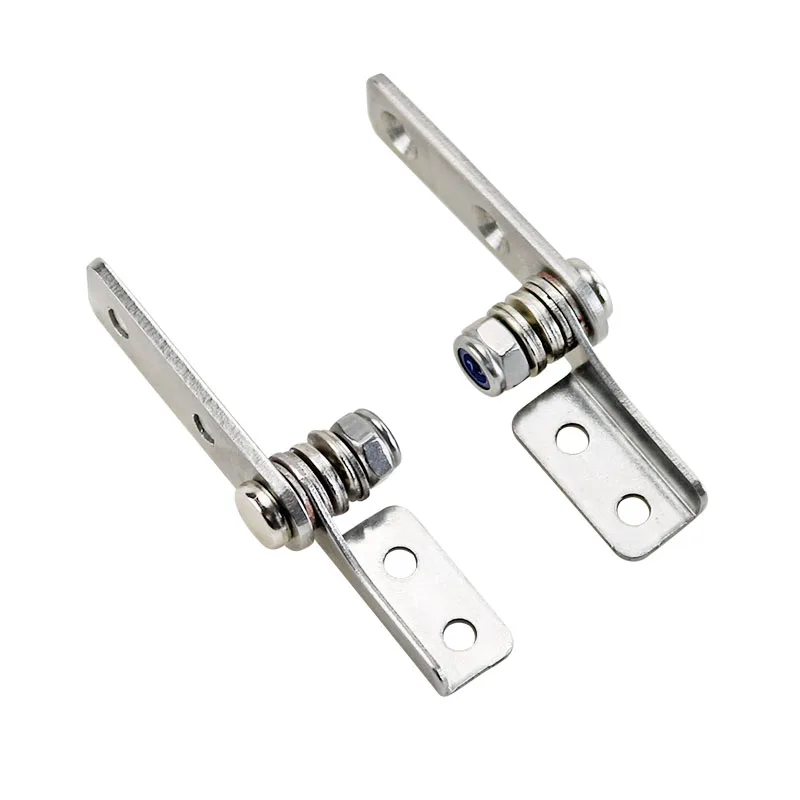

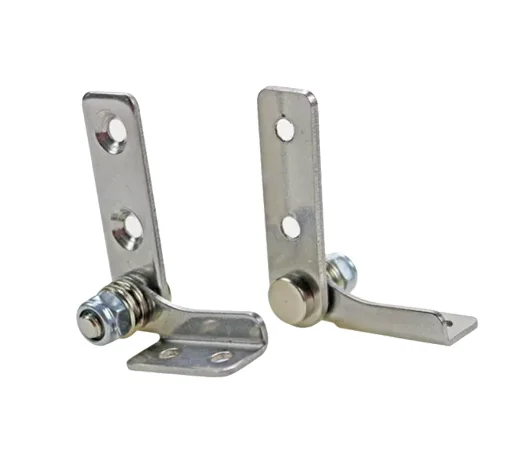

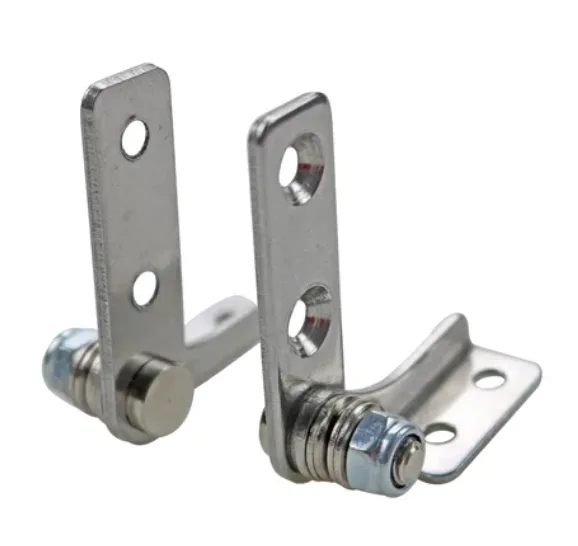

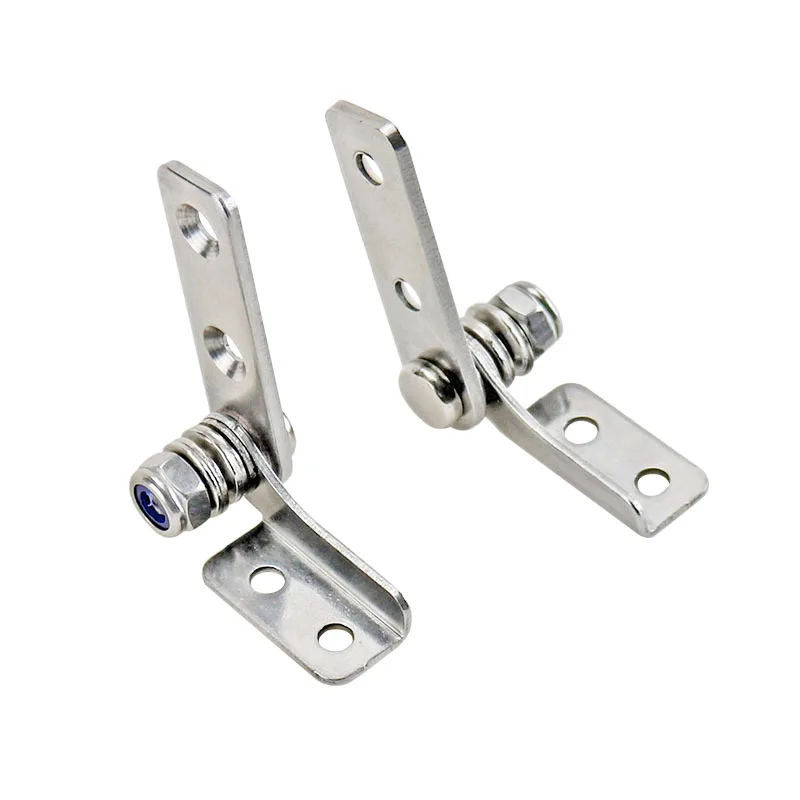

Adjustable Stainless Steel Torque Hinge 168° | Left & Right Options
PRODUCT PARAMETERS
Description
Adjustable stainless steel torque hinge, available in left and right versions with a 168° opening angle, offers precise positioning, smooth motion, and strong corrosion resistance. Ideal for control cabinets, medical devices, and outdoor enclosures, it ensures stable support and long-lasting performance in demanding environments.

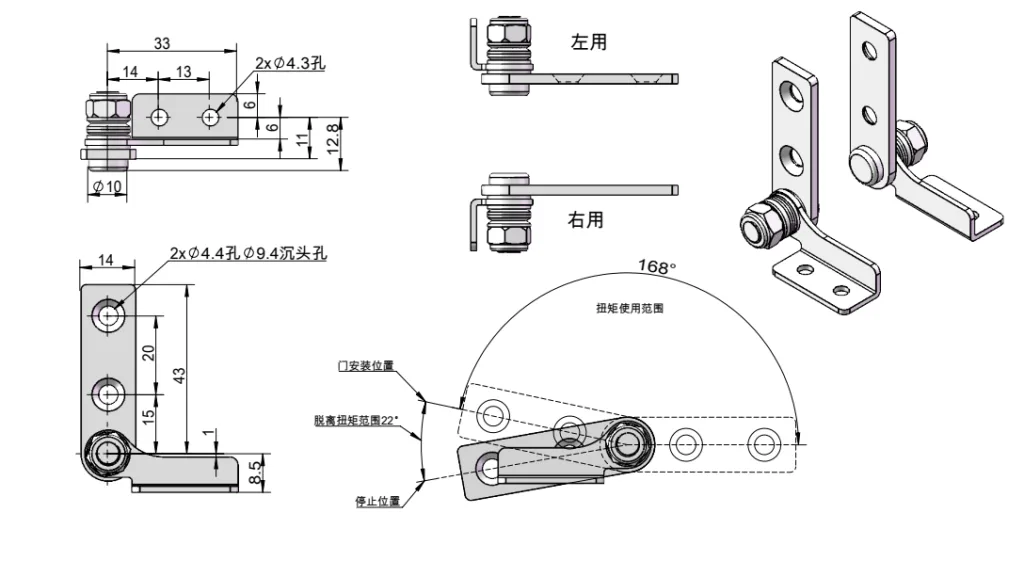

Dimension Drawing
| Code | Item No. | Torque (N·m) | Torque (kgf·cm) | Material | Surface Treatment |
| HG11-007 | HG11-007-4L | 0.4 | 4 | SUS304 | Vibration Polishing |
| HG11-007-4R | |||||
| HG11-007-15L | 1.5 | 15 | |||
| HG11-007-15R | |||||
| HG11-007-25L | 2.5 | 25 | |||
| HG11-007-25R |
FAQ
What applications suit a 168° adjustable torque hinge?
Primarily, it fits control cabinets, medical devices, and outdoor enclosures. In these use cases, it enables wide-angle opening while maintaining stable positioning and safe operation.
How does the 168° opening angle benefit equipment design?
First, it allows wider access for maintenance and operation. Then, it ensures controlled motion within a defined range, which improves safety and prevents over-rotation.
Do you provide left-hand and right-hand configurations?
Yes, we offer both left and right versions. In addition, we help you select the correct configuration based on installation direction and load requirements.
How does this stainless steel friction hinge perform in harsh environments?
We use corrosion-resistant stainless steel and apply strict surface treatments. As a result, the hinge performs reliably in humid, outdoor, and chemically exposed environments.
Can you support OEM customization and bulk supply?
Absolutely. We adjust torque levels, dimensions, and finishes based on your drawings. Moreover, we ensure consistent quality, scalable production, and stable lead times for industrial B2B projects.
