360° Adjustable Torque Hinge for Precision Positioning
PRODUCT PARAMETERS
Description

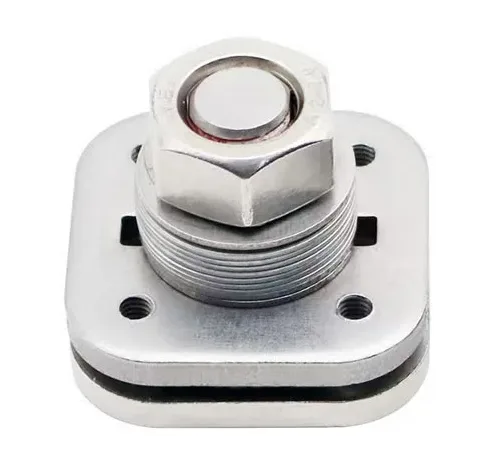

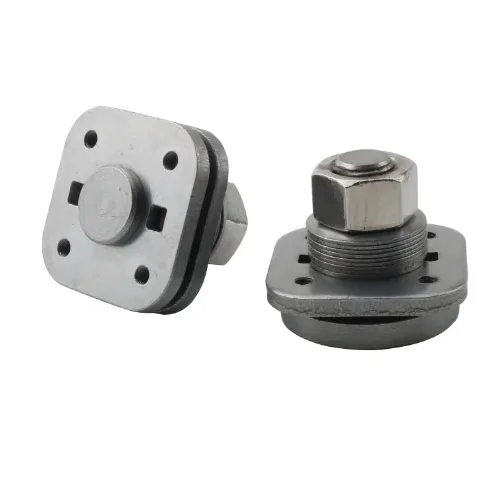

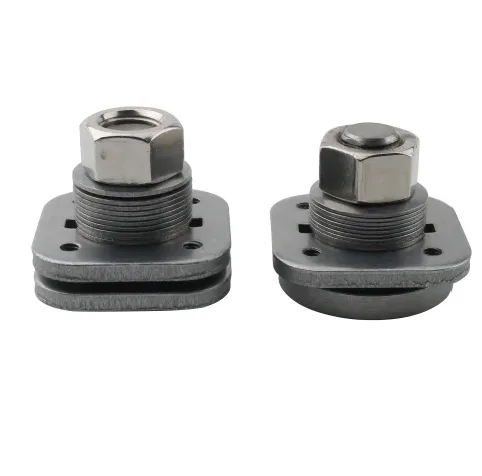

360° adjustable torque hinge is made of high-strength steel for durability and structural stability. It supports 360° rotation and features an articulated arm with free-stop positioning. The disc damping mechanism ensures smooth motion and precise control. With an adjustable torque range of 1–15 N·m, it is ideal for industrial equipment, display mounts, and applications requiring stable angle control.

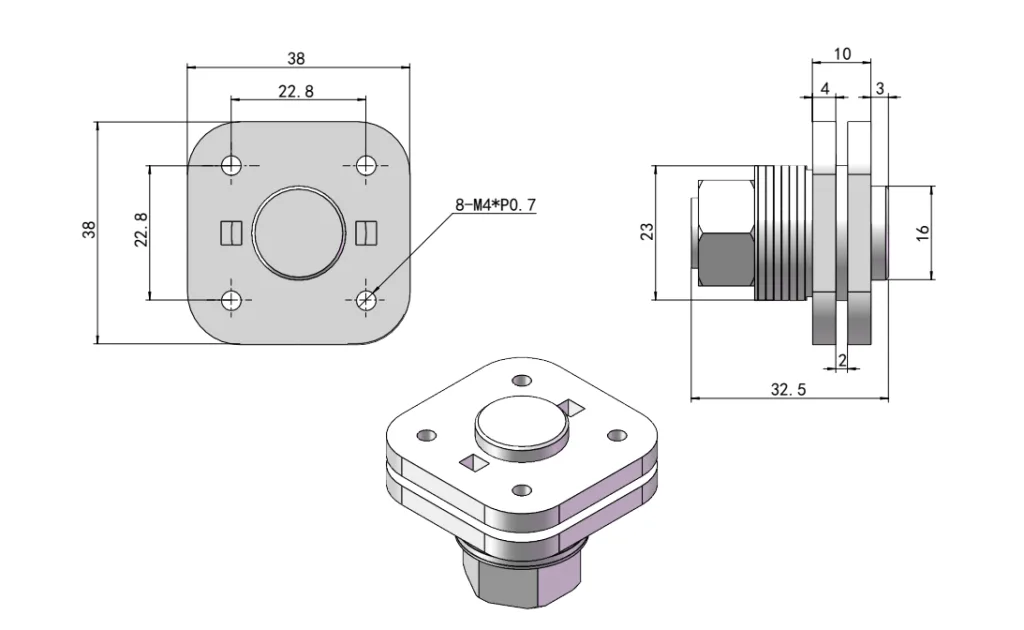

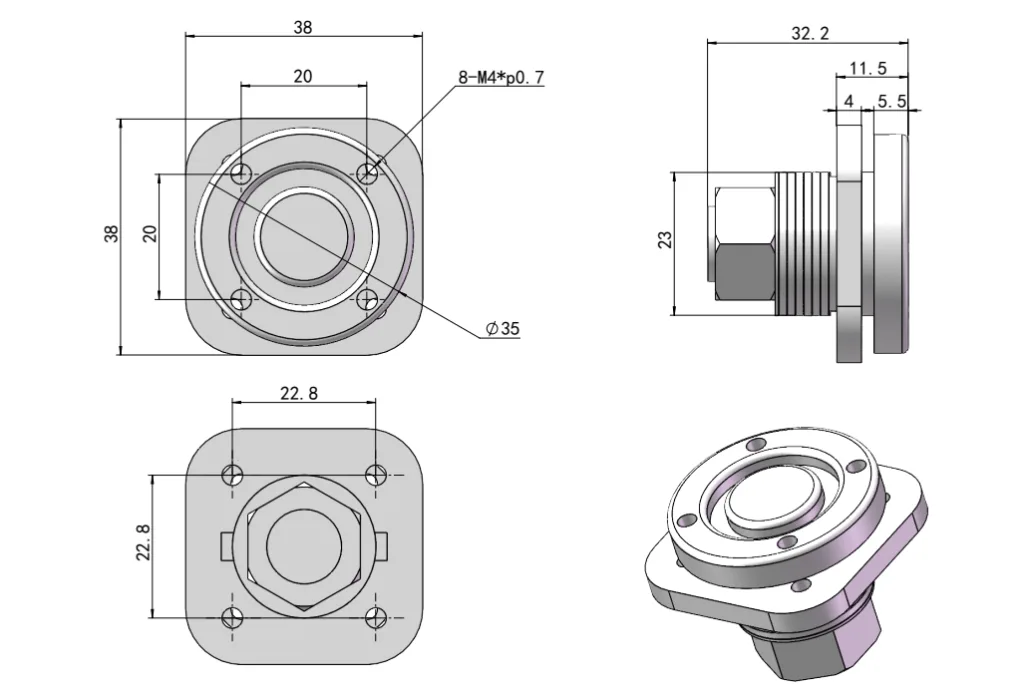

Dimension Drawing
| Part No. | Material | Surface Treatment | Torque (N·m) |
| HG11-111 | Steel | Nickel Plated | 0.1 – 15 |
| HG11-089 |
FAQ
What applications is this torque hinge best suited for?
Primarily, it supports precision equipment such as medical monitor arms, industrial display mounts, and cabinet doors. In addition, it works well in any system that requires stable and accurate positioning.
How does adjustable torque improve performance?
By allowing torque customization, the hinge achieves optimal balance for different loads. As a result, it delivers smooth adjustment while holding position securely at any angle.
Can this hinge prevent sagging over time?
Yes. It provides consistent holding force that supports weight effectively. Therefore, it reduces sagging in screens, doors, and panels, even with frequent use.
How does it enhance user experience and safety?
First, it ensures controlled movement without sudden drops. Meanwhile, it maintains stable positioning, which improves both operational safety and overall usability.
Do you offer OEM customization and bulk supply?
Yes. Manufacturers typically support torque tuning, structural design adjustments, and mounting options. In addition, they provide stable production capacity and quality control for large-scale B2B orders.
