Monitor Torque Hinge | 0.7–4.5 N·m | Display & Panel Mount
PRODUCT PARAMETERS
Description

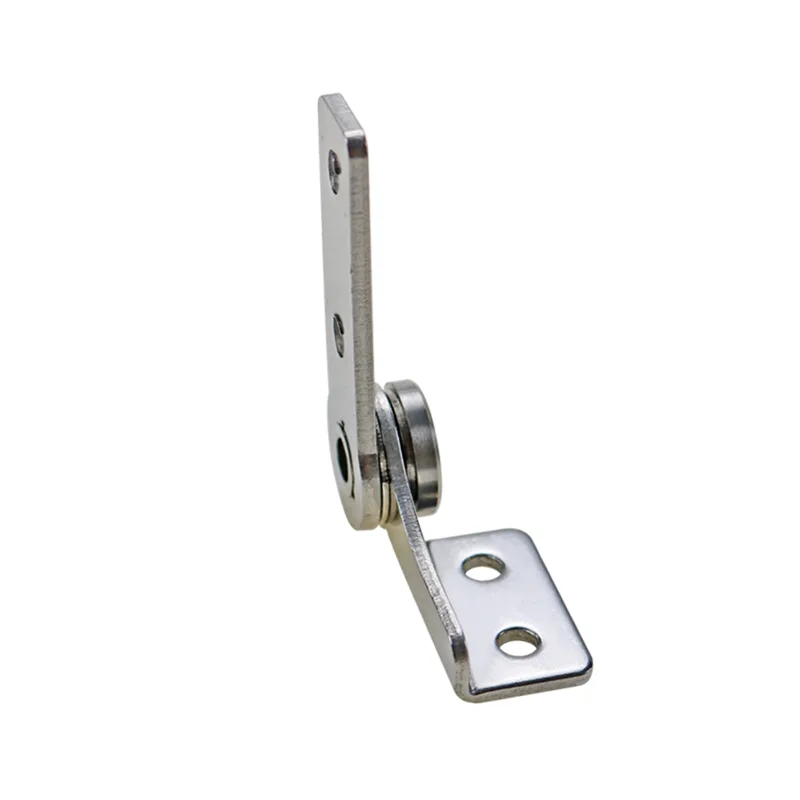

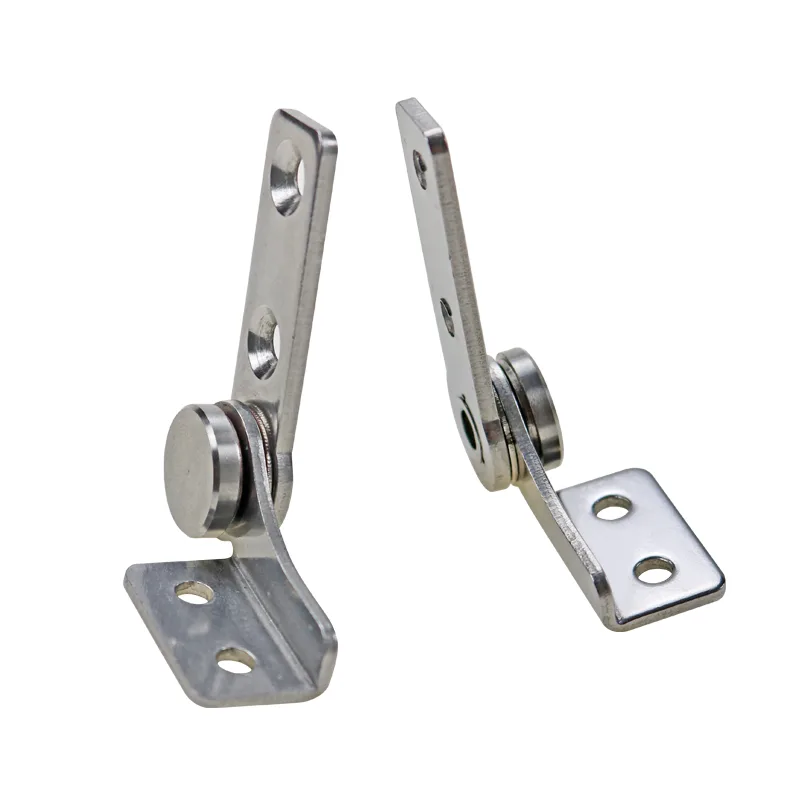

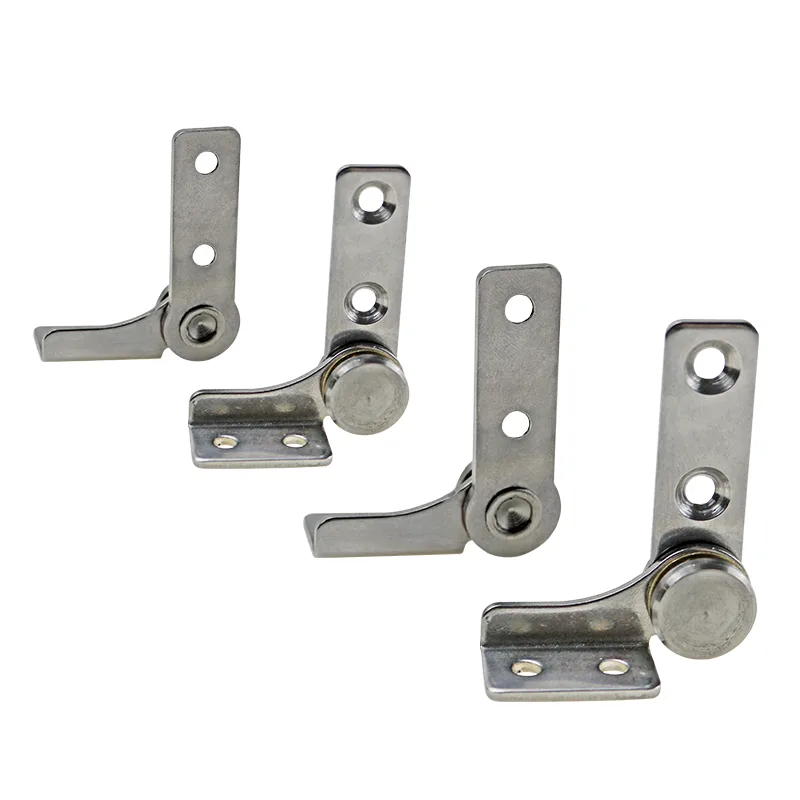

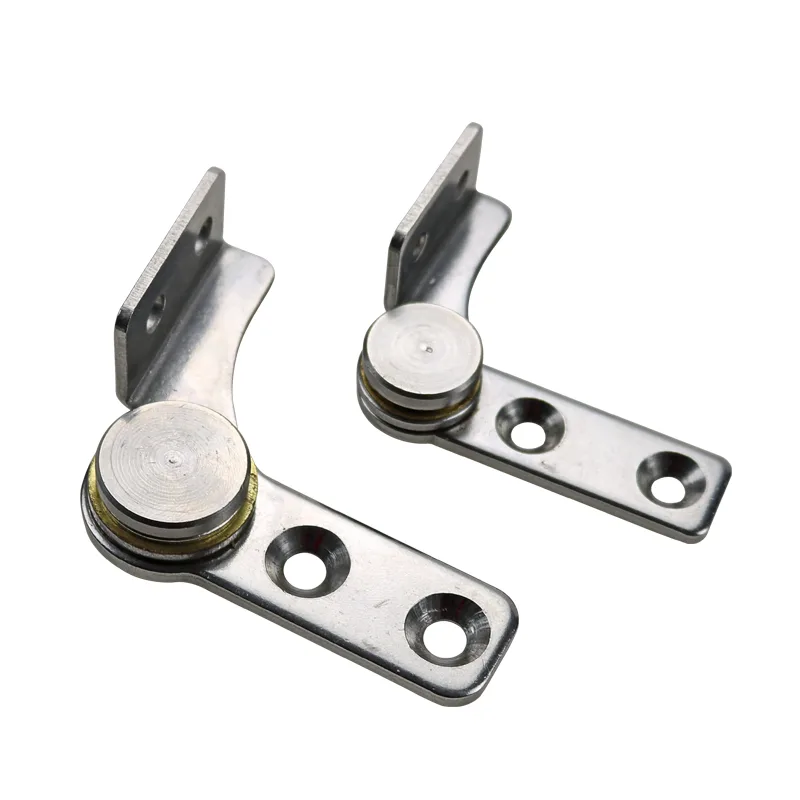

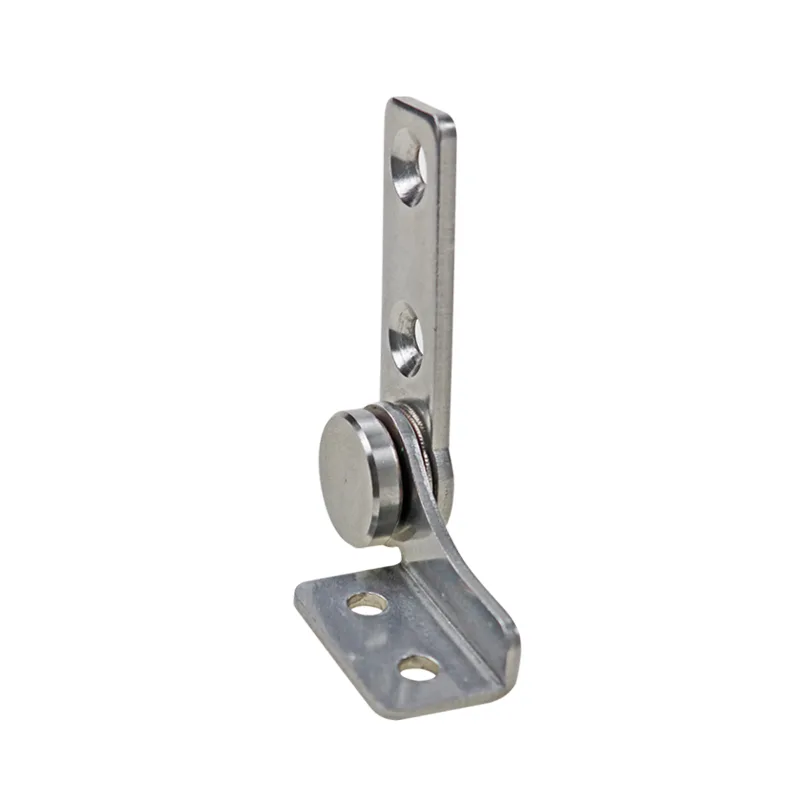

Stainless steel monitor torque hinge available in large and small sizes provides smooth, stable positioning and precise torque control. The large model offers 4.5 N·m torque, while small models range from 0.7/2.0/3.0/4.5 N·m. Durable and corrosion-resistant, it ensures reliable support for displays, control panels, and equipment requiring motion control.

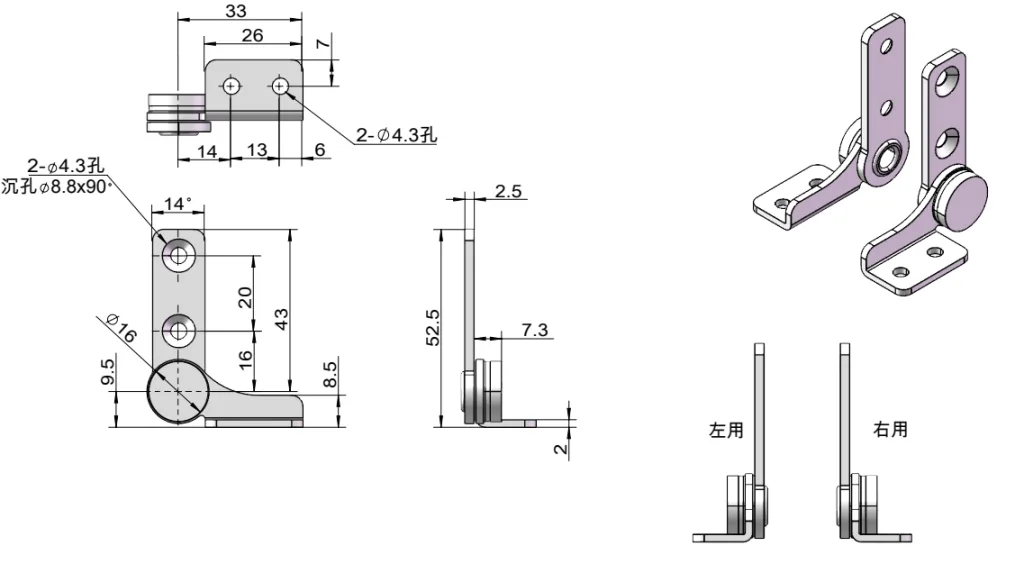

Dimension Drawing

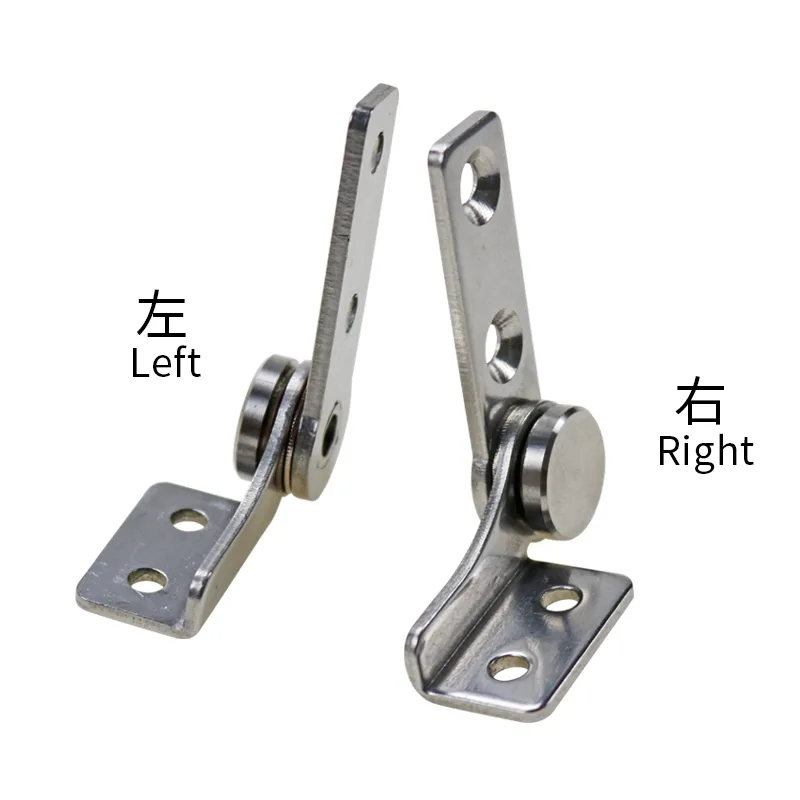

| Code | Item No. | Torque (N·m) | Torque (kgf·cm) | Material | Surface Treatment |
| HG11-009-1 | HG11-009-1-7L | 0.7 | 7 | SUS304 | Vibratory Finishing |
| HG11-009-1-7R | |||||
| HG11-009-1-20L | 2 | 20 | |||
| HG11-009-1-20R | |||||
| HG11-009-1-30L | 3 | 30 | |||
| HG11-009-1-30R | |||||
| HG11-009-1-45L | 4.5 | 45 | |||
| HG11-009-1-45R |

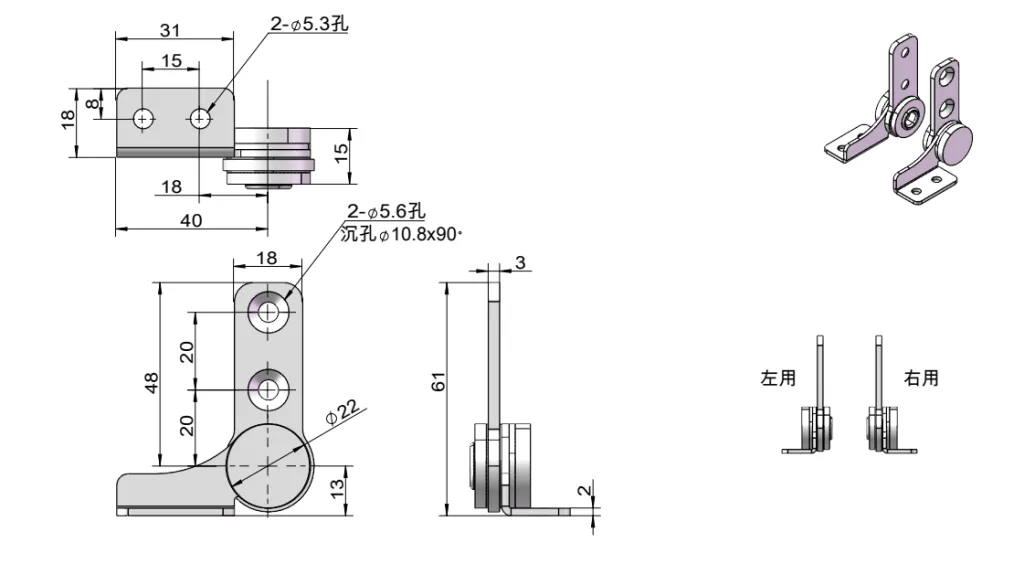

| Item No. | Code | Torque (N·m) | Torque (kgf·cm) | Material | Surface Treatment |
| HG11-009-2 | HG11-009-2-45L | 4.5 | 45 | SUS304 | Vibratory Finishing |
| HG11-009-2-45R |
FAQ
What applications are suitable for the Stainless Steel Monitor Torque Hinge?
The Stainless Steel Monitor Torque Hinge is ideal for displays, control panels, HMIs, medical equipment, and industrial automation systems. It ensures smooth motion and precise positioning for professional environments requiring reliable motion control.
What torque options are available?
The hinge is available in multiple configurations to meet diverse requirements. The large model provides 4.5 N·m, while smaller models offer 0.7, 2.0, 3.0, and 4.5 N·m, enabling accurate torque selection for various load conditions.
What are the advantages of stainless steel construction?
Manufactured from high-quality stainless steel, the hinge delivers excellent corrosion resistance, durability, and structural strength. It is well-suited for demanding environments such as medical, industrial, and outdoor applications.
How does this hinge ensure stable and precise positioning?
The precision-engineered torque mechanism provides smooth, controlled movement with free-stop functionality, allowing monitors and panels to remain securely positioned at any desired angle without additional support.
Do you offer OEM customization and global supply?
Yes. We provide OEM and ODM services, including customized torque values, sizes, mounting configurations, and surface finishes. Supported by strict quality control and efficient international logistics, we ensure reliable and streamlined B2B procurement.
