Round Adjustable Damping Shaft | 90° Stop & 360° Rotation
PRODUCT PARAMETERS
Description

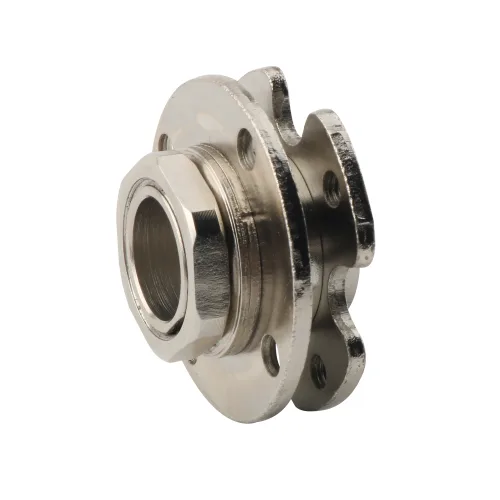

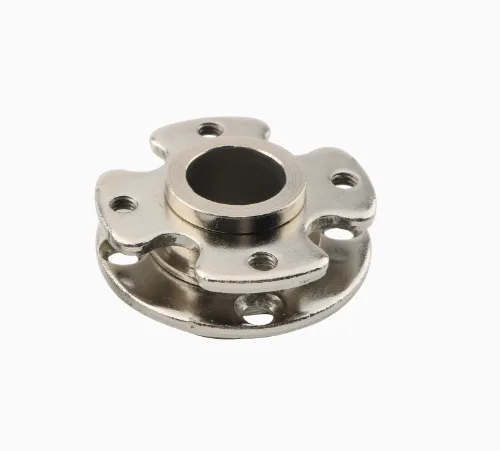

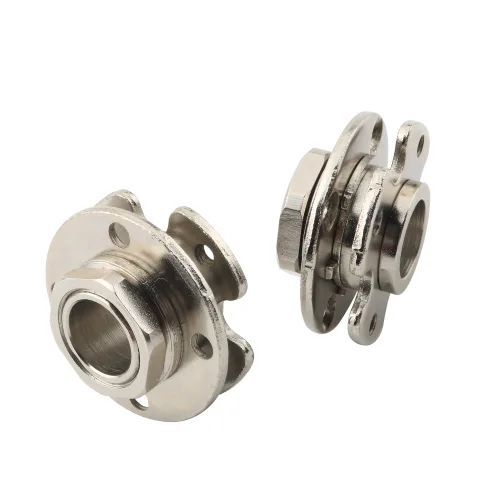

Round Adjustable Damping Shaft: Perfect for smooth, controlled rotation and clean cable management. Choose your model: 90° stops (HG11-120-1) for secure access panels, or 360° free rotation (HG11-120-2) for displays and sensors. Easily adjust the torque (0–12 N·m) to match your load. The rugged design includes a 14 mm center hole for wires or tubing. Ideal for industrial automation, medical equipment, and enclosures needing precise positioning and hassle-free routing. A true workhorse hinge.

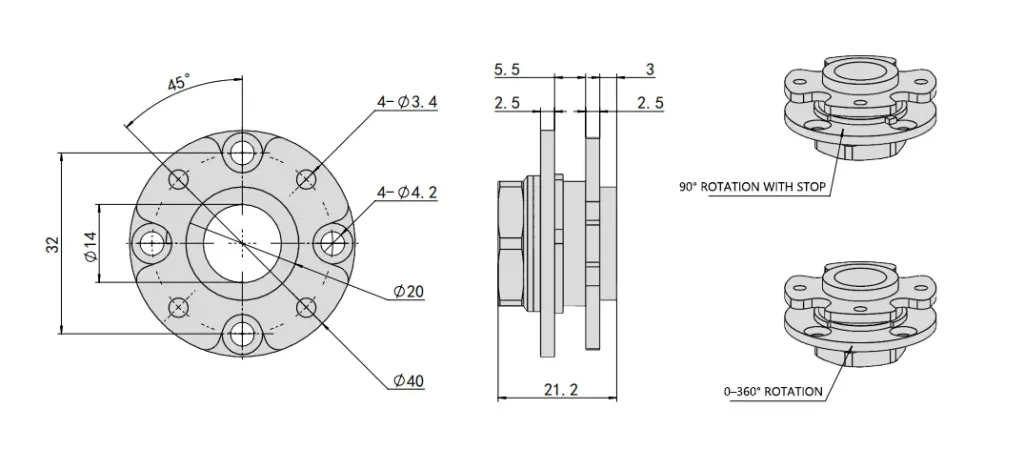

Dimension Drawing
| Code | Part Number | Material | Surface Finish | Torque (N·m) | Rotation Angle |
| HG11-120 | HG11-120-1 | 1215 | Nickel Plated | 0 – 12 | 90° rotation with stop |
| HG11-120-2 | 0°–360° rotation |
FAQ
What applications is this torque hinge best suited for?
Primarily, it supports industrial automation systems, medical equipment, and equipment enclosures. In addition, it works well for displays, sensors, and access panels that require precise positioning and clean cable routing.
How do I choose between the 90° stop and 360° rotation models?
Choose the 90° stop (HG11-120-1) for access panels that need controlled opening limits. Alternatively, select the 360° version (HG11-120-2) for displays or sensors requiring full rotation and flexible positioning.
How does the adjustable torque improve usability?
You can set torque from 0 to 12 N·m based on load requirements. As a result, the hinge ensures smooth motion and stable holding at any angle without additional support.
What is the benefit of the 14 mm center hole design?
The integrated hole enables clean cable or tubing routing. Therefore, it reduces clutter, protects internal wiring, and simplifies system integration in compact equipment.
How do I select the correct torque setting for my application?
First, assess panel weight, size, and movement frequency. Then, increase torque for heavier loads or vibration-prone environments to ensure stable positioning and long-term reliability.
