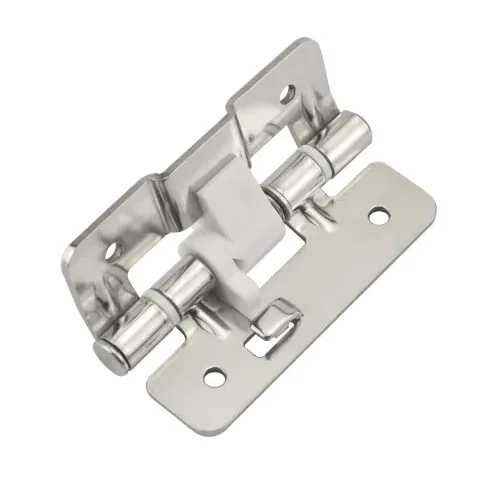

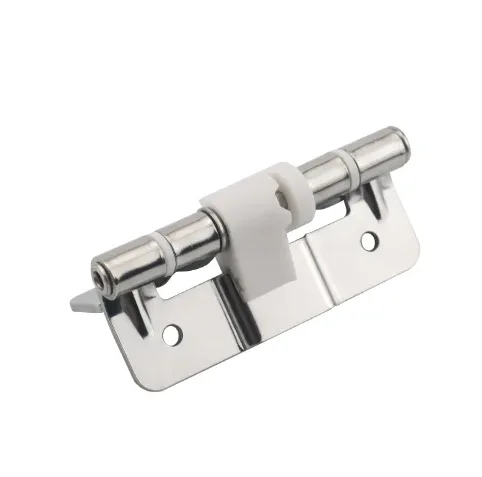

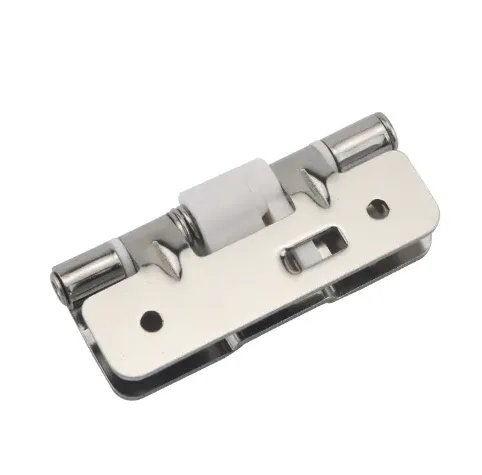

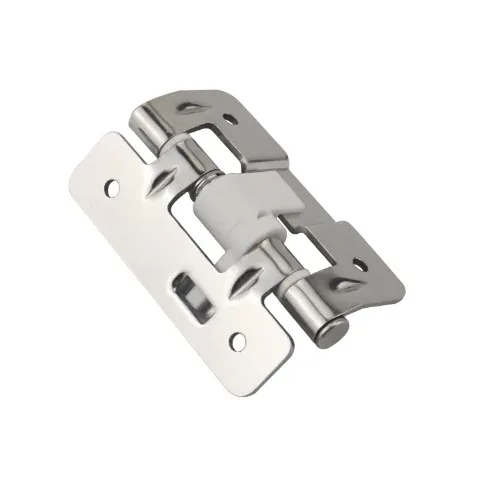

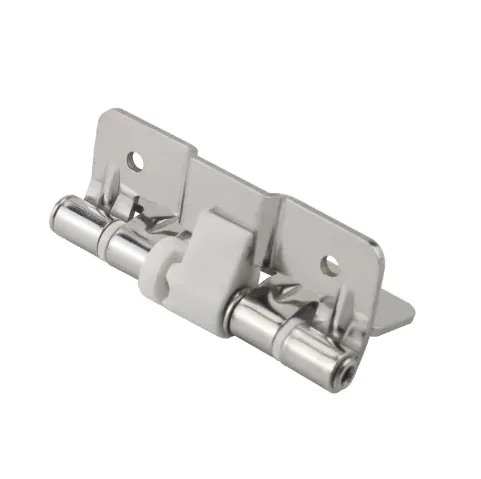

Positioning Hinge 0.5 N·m | 304 Stainless, 3-Angle Stop
PRODUCT PARAMETERS
Description
Positioning Hinge, made of 304 stainless steel with a vibrated finish, provides a torque of 0.5 N·m and three positioning angles: 0°, 75°, and 180°. Clean and corrosion-resistant, it is suitable for medical, industrial, and outdoor communication and power equipment door covers that require multi-angle opening.

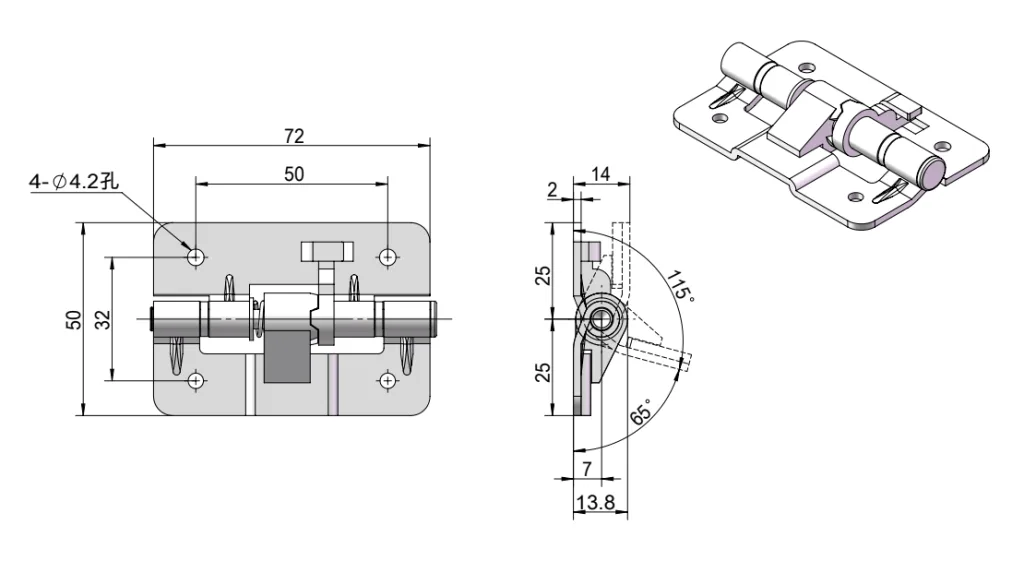

Dimension Drawing
| Code | Model No. | Torque (N·m) | Torque (kgf·cm) | Material | Surface Finish |
| HG11-078 | HG11-078 | 0.5 | 5 | SUS304 | Vibrated Finish |
FAQ
What applications is this positioning hinge best suited for?
Primarily, it supports medical devices, industrial enclosures, and telecom or power equipment. In addition, it fits door covers that require fixed multi-angle opening.
How do the three positioning angles improve usability?
The hinge locks at 0°, 75°, and 180°. As a result, users gain clear, repeatable positions for access, inspection, or operation without continuous adjustment.
Does the hinge provide stable holding at each angle?
Yes. It delivers consistent 0.5 N·m torque at each stop. Therefore, panels remain securely positioned during normal use.
Why choose 304 stainless steel for this hinge?
First, it offers strong corrosion resistance. Moreover, it ensures durability and meets hygiene requirements, making it suitable for medical and outdoor environments.
How do I select this hinge for my application?
Start by confirming that fixed angles (0°, 75°, 180°) meet your use case. Then, match the 0.5 N·m torque to panel size and weight to ensure stable, reliable operation.
