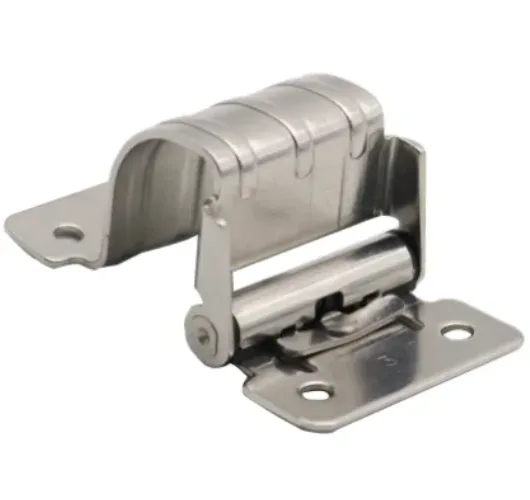

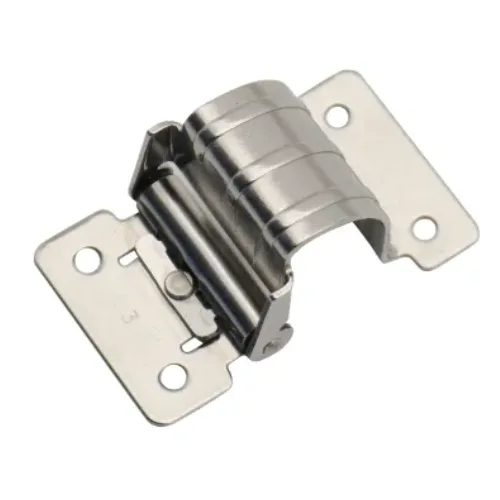

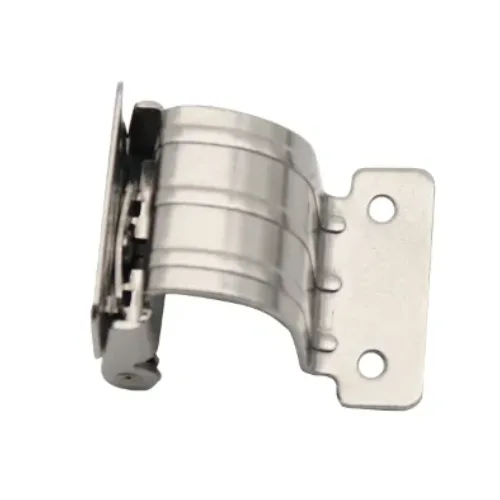

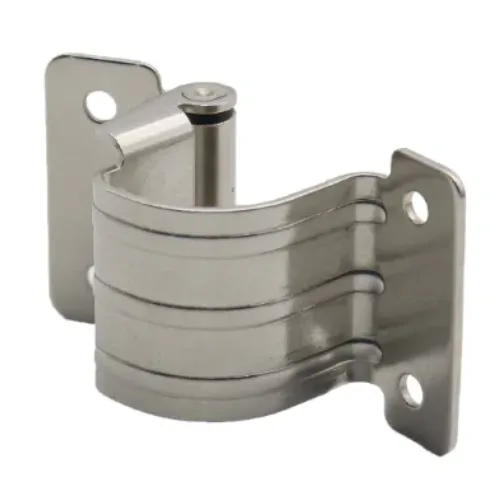

Hidden Stainless Steel Torque Hinge – 90° Free-Stop, 0.35/0.7 N·m
PRODUCT PARAMETERS
Description
Hidden stainless steel torque hinge offers smooth 90° opening and free-stop at any angle. Available in 0.35 N·m and 0.7 N·m torque options, it supports up to 7 kg load capacity. Ideal for cabinet doors, enclosures, and furniture applications, it ensures stable positioning, sleek design, and long-lasting durability.

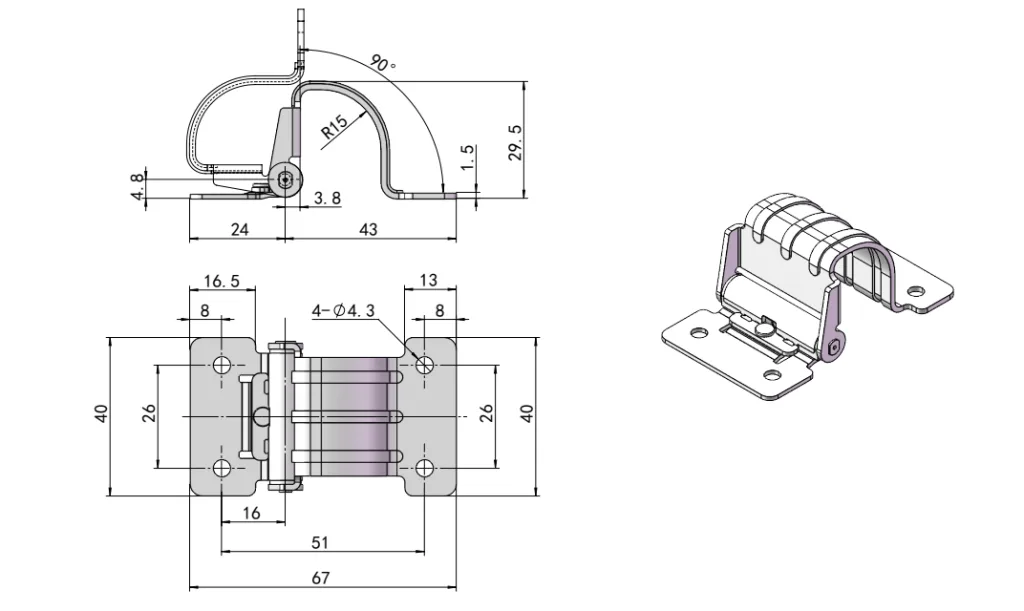

Description
| Code | Item No. | Torque N·m | Torque kgf·cm | Material | Surface Treatment |
| HG11-017 | HG11-017-3.5 | 0.35 | 3.5 | SUS304 | Vibratory Finishing |
| HG11-017-7.0 | 0.7 | 7 |
FAQ
Do you support OEM or custom specifications?
Yes. We customize torque values, dimensions, mounting structures, and finishes based on your drawings or project requirements.
What applications is this concealed hinge suitable for?
Primarily for cabinet doors, enclosures, and furniture panels where a clean appearance and controlled motion are required.
How does the free-stop function improve performance?
It holds the door at any angle within 90°. As a result, it prevents sudden closing and ensures stable, user-safe positioning.
Is the 7 kg load capacity sufficient for industrial use?
Yes. It is suitable for light to medium-duty panels. For higher loads, we recommend torque matching or multi-hinge configurations.
What quality control and delivery support do you provide?
Each hinge is tested for torque consistency and durability. Standard models ship quickly, with responsive technical and after-sales support.
