ADC Adjustable Torque Hinge ≤2.0 N·m
PRODUCT PARAMETERS
Description

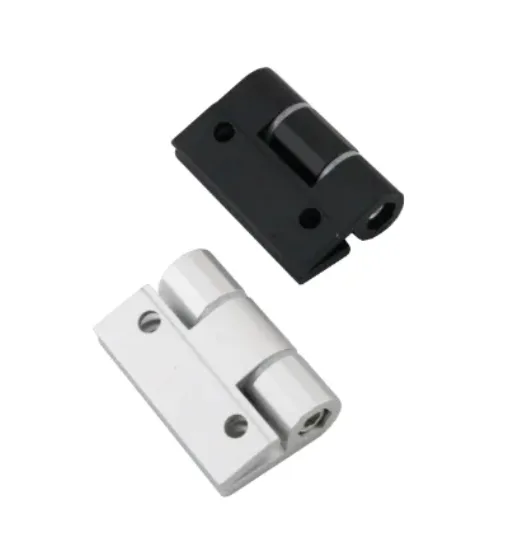

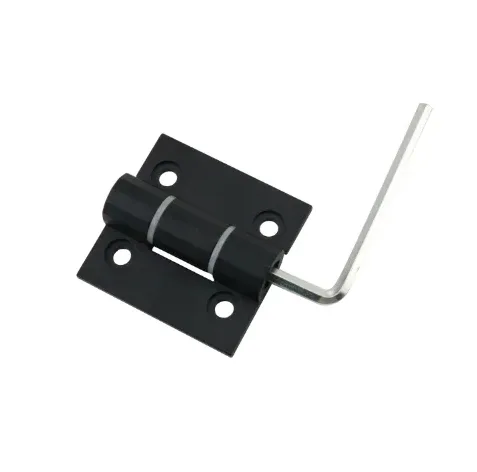

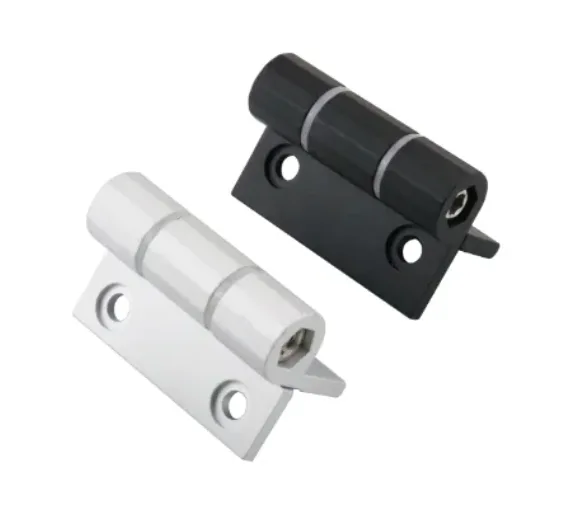

ADC adjustable torque hinge (≤2.0 N·m, 60×59 mm) made of lightweight aluminum alloy delivers smooth, stable motion and precise positioning. Ideal for server cabinets, medical devices, control panels, and display systems—durable, corrosion-resistant, and stylish in matte or black finishes.

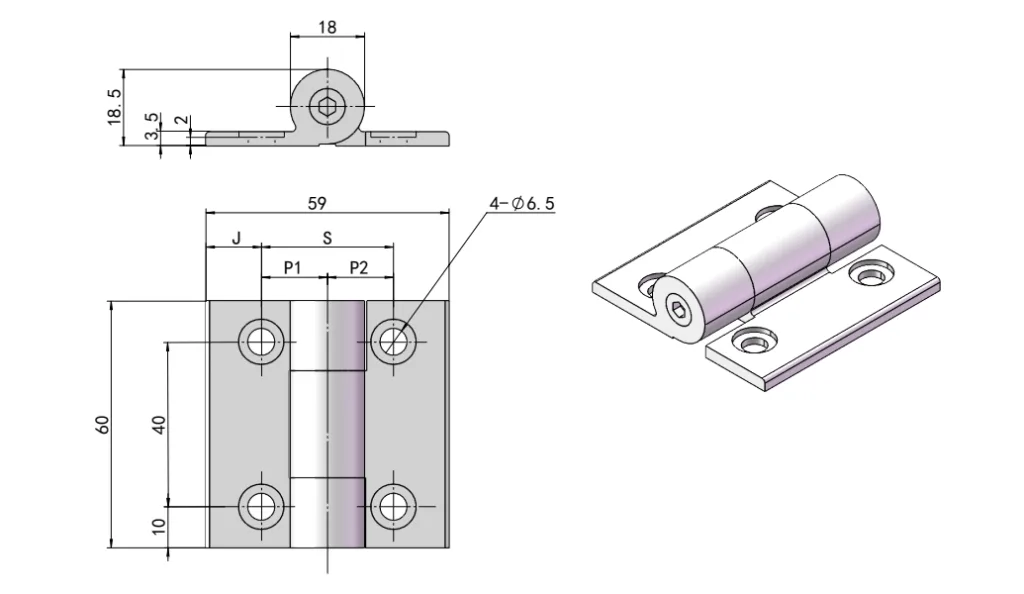

Dimension Drawing
| Code | Item No. | Torque (N·M) | Torque (kgf·cm) | S | P1 | P2 | J | Material | Surface Treatment |
| HG11-083 | HG11-083-32-1 | 0-2 | 0-20 | 32 | 16 | 16 | 13.5 | ADC | Black |
| HG11-083-32-2 | 32 | 16 | 16 | 13.5 | Matte | ||||
| HG11-083-37-1 | 37 | 16 | 21 | 13.5 | Black | ||||
| HG11-083-37-2 | 37 | 16 | 21 | 13.5 | Matte | ||||
| HG11-083-42-1 | 42 | 21 | 21 | 8.5 | Black | ||||
| HG11-083-42-2 | 42 | 21 | 21 | 8.5 | Matte |
FAQ
What applications is this ADC torque hinge designed for?
First, it targets mid-load applications such as server cabinets, control panels, medical devices, and display systems. In addition, it suits equipment that requires precise positioning and smooth, repeatable motion.
How does the adjustable torque improve usability?
In practice, you can fine-tune the torque up to 2.0 N·m to match load and panel size. As a result, the hinge delivers controlled movement and stable holding at any angle.
Why choose aluminum alloy (ADC) for this hinge?
ADC aluminum alloy reduces weight while maintaining structural strength. Moreover, it offers strong corrosion resistance and supports high-quality matte or black finishes for visible installations.
Can the hinge maintain performance under frequent use?
Yes. We design it for consistent torque output and long service life. Consequently, it maintains smooth motion and reliable positioning across repeated operating cycles.
Do you support OEM/ODM customization and volume supply?
Certainly. We provide OEM/ODM services, including torque calibration, dimensional adjustments, and surface treatment options. Meanwhile, we ensure stable production capacity, strict quality control, and on-time delivery for bulk orders.
