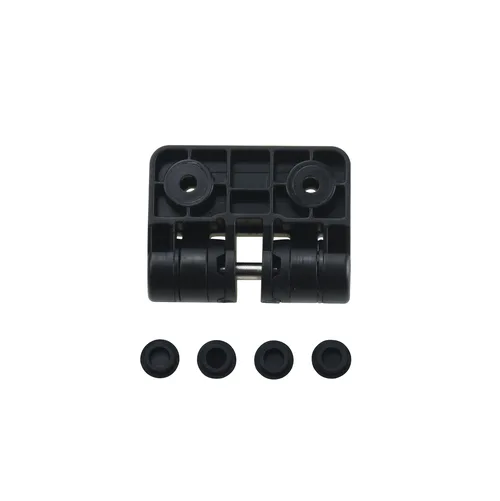

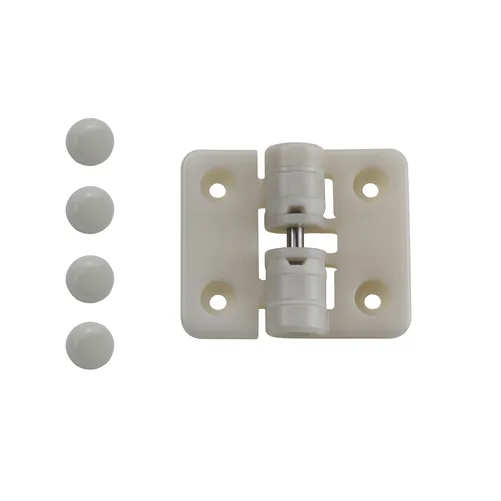

Resin Torque Hinge 90° Positioning | 60×50×8mm | 1.2kg Load

Resin position control torque hinge with 90° incremental positioning for smooth, stable movement. Available in black or white, measuring 60×50×8 mm. Supports loads up to 1.2 kg—ideal for lightweight panels, covers, and small electronic enclosures.

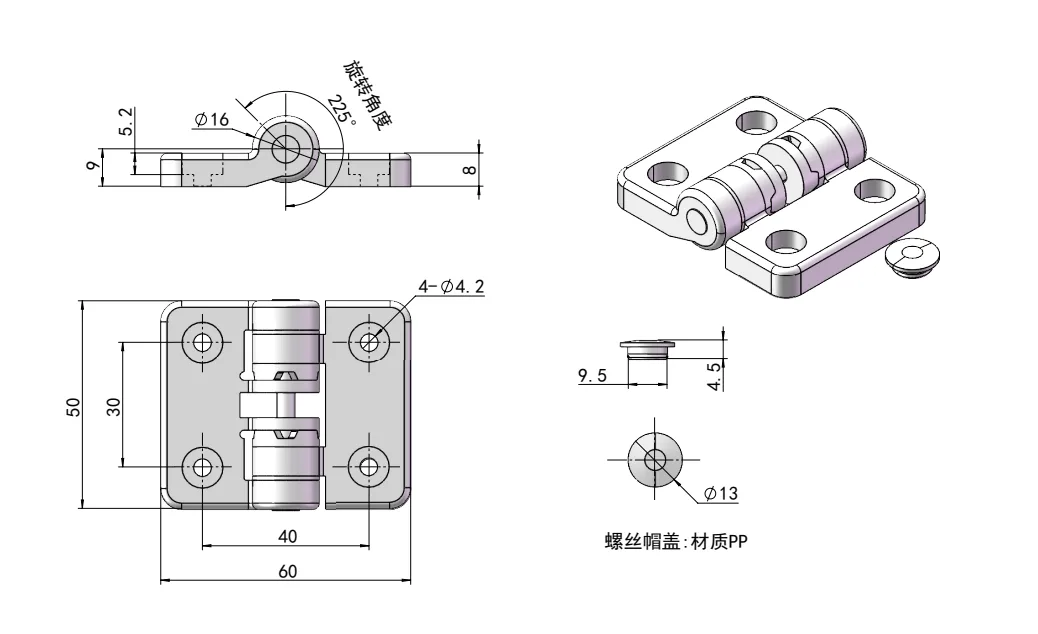

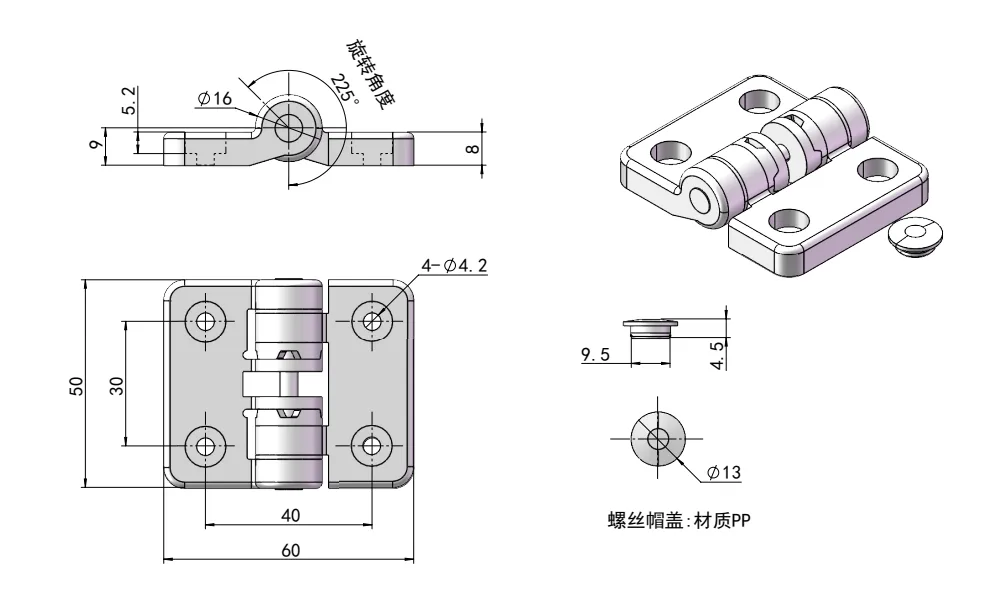

Dimension Drawing

FAQ

1. What is a resin position control torque hinge and how does it work?

This resin position control torque hinge combines constant friction resistance with 90° incremental positioning to deliver smooth, stable movement. It locks firmly at every 90-degree angle (0°, 90°, 180°) while still allowing free-stop positioning in between. You do not need external locking mechanisms—the hinge holds lids, panels, or displays securely in place. You get precise, effortless control for lightweight panels and electronic enclosures.

2. What are the dimensions and load capacity of this torque hinge?

This hinge measures just 60×50×8 mm, so it fits discreetly into compact designs. It supports loads up to 1.2 kg, making it ideal for lightweight panels, access covers, and small electronic enclosures. You can rely on consistent torque and stable positioning without adding bulky hardware, keeping your product’s design clean and professional.

3. How do you install the incremental positioning hinge on a small enclosure?

You install this hinge in minutes. First, mount the 60×50 mm base plate onto the stationary surface—such as the back of an enclosure—using standard screws. Then, attach the moving arm to the lid or panel. Its 8 mm low-profile design lets you fit it into tight spaces without interfering with internal components. We recommend pre-drilling pilot holes to align the hinge precisely before securing it.

4. What colors are available and what materials does this hinge use?

This hinge comes in two versatile color options: black or white. It uses high-strength resin, which delivers excellent durability, corrosion resistance, and lightweight performance. You can choose the color that best matches your product’s aesthetic—whether you design consumer electronics, medical devices, or industrial access panels—while enjoying smooth, maintenance-free operation.

5. What is the best application for a 1.2 kg position control hinge?

This hinge works best for lightweight panels, flip-up covers, and small electronic enclosures where controlled movement matters. Use it for LCD monitor screens, portable instrument cases, kitchen appliance doors, or network equipment access panels. It provides reliable 90° incremental locking for service access and infinite friction adjustment for ergonomic viewing angles—all within a compact footprint that gives you maximum design flexibility.
