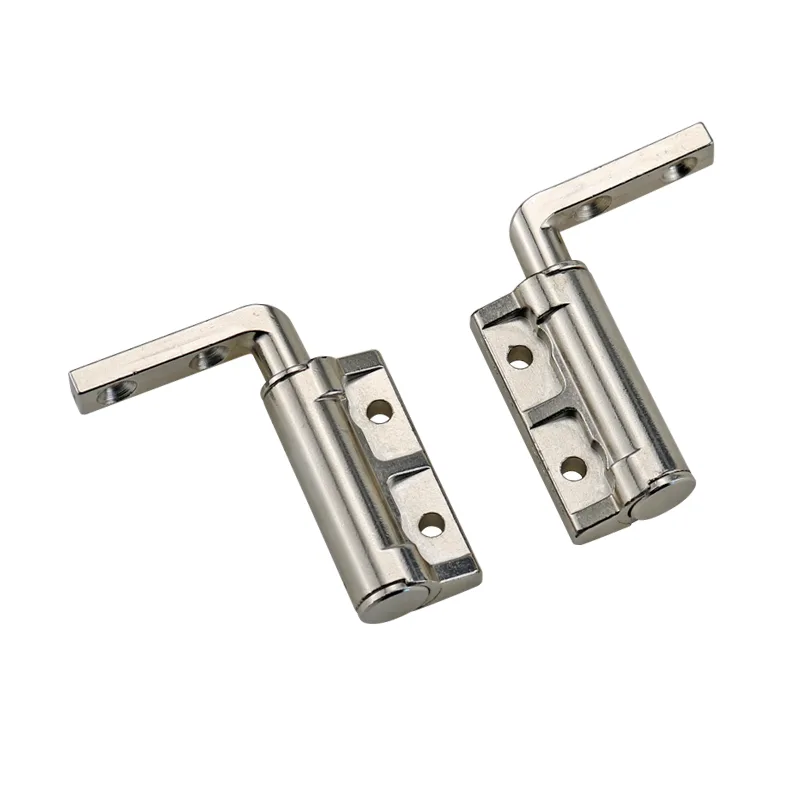

Zinc Alloy L-Shape Torque Hinge 1.5 & 2.3 N·m | Left & Right

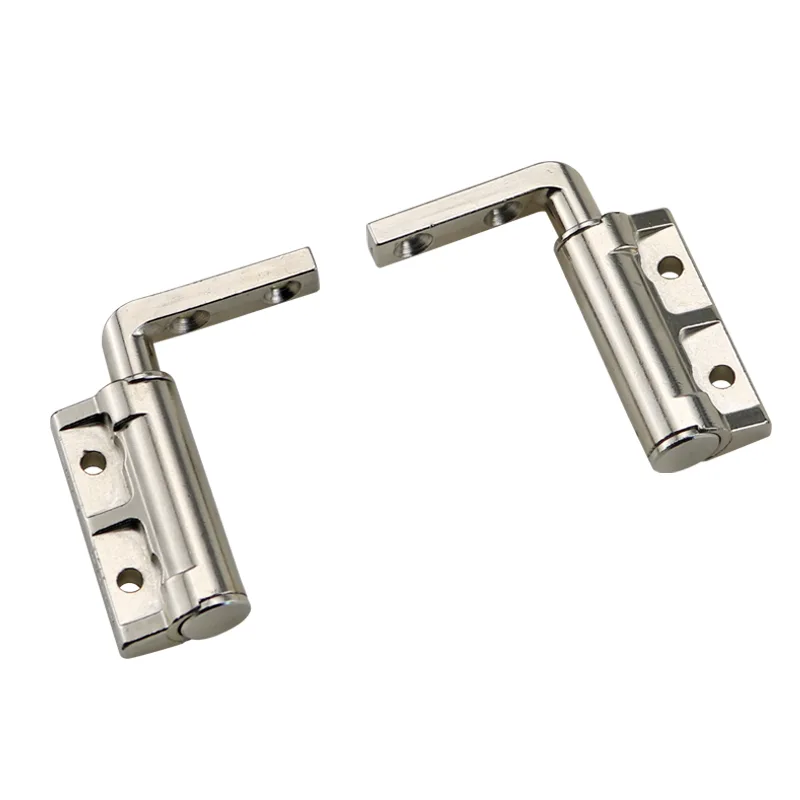

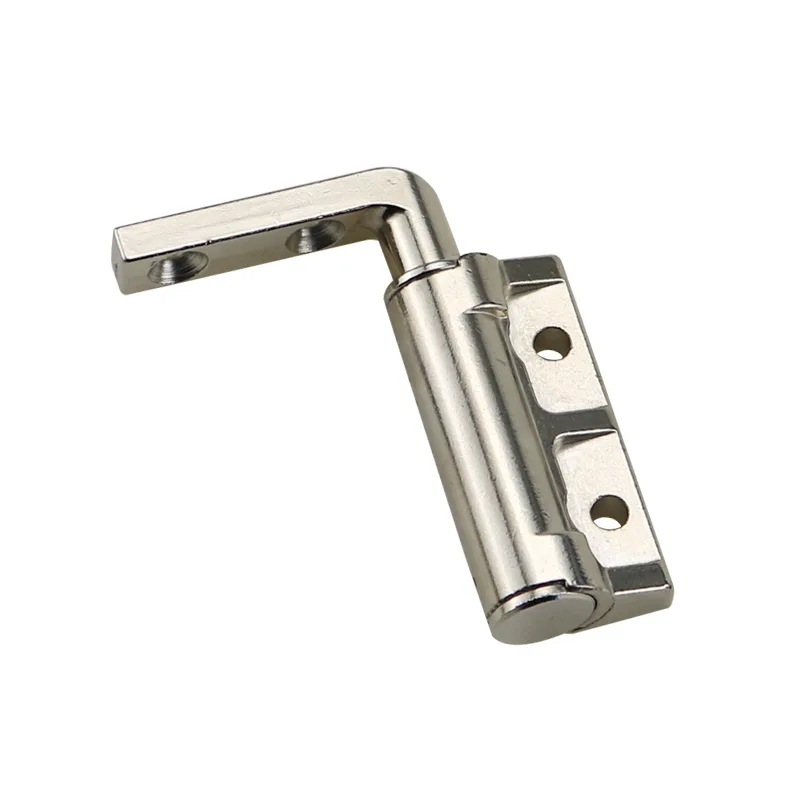

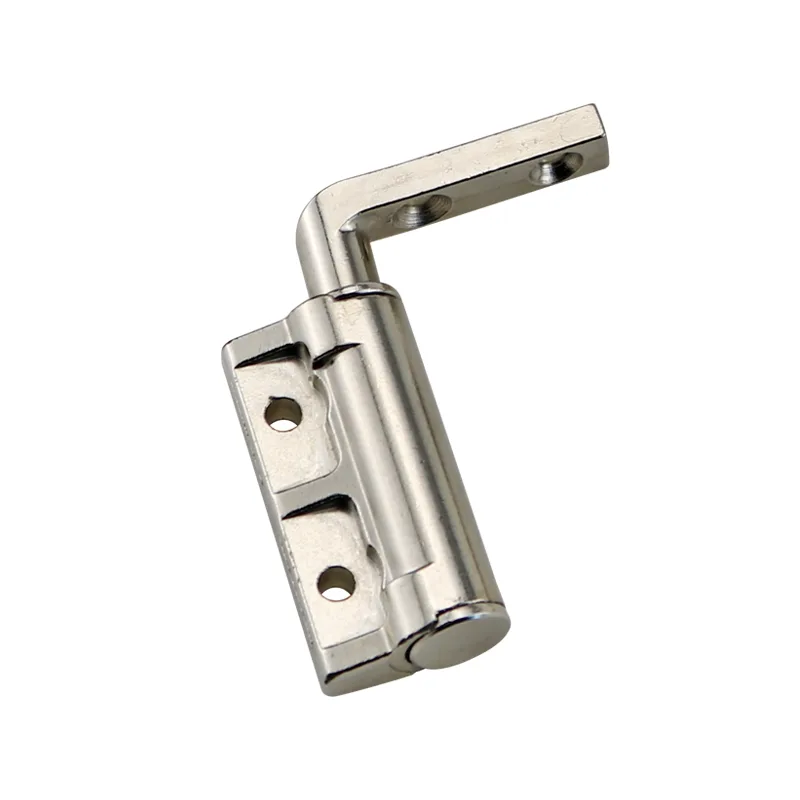

L-Shape Torque Hinge, made of durable zinc alloy, offers free-stop motion at any angle with 1.5 N·m and 2.3 N·m torque options. Available in black and nickel-plated finishes, left and right versions, it ensures strong support and precise positioning—ideal for heavy-duty equipment, machinery doors, and industrial enclosures.

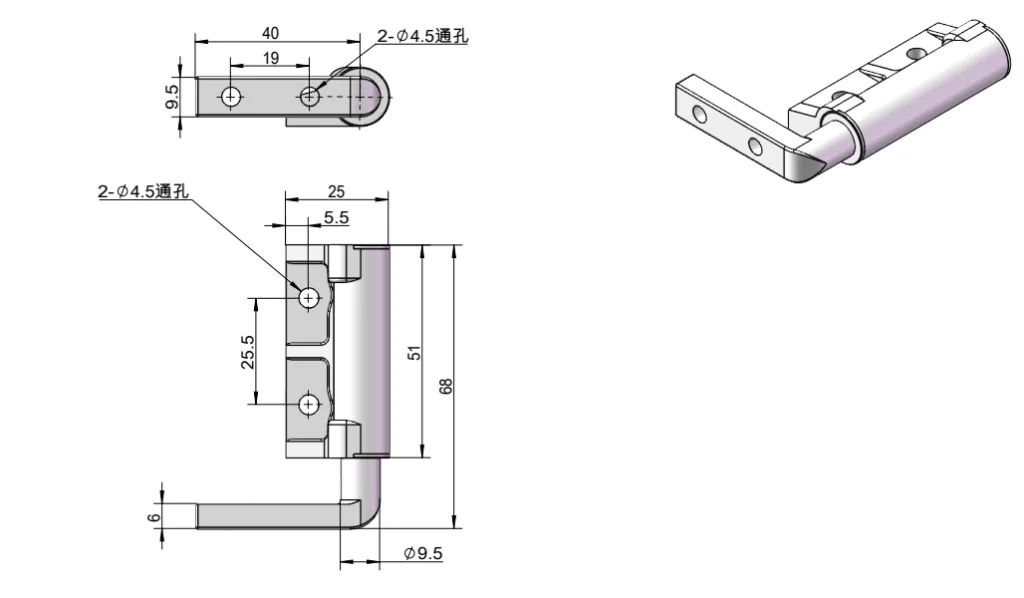

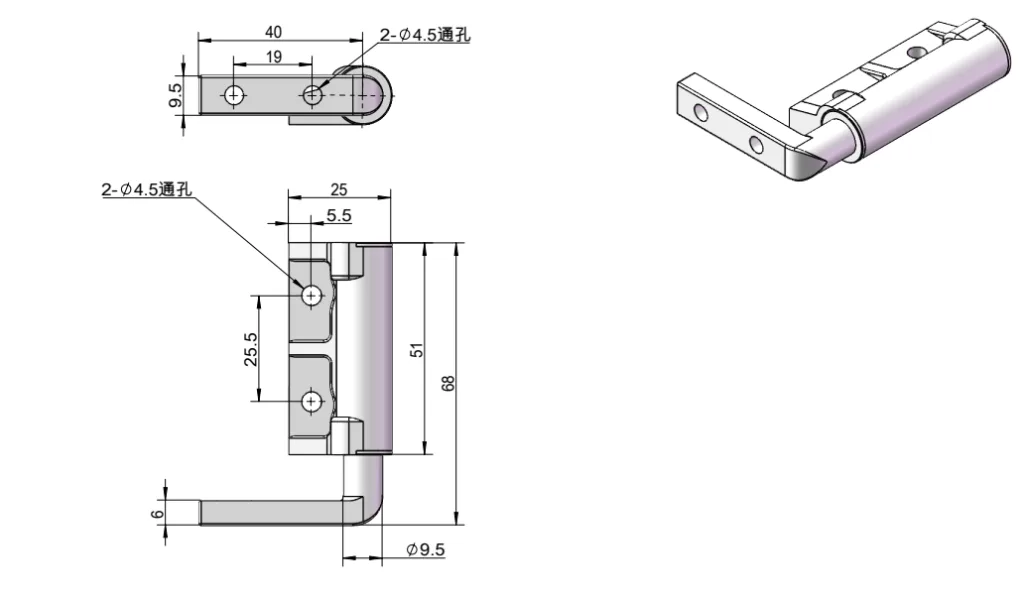

Dimension Drawing

FAQ

1. What makes the L-shaped screw-type torque hinge ideal for heavy-duty equipment and machinery doors?

We engineered this hinge to deliver exceptional strength and precise control for demanding applications. To begin with, the durable zinc alloy construction provides superior corrosion resistance and long-lasting structural integrity—essential for heavy-duty equipment and industrial enclosures. Additionally, the L-shaped design offers enhanced leverage and support, while the screw-type mounting ensures a secure, vibration-resistant installation. Whether you are equipping machinery doors or industrial enclosures, we designed this hinge to withstand rigorous use while maintaining smooth, free-stop motion at any angle.

2. What torque options are available, and how do I choose the right one for my application?

We offer two distinct torque ratings so you can match performance to your specific load requirements. Specifically, we provide 1.5 N·m and 2.3 N·m torque options, allowing you to select the precise level of resistance needed for your equipment doors or industrial enclosures. Furthermore, we proactively support your selection process—our technical team can help you evaluate door weight, size, and operating frequency to recommend the optimal torque. In short, we give you the flexibility to choose, and the expertise to choose correctly.

3. What finish and orientation options are available to fit my design requirements?

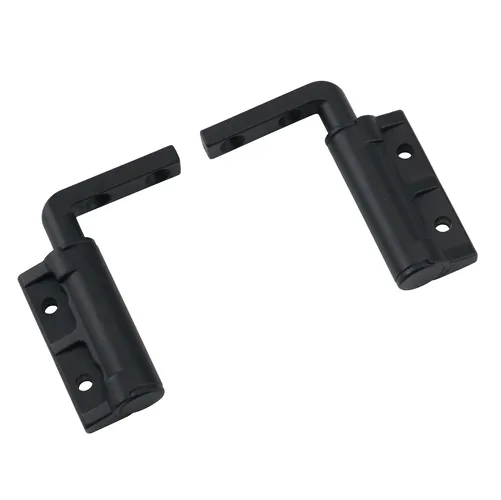

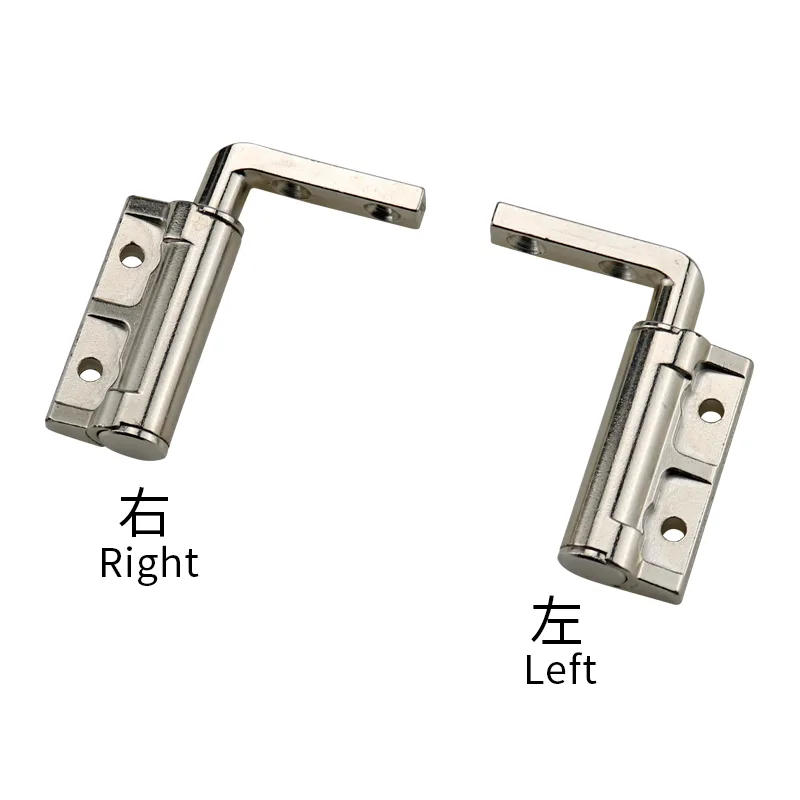

We designed this hinge family with versatility in mind to accommodate diverse installation scenarios. To elaborate, we offer both black and nickel-plated finishes, enabling you to match the aesthetic of your equipment while benefiting from enhanced surface protection. Additionally, we provide left and right versions, ensuring proper orientation for your machinery doors and industrial enclosures regardless of mounting configuration. Consequently, you can achieve a clean, professional installation without compromising on the smooth, free-stop motion and precise positioning our hinges are known for.

4. How does the free-stop feature enhance usability compared to traditional hinges?

We incorporated free-stop technology to give you effortless control and hands-free operation. Unlike traditional hinges that require external latches or constant manual support, our L-shaped screw-type torque hinge maintains steady resistance throughout the entire range of motion. As a result, you can position heavy-duty equipment doors or industrial enclosures exactly where you need them—and they will stay firmly in place without drifting. Therefore, we eliminate the need for secondary locking mechanisms, streamlining your design and improving operator convenience.

5. How does the screw-type mounting design improve installation reliability?

We prioritized secure, long-term mounting to ensure consistent performance in demanding environments. Specifically, the screw-type mounting mechanism provides a robust, vibration-resistant attachment that maintains alignment even under repeated use. Moreover, this design simplifies installation and allows for easy adjustments during assembly, reducing setup time and minimizing the risk of misalignment. Ultimately, we engineered this mounting solution to deliver the strong support and precise positioning that heavy-duty equipment and industrial enclosures demand—day after day.
