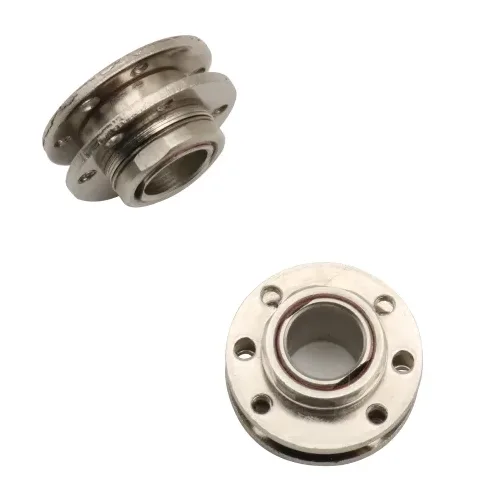

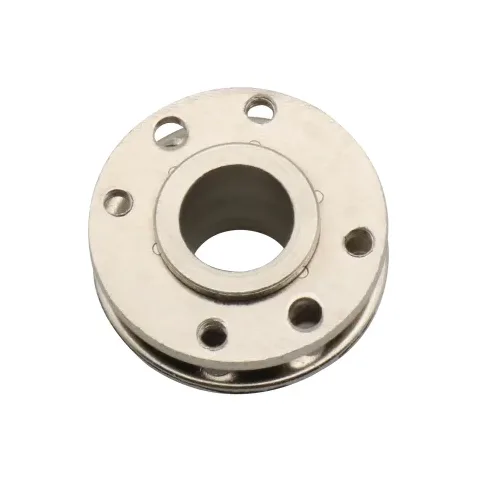

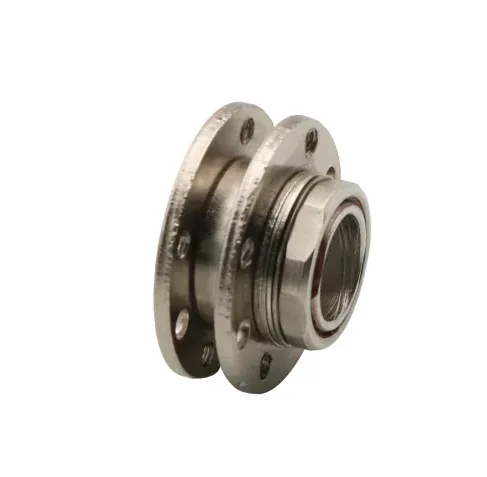

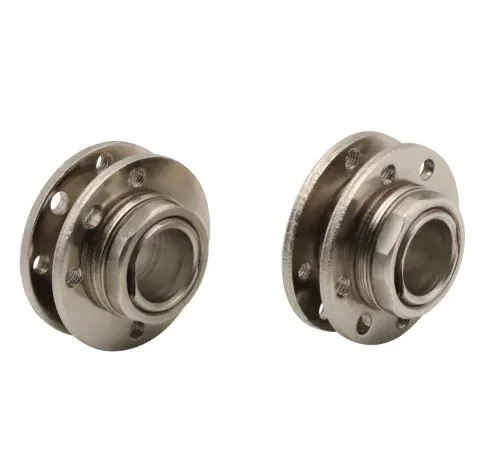

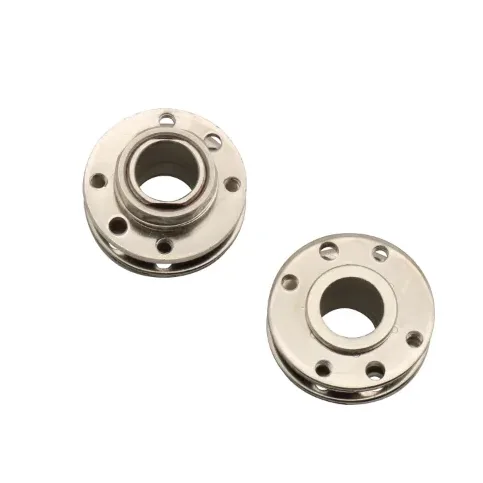

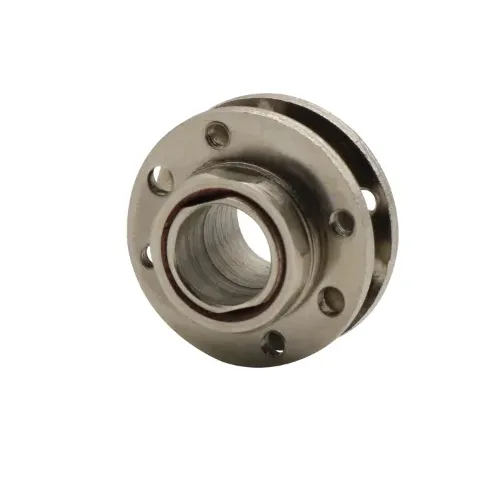

Torque Hinge with Cable Hole 1–6 N·m | Clean Wiring & 360° Rotation
PRODUCT PARAMETERS
Description
Adjustable torque hinge (1–6.0 N·m) with built-in cable hole (11 mm) for clean wire routing. Made of nickel-plated iron for strength and cost efficiency, offering 360° dual rotation and stable positioning—ideal for robots, automation, lighting, and medical equipment.

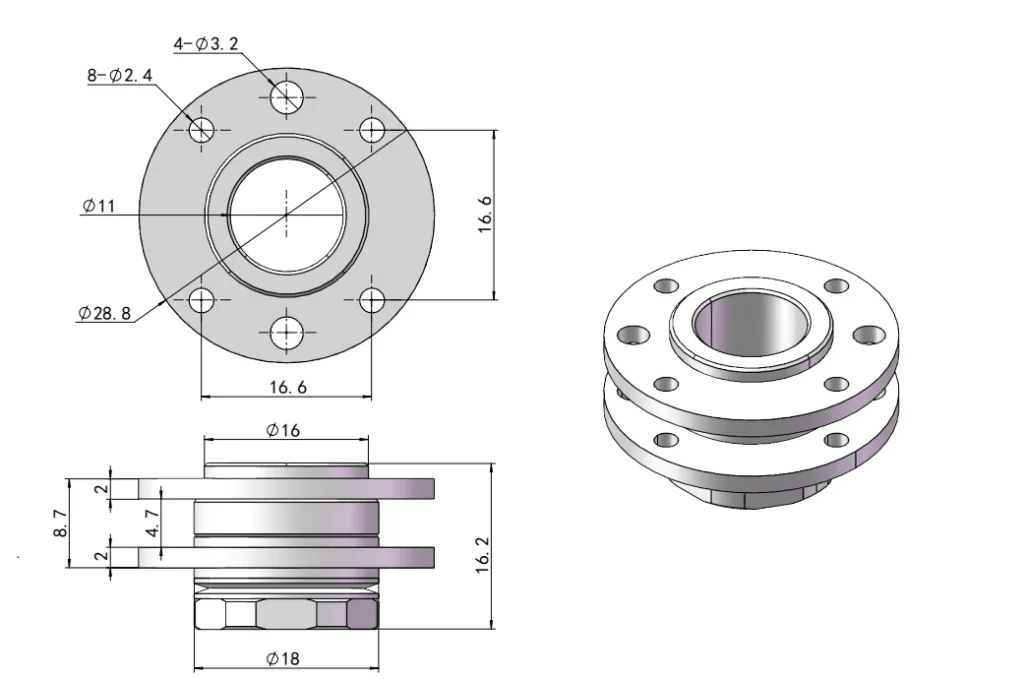

Dimension Drawing
| Code | Item Number | Torque (N·m) | Torque (kgf·cm) | Material | Surface Treatment |
|---|---|---|---|---|---|
| HG11-098 | HG11-098 | 1–6 | 10–60 | Iron | Nickel Plated |
FAQ
What advantages does the built-in cable hole provide?
First, the 11 mm cable hole enables clean internal wire routing. As a result, you reduce cable clutter, avoid external damage, and improve overall product aesthetics. Therefore, it works especially well in robotics, lighting systems, and automated equipment.
What applications is this torque hinge best suited for?
Typically, engineers select this hinge for devices that require both motion control and cable management. For example, it fits robots, automation systems, medical equipment, and adjustable lighting. In these cases, the 1–6 N·m torque ensures smooth rotation with stable positioning.
How do I choose the right torque within the 1–6 N·m range?
To start, evaluate the load weight, mounting position, and required holding force. Then, we help you fine-tune the torque to balance smooth movement and secure positioning. This way, you avoid drift while maintaining easy adjustability.
Why use nickel-plated iron for this hinge?
On one hand, the iron structure provides strong mechanical support. On the other hand, nickel plating enhances corrosion resistance and surface durability. Consequently, you achieve both cost efficiency and long-term reliability in industrial environments.
Do you support OEM customization and quality assurance?
Yes. We offer customization for torque levels, hole size, dimensions, and mounting structures. Meanwhile, we perform torque calibration and lifecycle testing to ensure consistent performance. After delivery, we also provide technical support and responsive after-sales service when needed.
