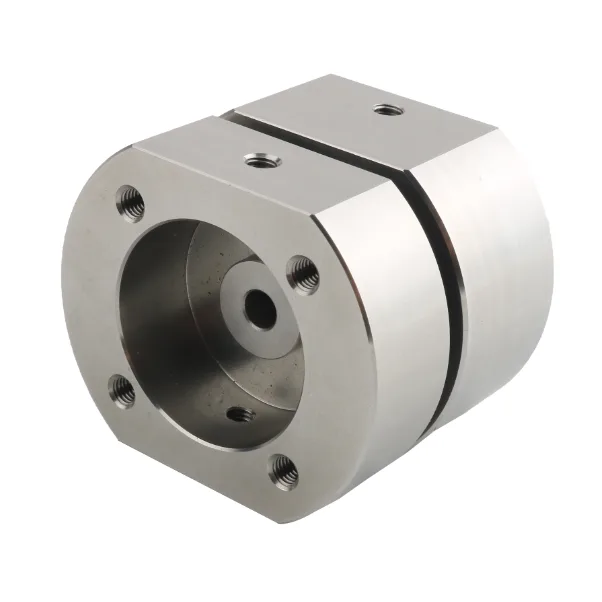

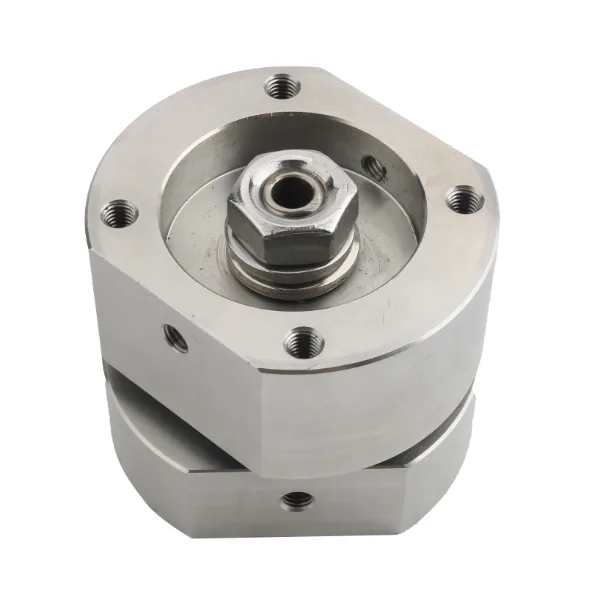

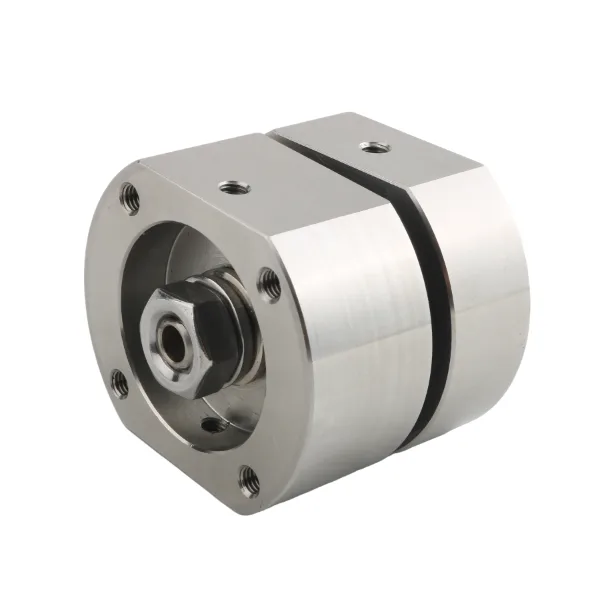

One-Way Torque Disc Hinge 0.1–10 N·m | 360° Control
PRODUCT PARAMETERS
Description
One-Way Adjustable Torque Disc Hinge made of 304 stainless steel, designed for smooth 360° rotation in a single direction with controlled damping. Torque is adjustable from 0.1 to 10 N·m, enabling precise positioning and stable hold. Its compact round design suits industrial panels, equipment covers, and enclosures requiring directional control, corrosion resistance, and long-term reliability in demanding environments.

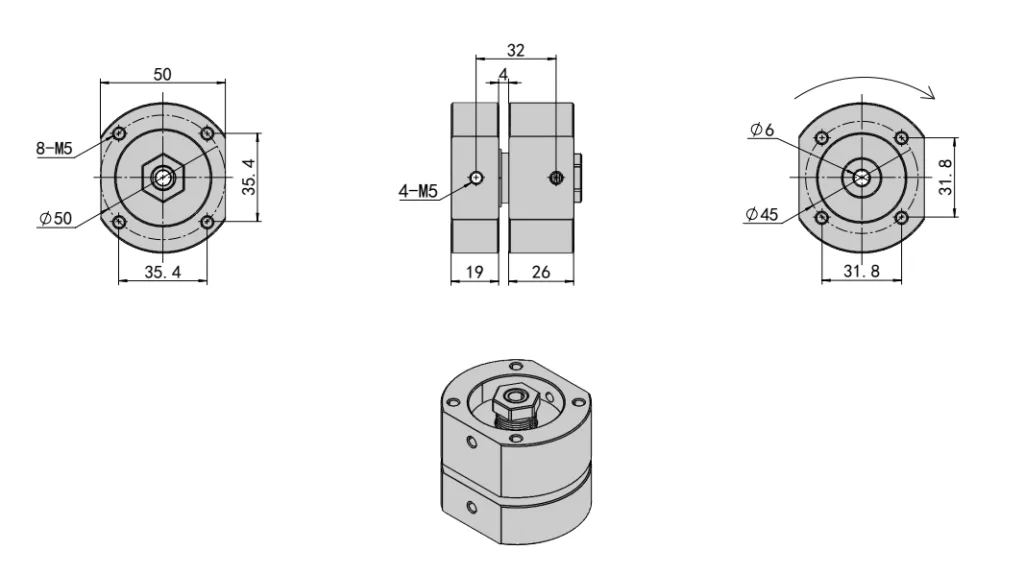

Dimension Drawing
| Code | Part Number | Material | Surface Finish | Torque (N·m) |
| HG11-138 | HG11-138 | SUS304 | Vibration Polished | 0.1 – 10 |
FAQ
What does “one-way rotation” mean in this hinge?
It allows smooth rotation in one direction while providing resistance in the opposite direction. As a result, it enables controlled movement and prevents unintended back rotation.
What torque range does this hinge support?
It offers an adjustable torque range from 0.1 to 10 N·m. Therefore, it fits both light and medium-duty applications requiring precise positioning.
How do I set the correct torque for my application?
First, evaluate the panel weight, size, and mounting orientation. Then, adjust the torque to achieve stable movement and reliable hold during operation.
Why choose 304 stainless steel for this hinge?
304 stainless steel provides excellent corrosion resistance and durability. As a result, it performs reliably in humid, outdoor, or demanding industrial environments.
What applications is this hinge best suited for?
It is ideal for industrial panels, equipment covers, and enclosures. In addition, it works well in systems requiring directional control, stable positioning, and long service life.
