Industrial Torque Hinges for Panels, Doors & Machinery
PRODUCT PARAMETERS
Description
Torque Hinges deliver smooth free‑stop positioning at any angle with adjustable torque from 0.294 to 5.39 N·m. 304 stainless steel, they offer strong support, corrosion resistance, and stable motion. Ideal for industrial panels, machinery doors, enclosures, control cabinets, and precision equipment requiring durable, reliable positioning.

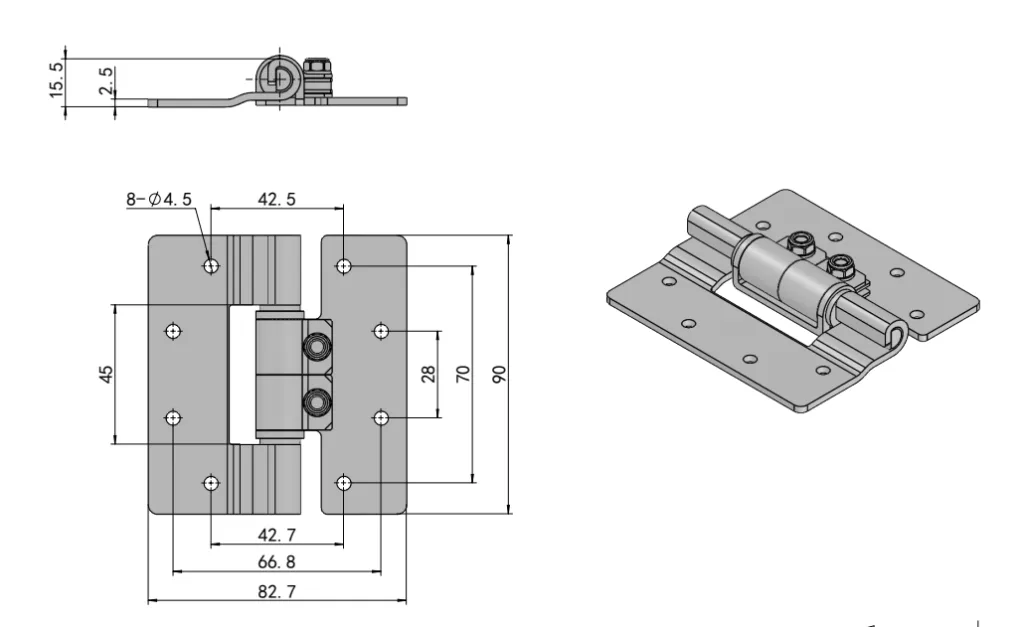

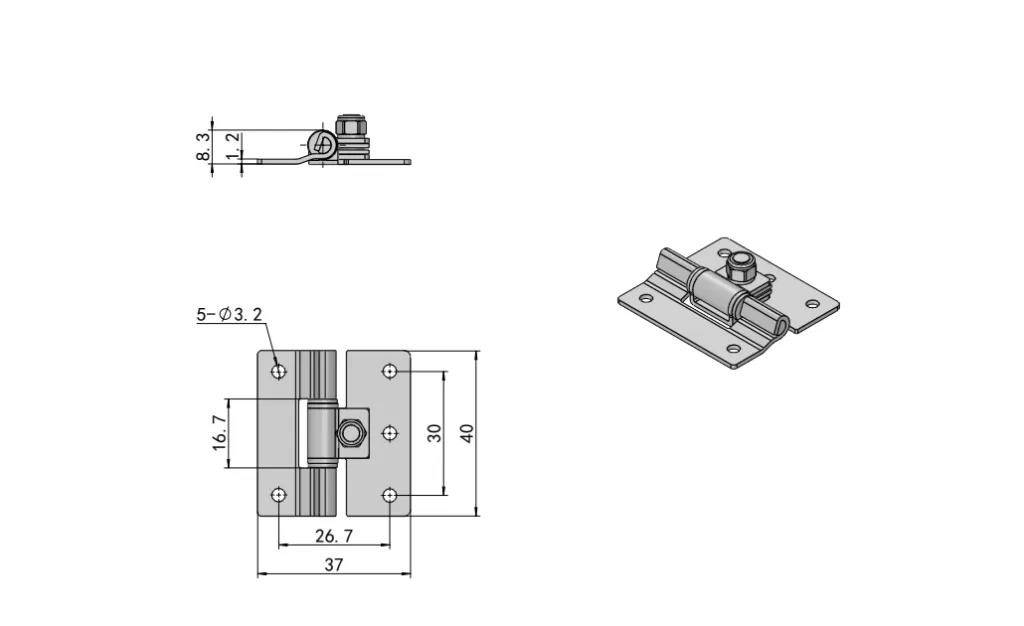

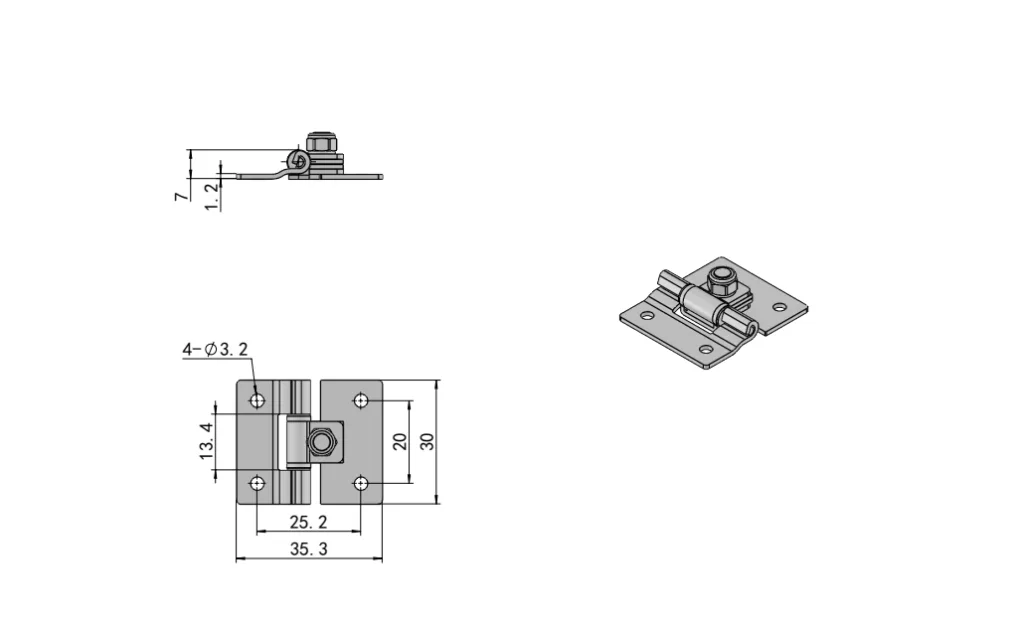

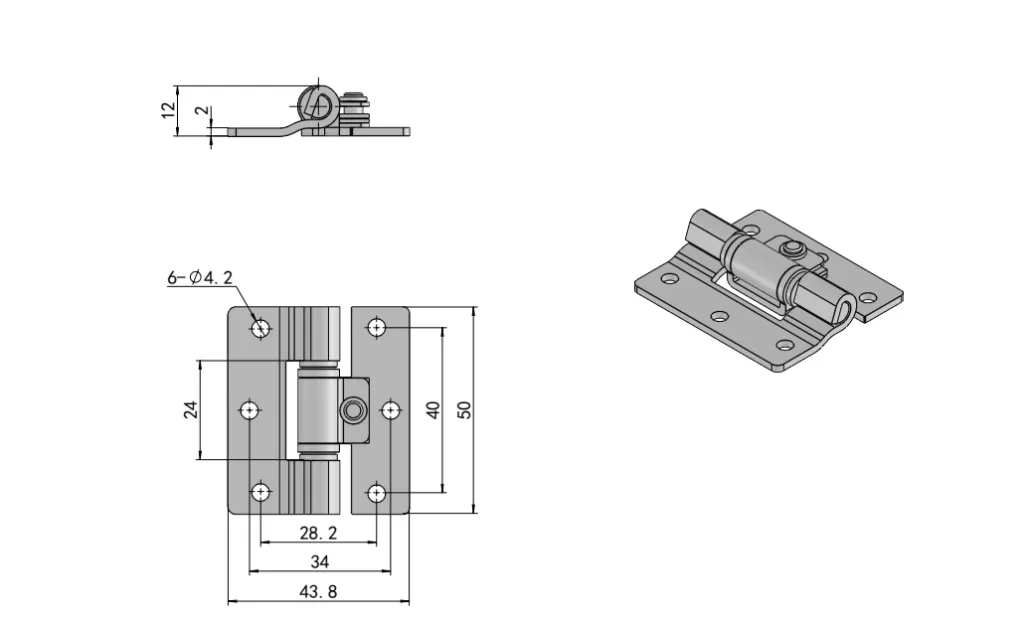

Dimension Drawing （HG11-151-1/2/3/4）
| Code | Item No. | Torque (N·m) | Material | Surface Treatment |
| HG11-151 | HG11-151-1 | 0.294 | SUS304 | Vibratory Finishing |
| HG11-151-2 | 0.784 | |||
| HG11-151-3 | 1.47 | |||
| HG11-151-4 | 5.39 |

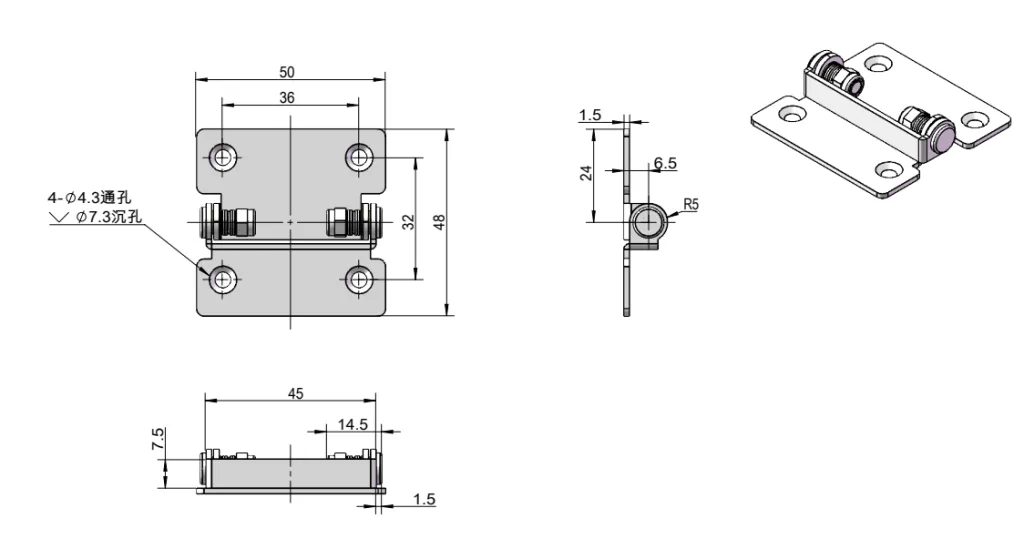

Dimension Drawing （HG11-024）
| Code | Item No. | Torque (N·m) | Torque (kgf·cm) | Material | Surface Treatment |
| HG11-024 | HG11-024 | 0–2 | 0–20 | SUS304 | Vibratory Finishing |
FAQ
Do you offer customization for different equipment requirements?
Yes. We support torque adjustment, size modification, mounting options, and surface treatments based on your technical specifications or CAD drawings.
What applications are these torque hinges best suited for?
Primarily for industrial panels, machinery doors, enclosures, and control cabinets. They are also suitable for precision equipment requiring stable positioning.
How does the free-stop function improve usability?
The hinge holds at any angle within its range. As a result, it prevents sudden movement and ensures controlled, stable operation.
Why choose 304 stainless steel for this hinge?
304 stainless steel provides strong corrosion resistance and structural durability, making it suitable for harsh or high-humidity industrial environments.
What quality assurance and delivery support do you provide?
Each hinge is tested for torque consistency and cycle life. Standard models ship quickly, and we provide responsive technical and after-sales support.
