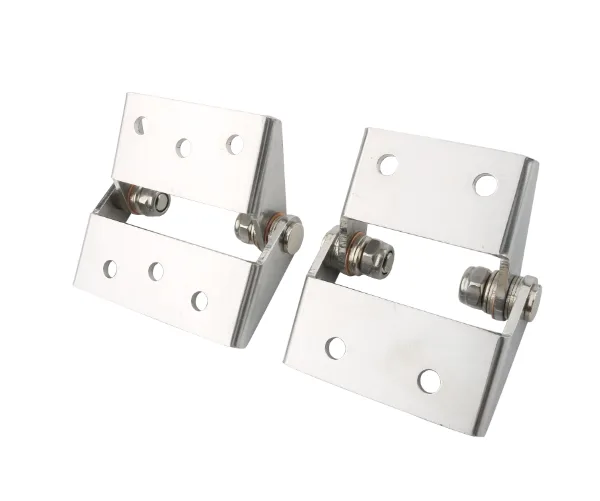

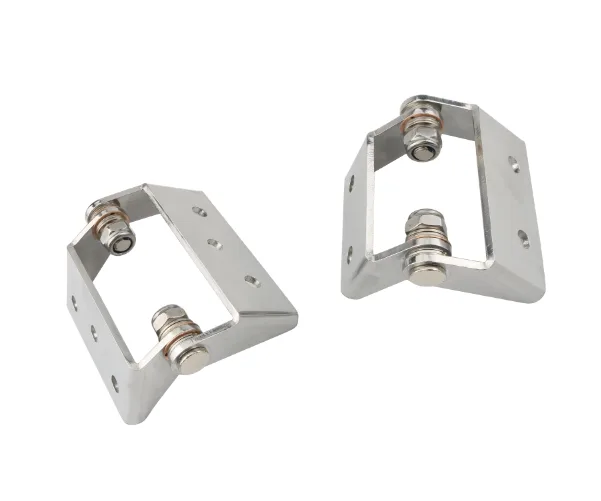

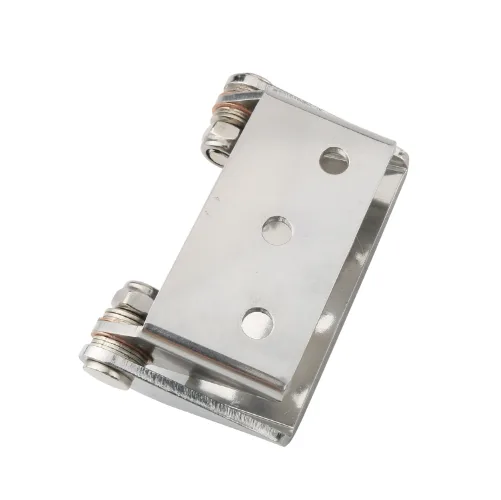

Equipment Cabinet Torque Hinge | Free-Stop | Up to 15 N·m

Equipment Cabinet Torque Hinge features adjustable torque for precise control—up to 15 N·m for the large size and 12 N·m for the small size. It allows smooth motion and free-stop at any angle, making it ideal for machinery, control panels, and industrial equipment requiring stable positioning and long-lasting durability.

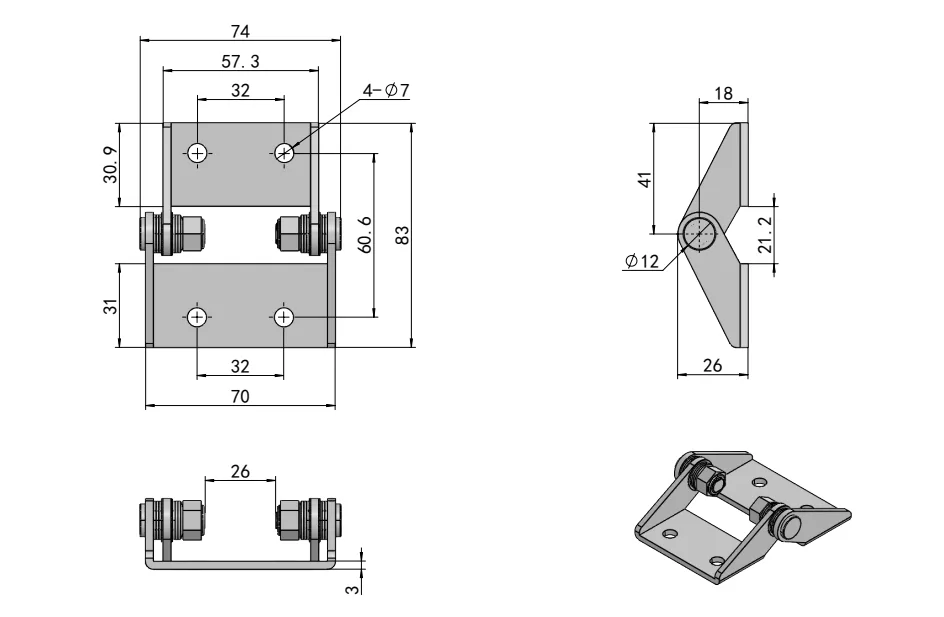

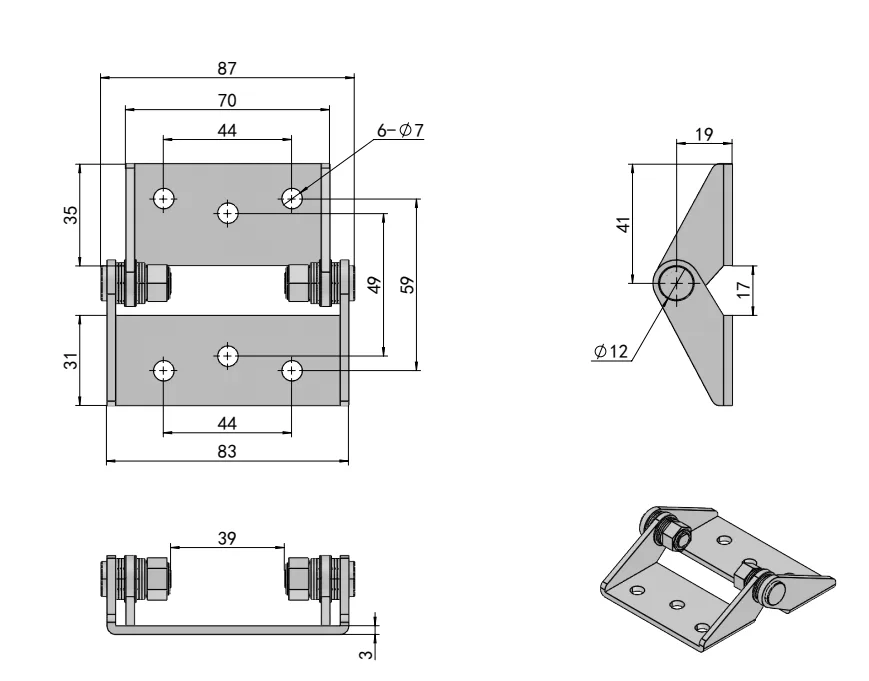

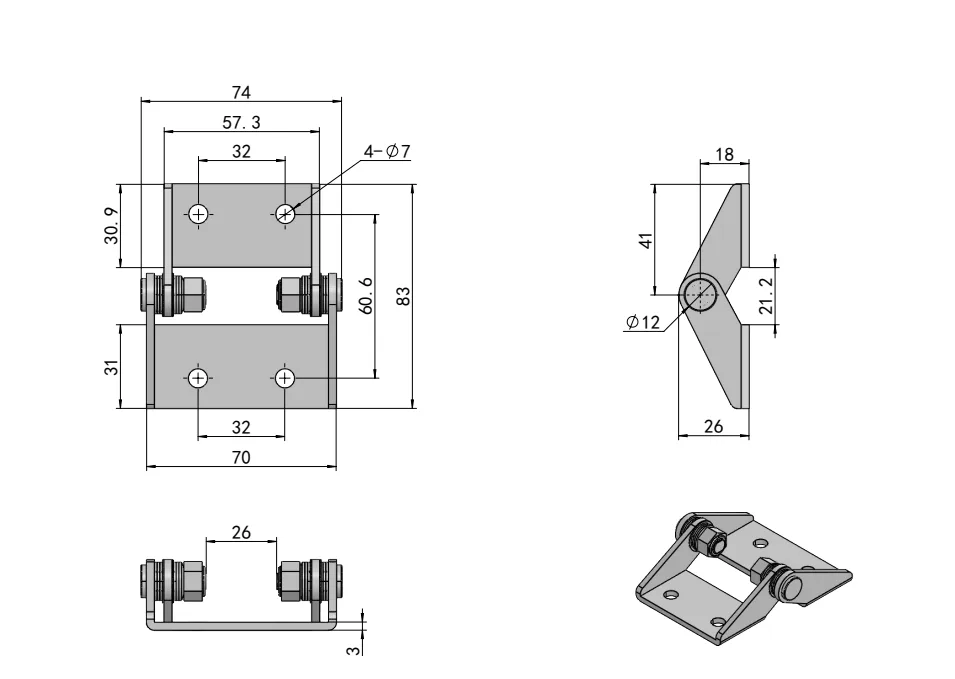

Dimension Drawing

FAQ

1. What makes the adjustable torque feature ideal for industrial applications?

We designed this hinge with adjustable torque to give you precise control—up to 15 N·m for the large size and 12 N·m for the small size. It delivers smooth motion and free-stop at any angle, making it perfect for machinery, control panels, and industrial equipment.

2. Can I use this torque hinge for both light-duty and heavy-duty equipment?

Absolutely. The large size handles up to 15 N·m for heavy machinery, while the small size provides up to 12 N·m for compact enclosures. Both deliver consistent torque, smooth motion, and long-lasting durability.

3. How do you ensure long-lasting durability in industrial environments?

We perform rigorous life-cycle testing on every hinge to guarantee torque consistency and free-stop reliability. High-quality materials and robust surface finishes ensure stable performance even in demanding conditions.

4. Do you offer custom configurations for this adjustable torque hinge?

Yes, we actively support customization. We can modify torque values, mounting patterns, arm lengths, and finishes to match your application. Our engineering team works with you to deliver a tailored solution quickly and accurately.

5. How quickly can I get this hinge for my project?

Standard sizes are in stock and ship within 1–3 business days. For custom orders, we proactively communicate lead times and offer flexible shipping options to keep your project on schedule.
