Adjustable 110° Torque Hinge for Industrial Cabinets | 0.5–2N·m
PRODUCT PARAMETERS
Description
Adjustable 110° Torque Hinge designed for industrial cabinet doors. It offers 110° opening, adjustable torque from 0.5 to 2.0 N·m, and left/right versions for flexible installation and long-lasting performance.

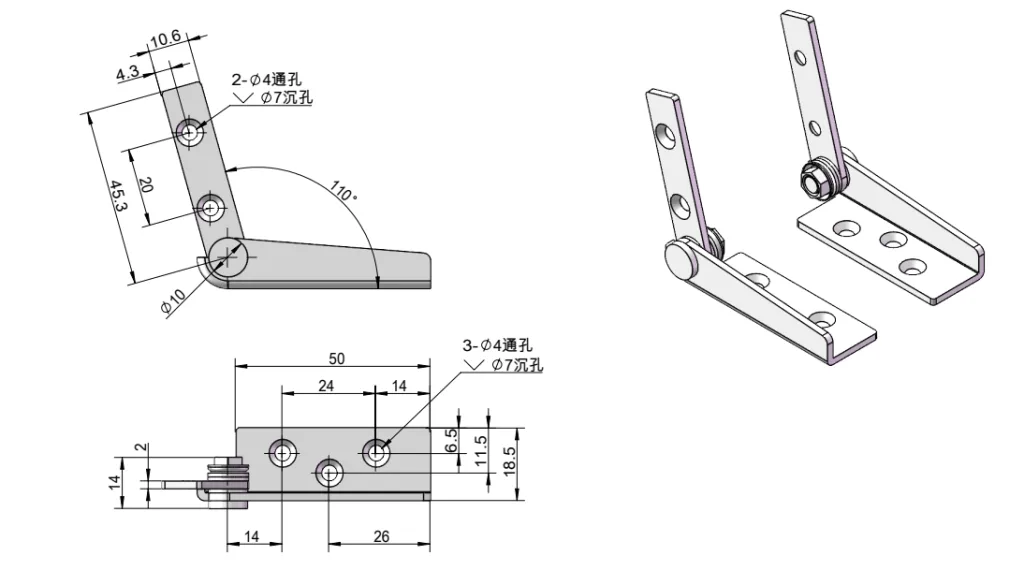

Dimension Drawing
| Code | Item No. | Torque (N·m) | Torque (kgf·cm) | Material | Surface Treatment |
| HG11-060 | HG11-060L | 0.5~2 | 5~20 | SUS304 | Vibratory Finishing |
| HG11-060R |
FAQ
Can you customize the torque range?
Yes. We adjust torque beyond 0.5–2.0 N·m based on door weight and application. Additionally, our R&D team validates performance through testing to ensure stable holding force.
Why use stainless steel for this hinge?
Stainless steel improves corrosion resistance and strength. As a result, it performs reliably in harsh industrial environments and extends service life.
Are left and right versions available?
Yes. We provide both configurations. Therefore, installation is more flexible and efficient for different cabinet designs.
How do you ensure product quality?
Each hinge undergoes torque testing and inspection. Moreover, our factory follows strict quality standards to ensure consistent performance.
What about lead time and after-sales support?
Standard orders ship in 7–15 days. Meanwhile, we offer global shipping and fast after-sales support, including replacements if needed.
