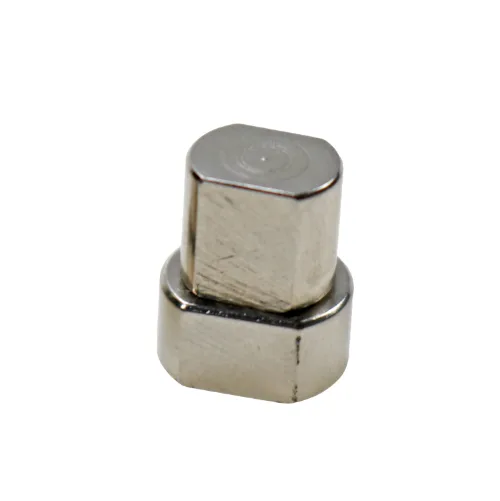

Mini Torque Hinge 0.1–1.0 N·m for Desk Lamps
PRODUCT PARAMETERS
Description
Mini Torque Hinge for Desk Lamps made of durable steel, offering 360° smooth rotation with stable “hold-any-position” performance. Features 10 torque options (0.1–1.0 N·m) for precise control. Compact design fits desk lamps, instruments, and medical devices—reliable, space-saving, and easy to integrate.

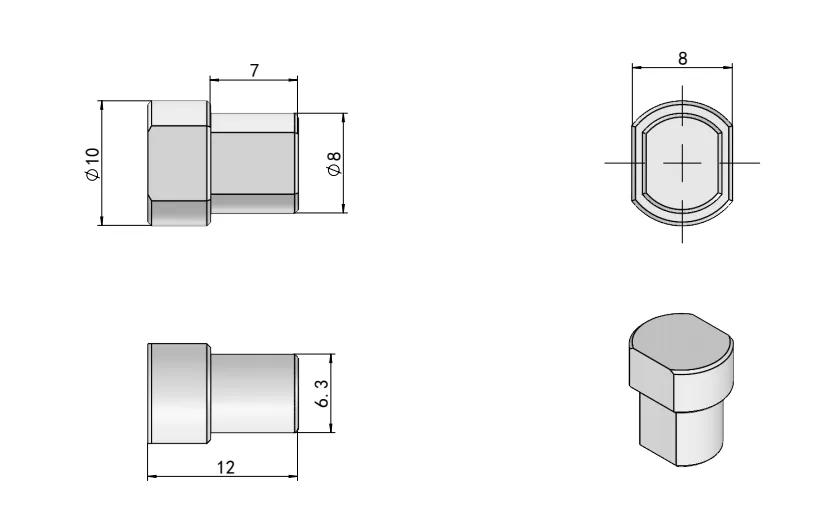

Dimension Drawing
| Code | Part Number | Material | Surface Finish | Torque (N.m) |
| HG11-001-1 | HG11-001-1-1 | Iron | Nickel-Plated | 0.1 |
| HG11-001-1-2 | 0.2 | |||
| HG11-001-1-3 | 0.3 | |||
| HG11-001-1-4 | 0.4 | |||
| HG11-001-1-5 | 0.5 | |||
| HG11-001-1-6 | 0.6 | |||
| HG11-001-1-7 | 0.7 | |||
| HG11-001-1-8 | 0.8 | |||
| HG11-001-1-9 | 0.9 | |||
| HG11-001-1-10 | 1 |
FAQ
What is the torque range and how do I choose the right option?
This hinge offers 10 torque levels from 0.1 to 1.0 N·m. First, evaluate the load weight, arm length, and center of gravity. Then, select a higher torque for heavier or longer components to ensure stable positioning.
Does this hinge support 360° positioning?
Yes, it enables smooth 360° rotation. As a result, users can position lamp arms or equipment at any angle and maintain stability without extra supports.
Can I adjust the torque after installation?
No, each hinge comes with a fixed torque. Therefore, you need to choose the correct specification before installation to match your application requirements.
Where can I use this hinge?
You can use it in desk lamps, precision instruments, and medical devices. In addition, it fits compact equipment that requires reliable positioning and a space-saving design.
What material is used and how does it perform over time?
The hinge uses durable steel for strength and wear resistance. As a result, it handles repeated movement well and maintains consistent performance in demanding applications.
