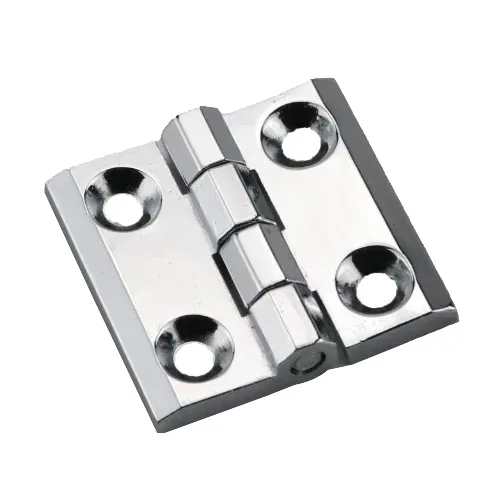

Heavy-Duty Cabinet Hinge (40–50-60mm, Multi-Thickness)
PRODUCT PARAMETERS
Description
Heavy-Duty Cabinet Hinge, available in 40mm, 50mm, and 60mm sizes with 5mm/6mm/8mm thickness options, ensures strong load capacity and smooth, stable motion. Crafted from stainless steel or zinc alloy with brushed, chrome, or black finishes, it’s ideal for industrial cabinets, machinery doors, control panels, and outdoor enclosures.

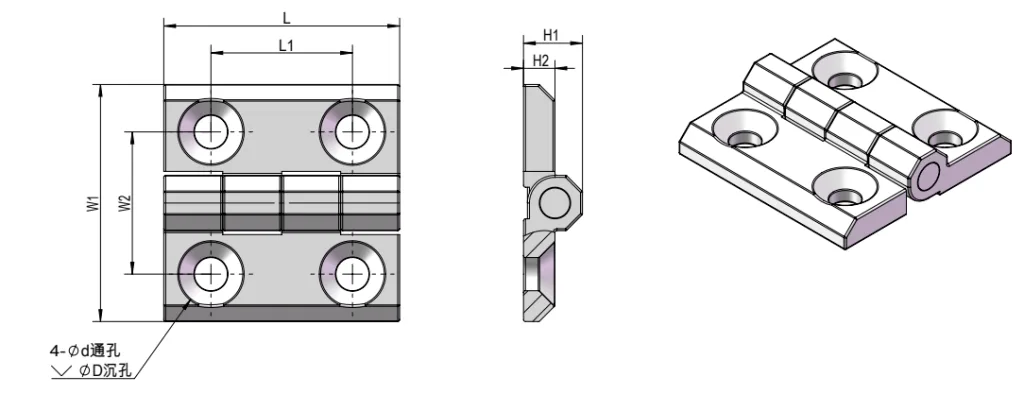

Dimension Drawing
| Code | Item No. | L | L1 | W1 | W2 | H1 | H2 | d | D | Material | Surface Treatment |
| HG02-067-1 | HG02-067-1S | 60 | 36 | 60 | 36 | 15 | 8 | 8.5 | 16.5 | SUS304 | Brushed |
| HG02-067-1-1 | ZDC | Chromed | |||||||||
| HG02-067-1-2 | ZDC | Black | |||||||||
| HG02-067-2 | HG02-067-2S | 50 | 30 | 50 | 30 | 11.5 | 6 | 6.5 | 12.5 | SUS304 | Brushed |
| HG02-067-2-1 | ZDC | Chromed | |||||||||
| HG02-067-2-2 | ZDC | Black | |||||||||
| HG02-067-3 | HG02-067-3S | 40 | 25 | 40 | 25 | 9 | 5 | 5.5 | 9.5 | SUS304 | Brushed |
| HG02-067-3-1 | ZDC | Chromed | |||||||||
| HG02-067-3-2 | ZDC | Black |
FAQ
What applications is this heavy-duty cabinet hinge suitable for?
First, this hinge targets industrial and outdoor environments. For example, it fits industrial cabinets, machinery doors, control panels, and enclosures. As a result, it ensures stable performance under demanding conditions.
How do size and thickness options affect performance?
The hinge is available in 40mm, 50mm, and 60mm sizes with 5mm, 6mm, and 8mm thickness. In general, larger sizes and thicker plates provide higher load capacity and better durability. Therefore, selection should match door weight and usage frequency.
How do stainless steel and zinc alloy versions differ?
Stainless steel offers superior corrosion resistance and suits humid or outdoor environments. Meanwhile, zinc alloy provides strong support with cost efficiency for indoor use. Consequently, material choice should align with environmental conditions.
Do different finishes impact durability?
Yes, finishes such as brushed, chrome, and black improve both appearance and protection. In addition, they enhance resistance to wear and corrosion. As a result, the hinge maintains performance in industrial settings.
What factors should be considered before selecting this hinge?
Before selection, evaluate door weight, hinge size, thickness, and mounting requirements. In addition, consider environmental exposure and usage frequency. By aligning these factors, you ensure proper fit, smooth operation, and long-term reliability.
