Zinc Alloy Free-Stop Torque Hinge 2.0 N·m | 54×54mm

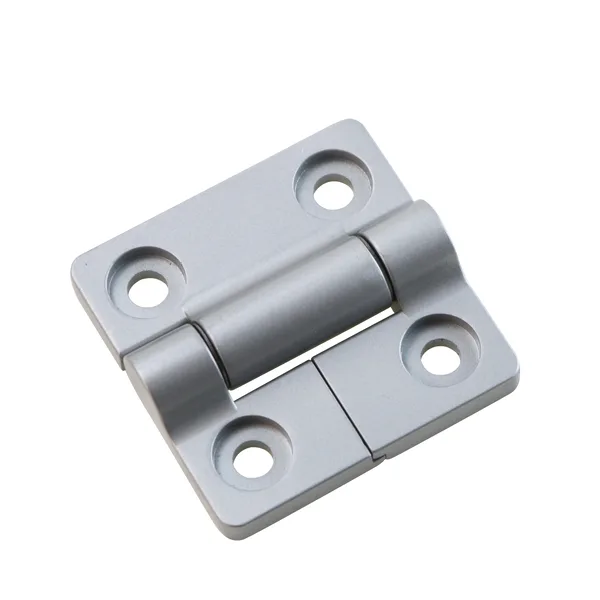

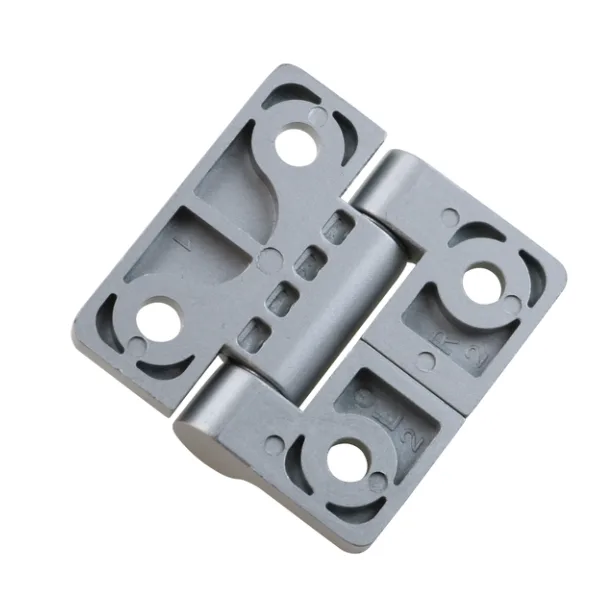

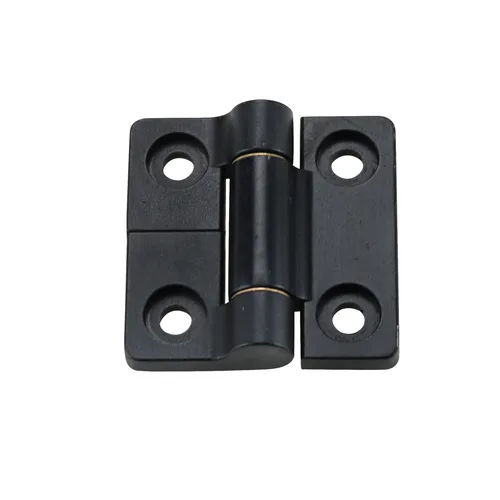

Zinc alloy Free-Stop torque hinge with a 54×54 mm square design and 5.5 mm thickness offers smooth, stable motion and 2.0 N·m free-stop torque. Available in matte silver and black finishes, it features four stepped mounting holes for secure installation—ideal for industrial enclosures, control panels, and equipment doors requiring precise positioning and durable performance.

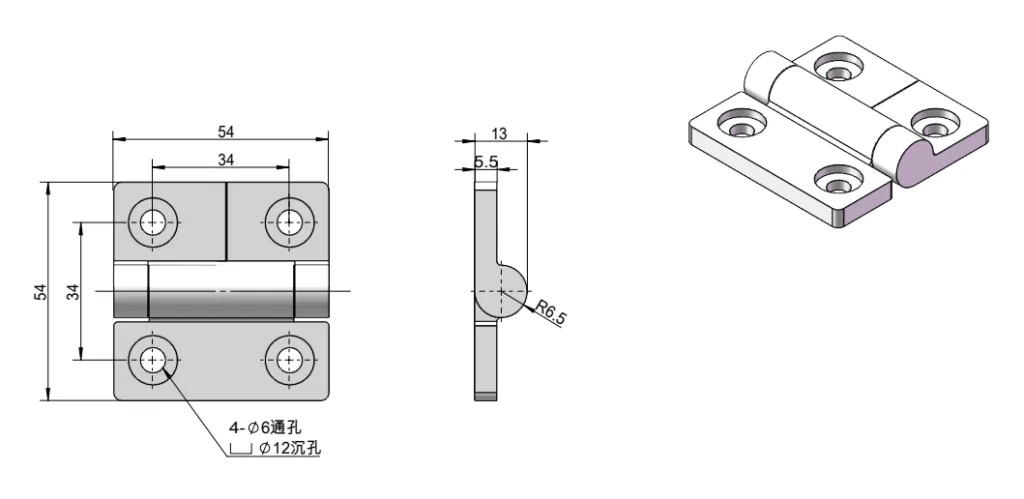

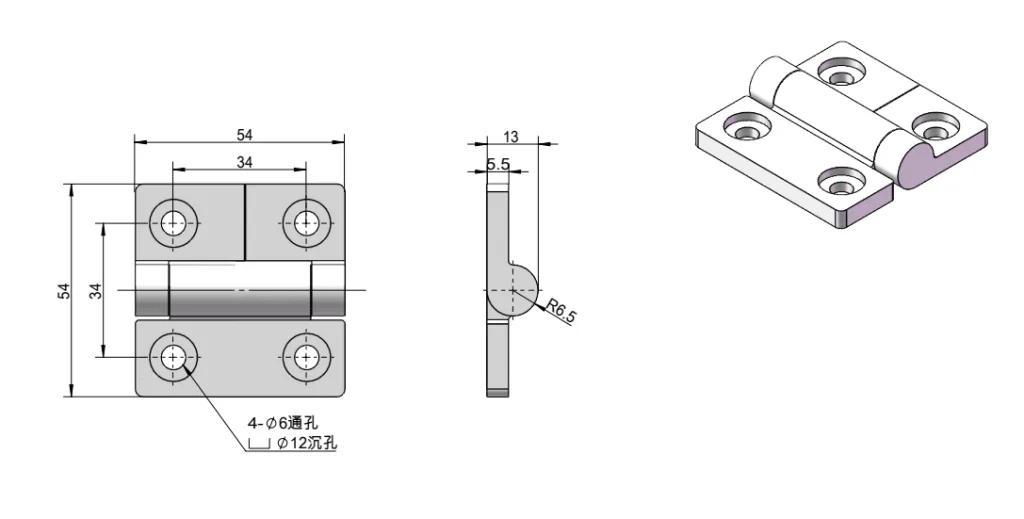

Dimension Drawing

FAQ

1. What makes the zinc alloy Free-Stop torque hinge ideal for industrial enclosures and control panels?

We engineered this hinge to deliver both precision and durability in demanding environments. To begin with, the zinc alloy construction provides exceptional strength and corrosion resistance, ensuring long-lasting performance. Furthermore, the Free-Stop functionality allows for smooth, stable motion with a consistent 2.0 N·m torque rating, enabling precise positioning at any angle. Whether you are equipping industrial enclosures, control panels, or equipment doors, we designed this hinge to hold its position securely without drifting—giving you reliable control in every application.

2. Can I use this Free-Stop torque hinge for applications requiring a compact, low-profile design?

Absolutely. We prioritized a space-saving footprint without compromising performance. Specifically, the 54×54 mm square design with a slim 5.5 mm thickness allows for seamless integration into tight spaces where bulky hardware simply won’t fit. Additionally, we offer this hinge in both matte silver and black finishes, so you can match the aesthetic of your equipment while benefiting from the same smooth, stable motion and precise positioning. In short, we made this hinge to fit where others cannot—while still delivering industrial-grade reliability.

3. How does the Free-Stop feature improve usability compared to standard torque hinges?

We designed the Free-Stop mechanism to give you complete control with zero hassle. Unlike standard hinges that may require external locking components or constant manual adjustment, our Free-Stop technology maintains a steady 2.0 N·m torque throughout the entire range of motion. As a result, you can position equipment doors, control panels, or flip covers exactly where you need them, and they will stay firmly in place. Consequently, we eliminate the need for secondary latches or supports—streamlining your design and enhancing user convenience.

4. How does the four stepped mounting holes design simplify installation?

We engineered the mounting interface with your assembly efficiency in mind. To elaborate, the four stepped mounting holes provide built-in alignment and secure fastening, reducing installation time and minimizing the risk of misalignment. Moreover, this thoughtful design ensures consistent clamping force, which translates to reliable torque performance right out of the box. Whether you are integrating into new equipment or retrofitting existing industrial enclosures, we made sure the installation process is straightforward, repeatable, and dependable.

5. What finish options are available, and how do they support durability in harsh environments?

We offer both matte silver and black finishes to give you flexibility without sacrificing protection. Each finish is applied to the zinc alloy substrate with corrosion resistance in mind, ensuring that the hinge withstands exposure to moisture, dust, and industrial conditions. Furthermore, the matte surface treatment helps resist visible wear and fingerprints—keeping your control panels and equipment doors looking professional over the long term. In other words, we combined aesthetic versatility with rugged durability, so you can choose the look that fits your application while trusting the performance to last.
