What Is a Torque Hinge? The Engineer’s Complete Reference

A torque hinge is a mechanical joint that provides controlled rotational resistance, allowing a panel, lid, screen, or door to be held in position at any angle without a separate latch or stay. Unlike a standard hinge that swings freely, a torque hinge incorporates internal friction components that resist rotation throughout the full range of movement.

The term covers several related product types — constant torque hinges, adjustable torque hinges, friction hinges, and positioning hinges — each engineered for different levels of holding force and adjustability. What they share is the ability to hold a load at a set angle, hands-free.

How a Torque Hinge Holds Position

The holding force in a torque hinge comes from friction between internal components, typically spring-loaded friction discs, cam surfaces, or a combination of both. When a panel rotates, these components slide against each other under controlled pressure, generating consistent resistance throughout the range of motion.

The result is a hinge that moves smoothly but does not drift. Set a medical monitor arm to 45°, and it stays at 45°. Adjust an industrial control panel to 90°, and it holds without a prop rod. This free-stop behaviour is the defining characteristic of all torque hinge types.

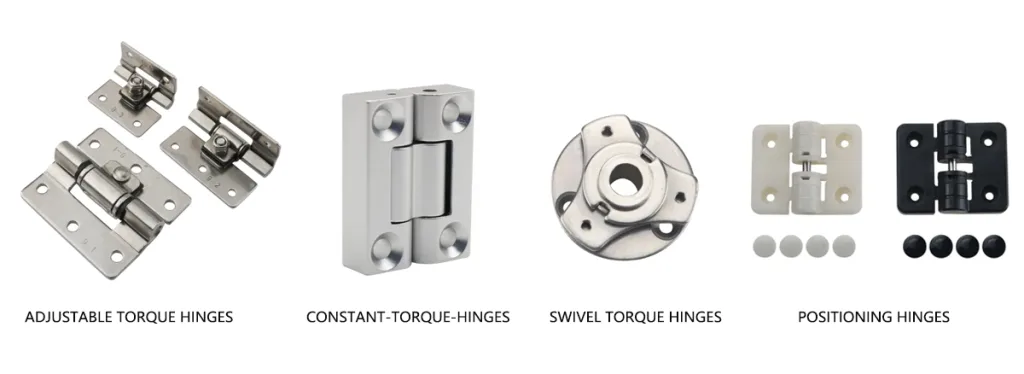

Torque Hinge Types: What the Categories Mean

The four main types differ in how their friction mechanism is designed and how much control the user has over the holding force:

Mini and compact torque hinges follow the same principles as the types above but are sized for small enclosures, electronics, and portable instruments where standard hinge dimensions are impractical.

Torque Hinge vs. Standard Hinge: The Core Difference

A standard pin-and-barrel hinge has one job: allow rotation. It applies no resistance and holds no position. Torque hinges are specified when a panel or lid must remain at a chosen angle under its own weight, without external support.

When to Specify a Torque Hinge

A torque hinge is the appropriate choice when one or more of the following conditions apply:

• The panel or lid must be held open at a specific angle without a separate prop or stay
• The application involves frequent repositioning where a latch would slow operation
• Hands-free positioning is needed — for example, during a medical procedure or machine operation
• The load will vary, and a fixed mechanical stop is not flexible enough
• Panel size or weight makes a gas spring impractical due to space constraints

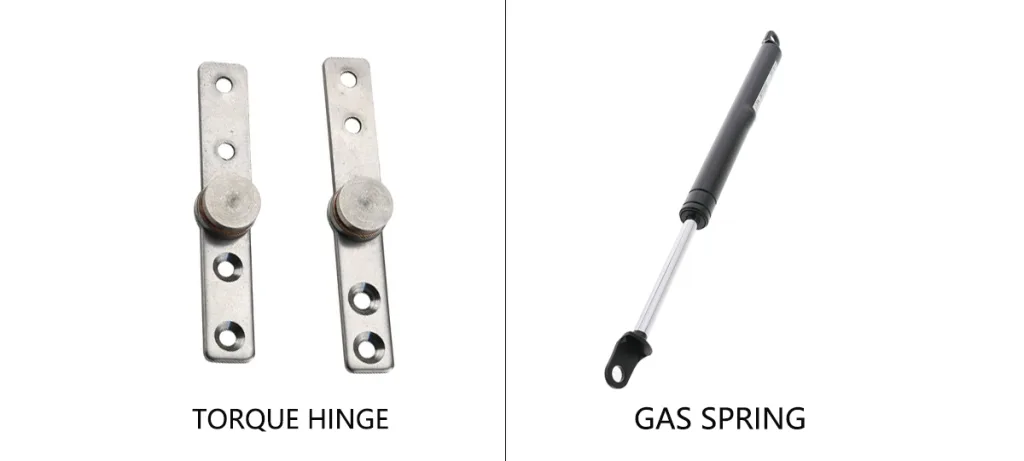

Torque Hinge vs. Gas Spring: A Practical Comparison

Both gas springs and torque hinges hold panels open, but they operate differently and suit different applications. The choice comes down to load weight, available space, cycle life, and environmental conditions.

For panels under approximately 15 kg that require precise multi-angle positioning in a compact installation, torque hinges are generally the more practical solution. For very heavy hatches or lids where counterbalancing is the priority, gas springs are more appropriate.

Material and Construction: What to Look For

Housing Materials

The hinge body material determines corrosion resistance, load capacity, and suitability for specific environments:

• 304 Stainless Steel — standard choice for most industrial and outdoor applications
• 316 Stainless Steel — required for marine, chemical, or food processing environments where chloride exposure is a concern
• Zinc Alloy — lower cost, suitable for indoor or light-duty applications; less suitable for corrosive environments
• Aluminium — lightweight option for electronics and portable equipment

Internal Friction Components

The internal mechanism determines torque consistency and cycle life. High-quality torque hinges use precisely machined cam surfaces or stacked friction discs with calibrated spring pressure. The friction surfaces are typically stainless steel or hardened steel running against a polymer or bronze bushing, lubricated with a grease formulated for the rated temperature range.

The quality of internal components is the primary factor separating long-service-life hinges from those that lose torque after a few thousand cycles. When evaluating suppliers, request documented cycle life test data and the test standard used.

Torque Hinge Applications by Industry

Medical and Laboratory Equipment

Surgical monitor arms, specimen holders, and instrument covers require hinges that hold their position precisely without drift during procedures. Constant torque models are standard in this sector. Stainless steel construction is required where the hinge will be exposed to cleaning agents or sterilisation processes.

Industrial Automation and Control

Access panels on control cabinets, machine guards, and operator displays must open to a set angle and stay there while the operator works. In vibrating environments, the friction mechanism also prevents panels from drifting under vibration — an advantage over gas springs, which can oscillate.

Telecommunications and Electronics

Rack-mounted panels, test equipment covers, and display screens in telecom equipment use constant torque hinges where consistent positioning across temperature cycles is required. The enclosed environments typical in telecom equipment also suit compact torque hinge profiles.

Transportation and Marine

Vehicle storage compartments, marine hatches, and railway equipment access panels operate in high-vibration and corrosive environments. Stainless steel spring-loaded hinges with sealed mechanisms are specified for these applications. Marine environments require 316 stainless steel throughout, including fasteners.

Common Failure Modes and How to Prevent Them

Frequently Asked Questions

What is the difference between a torque hinge and a friction hinge?

The terms are often used interchangeably. Technically, ‘friction hinge’ refers to any hinge that uses friction to resist rotation, while ‘torque hinge’ specifically refers to hinges designed to a calibrated torque specification. In practice, when suppliers use either term, they mean the same category of product.

Can torque hinges be used outdoors?

Yes, provided the correct material is specified. Standard zinc-plated steel torque hinges are not suitable for sustained outdoor or wet environments. For outdoor use, specify 304 stainless steel minimum; for marine or chemical exposure, specify 316 stainless steel with sealed internal mechanisms.

How do I know what torque value I need?

The required torque is calculated from the panel weight and the distance from the hinge pivot to the panel’s centre of mass. A detailed step-by-step calculation guide, including safety factor recommendations by application type, is covered in our separate article on torque values for engineers.

What is the expected service life of a torque hinge?

Service life is rated in cycles (one open-close movement equals one cycle). Consumer-grade torque hinges are typically rated for 20,000–30,000 cycles. Industrial-grade models are commonly rated at 50,000–100,000 cycles or more. Specifying a hinge with a cycle life rating appropriate for your application’s expected usage frequency is the most reliable way to avoid premature failure.

Is it possible to adjust the torque after installation?

Only adjustable torque hinge models allow post-installation adjustment, typically via an external set screw. Constant torque hinges and most detent hinges are factory-set and not field-adjustable. If your application requires the ability to change holding force after installation, specify an adjustable model from the outset.
