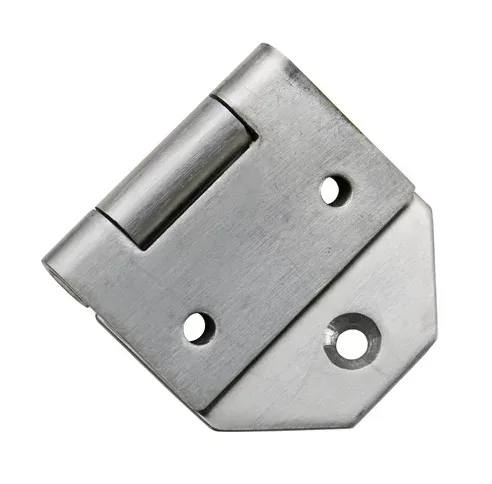

Heavy-Duty Equipment Hinges for Industrial Panels
PRODUCT PARAMETERS
Description
Heavy-Duty Hinges are specifically engineered for industrial equipment, transportation vehicles, building security systems, and cold chain medical applications. Available in two sizes—small/medium (100×65mm) and large (139×105mm)—they accommodate medium cabinet doors and large heavy-duty equipment panels respectively. Featuring high load-bearing capacity and exceptional durability, these hinges meet the demands of diverse high-stress applications.

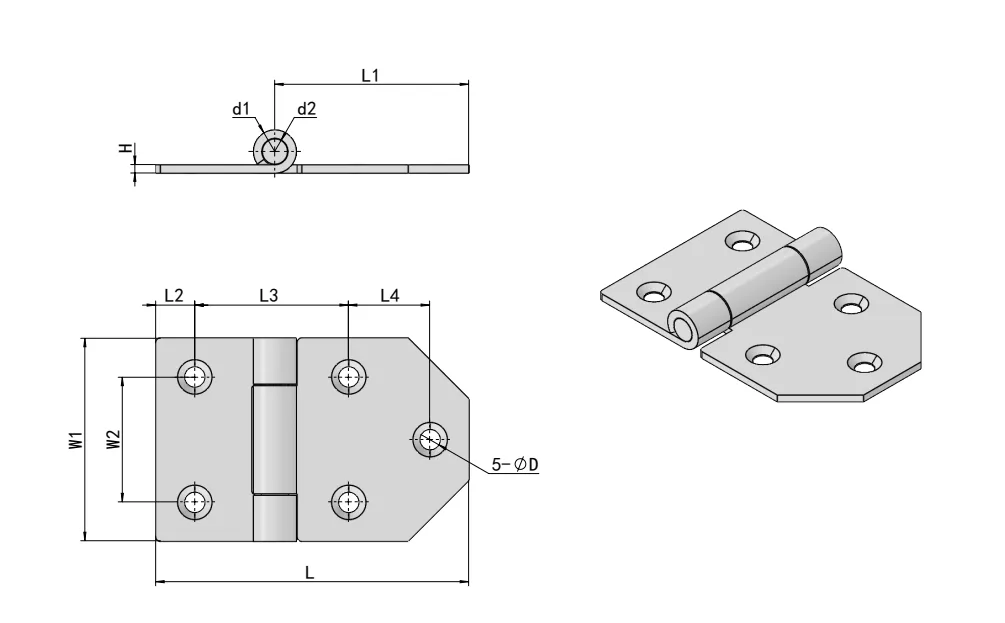

Dimension Drawing
| Code | Part No. | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | W1 (mm) | W2 (mm) | D (mm) | d1 (mm) | d2 (mm) | H (mm) | Material | Finish |
| HG02-074 | HG02-074-1 | 100 | 62 | 12 | 49 | 27 | 65 | 40 | 6.5 | 14 | 8 | 3 | SUS304 | Brushed |
| HG02-074-2 | 138 | 88 | 13 | 80 | 32 | 105 | 70 | 8.5 | 16 | 10 | 3 |
FAQ
What applications are these heavy-duty equipment hinges designed for?
These heavy-duty equipment hinges work well for industrial equipment, transportation vehicles, building security systems, and cold chain medical equipment. Because they provide high load-bearing capacity and long-term durability, they perform reliably in demanding and high-stress environments. As a result, many manufacturers use them in heavy industrial and commercial systems.
Why are multiple hinge sizes important for industrial applications?
Different equipment requires different mounting dimensions and load capacities. Therefore, the 100×65mm size fits medium cabinet doors, while the larger 139×105mm version supports oversized equipment panels and heavy-duty access doors more effectively. In this way, users can match the hinge size to specific operational requirements.
Can these hinges handle frequent industrial use?
Yes. These hinges support repeated opening and closing in demanding industrial environments. Moreover, their reinforced structure helps maintain stable door alignment during long-term operation. Consequently, they reduce wear issues and improve equipment reliability over time.
Are these hinges suitable for transportation and mobile equipment?
Yes. Transportation systems and mobile equipment often generate vibration and constant movement. Because of their durable construction and strong load support, these hinges help maintain secure and stable door operation in trucks, trailers, and transport compartments.
What should industrial buyers consider when selecting heavy-duty equipment hinges?
Before selecting a hinge, buyers should evaluate door size, load requirements, operating frequency, and environmental conditions. In addition, choosing the correct hinge size can improve operational safety and long-term durability. Therefore, proper hinge selection helps reduce maintenance costs and supports reliable equipment performance.
