Concealed Removable Pin Hinge with Stud Mount
PRODUCT PARAMETERS
Description
Concealed Removable Pin Hinge (total length 68mm) engineered for industrial-grade durability and corrosion resistance. Its stud mounting structure ensures a more secure and tidy installation, while the tool-free removal feature allows quick detachment of door panels for maintenance, cleaning, and transportation. Featuring a compact design suitable for medium-sized panels, this hinge is an ideal choice for food processing equipment, pharmaceutical machinery, laboratory cabinets, automation enclosures, and outdoor control boxes.

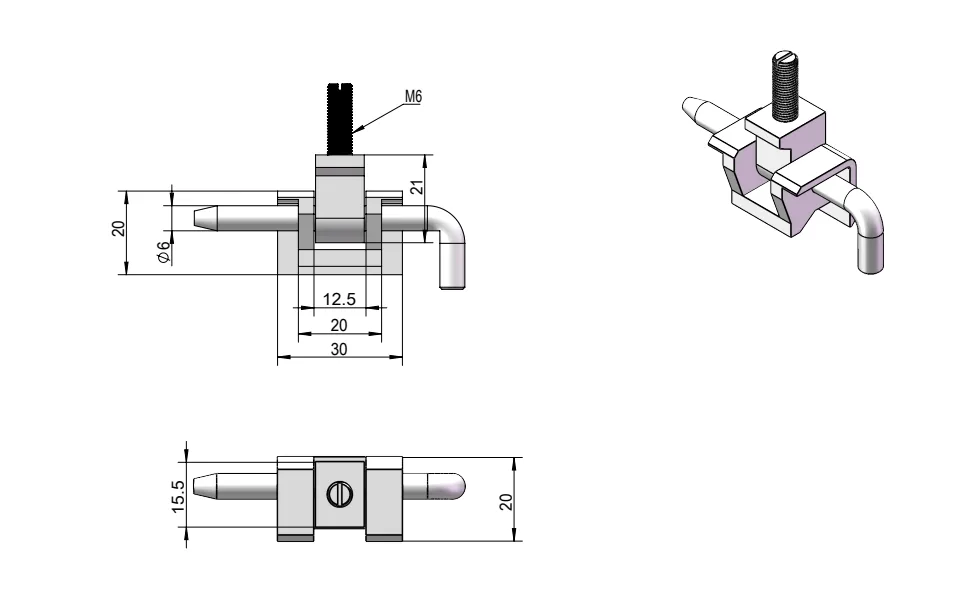

Dimension Drawing
| Code | Item No. | Material | Surface Treatment |
| HG02-090 | HG02-090 | SUS304 | Brushed |
FAQ
What industries commonly use concealed removable pin hinges?
Concealed removable pin hinges are widely used in food processing equipment, pharmaceutical machinery, laboratory cabinets, automation systems, and outdoor electrical enclosures. Because the hinge supports quick panel removal, it helps simplify cleaning, maintenance, and equipment servicing.
What are the advantages of a removable pin hinge design?
A removable pin design allows operators to detach door panels quickly without special tools. As a result, technicians can reduce downtime during maintenance, transportation, or component replacement. In addition, the concealed structure keeps the equipment exterior clean and professional.
Does this hinge provide good corrosion resistance?
Yes. Manufacturers produce the hinge with corrosion-resistant materials to support humid, outdoor, or washdown environments. Therefore, it performs reliably in industrial applications that require long-term durability and frequent cleaning.
Why is the stud mounting structure important?
The stud mounting structure creates a more secure and stable installation compared with standard screw mounting. At the same time, it improves alignment and delivers a cleaner equipment appearance, especially for industrial cabinets and enclosure panels.
Is this concealed hinge suitable for medium-sized access panels?
Yes. The compact 68mm design fits medium-sized doors and access panels while maintaining stable support and smooth operation. Consequently, it works well in control boxes, machine covers, and equipment cabinets where space efficiency matters.
